LRS Series is a single-output enclosed type power supply with 30mm of low profile design.

 In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation

 of LRS-50 that the whole series operates from -30°C through 70°C under air convection without a fan.

 Delivering an extremely low no load power consumption (less than 0.2W), it allows the end system to

 easily meet the worldwide energy requirement. LRS-50 has the complete protection functions and 5G anti­

 vibration capability; it is complied with the international safety regulations such as TUV EN62368-1

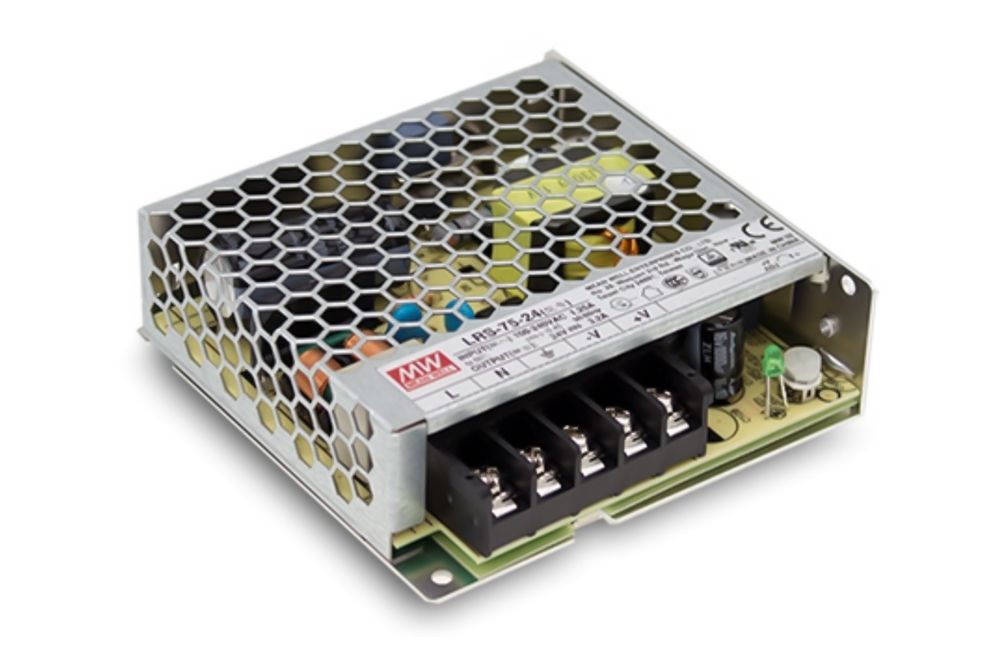

Meanwell LRS 75W 24V Single-output Enclosed Power Supply Features:

* Universal AC input / Full range
* Withstand 300VAC surge input for 5 second
* No load power consumption<0.2W
* Miniature size and 1U low profile
* High operating temperature up to 70℃
* Protections: Short circuit / Overload / Over voltage
* Cooling by free air convection
* Compliance to IEC/EN 60335-1 (PD3) and IEC/EN61558-1, -2-16 for household appliances
* Operating altitude up to 5000 meters (Note.8)
* Withstand 5G vibration test
* High efficiency, long life and high reliability
* LED indicator for power on
* Over voltage category III
* 100% full load burn-in test
* 3 years warranty
