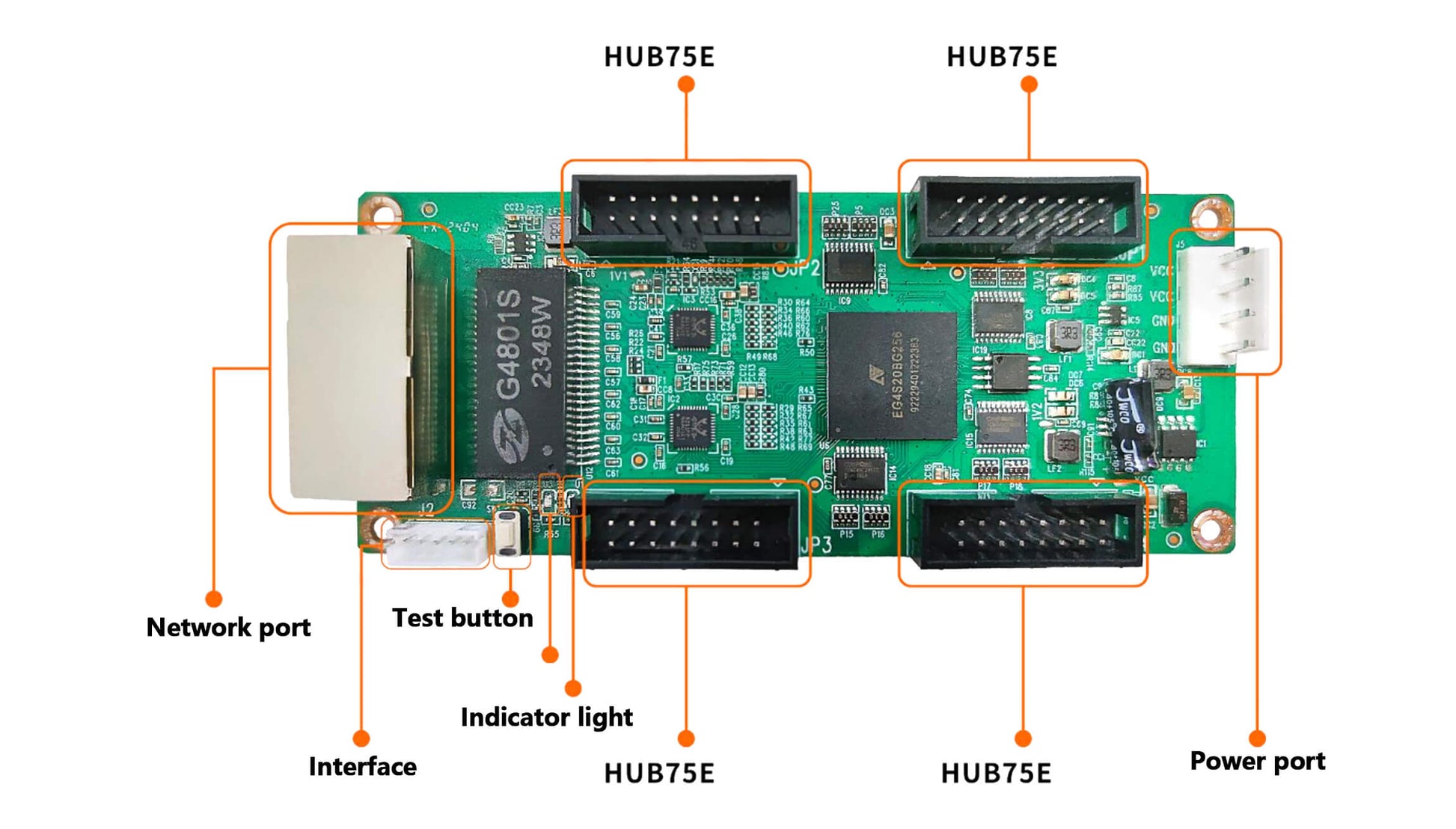

A704 is a standard receiving card independently developed by Mooncell. It uses 4 standard HUB75E interfaces and supports up to 8 groups of RGB parallel data. It can load up to 512*256 pixels. It has powerful processing capabilities, ultra-stable performance and ultra-high cost performance.

Function

Display effect
18Bit+: Enabling 18Bit+ on the software can increase the grayscale of the LED display by 4 times, effectively deal with the grayscale loss problem caused by the reduction of brightness of the LED display, solve the problem of pitting caused by low gray correction, and make the low gray image more delicate
HDR: Supports two video source standards, HDR10 and HLG; with large-load independent master control, input HDR10 standard or HLG standard video source, can achieve a larger brightness dynamic range and color space, greatly enhance the display quality, make the picture more delicate and realistic
Operability
Support receiving card serial number detection: with the network port debugging function in the AutoLED software, the receiving card number and network port information will be displayed on the target box, and the user can know the location serial number and connection line of the receiving card.
Hardware stability
Network cable loop backup: The network port is connected through the main and standby network cable loop to increase the reliability of the receiving card series connection. In the main and standby series lines, when one of them fails, the other can ensure the normal display of the screen
Intelligent software
Supports reading back the configuration parameters of the receiving card: the current configuration parameters of the receiving card can be read back on AutoLED

Specification Download:
Mooncell A704 Receiver Card Specification(Chinese)
