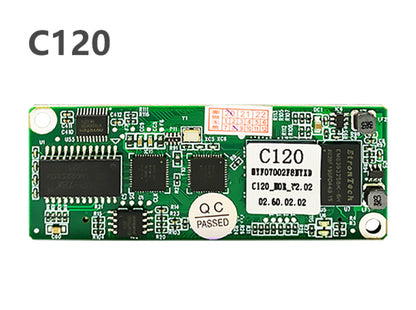

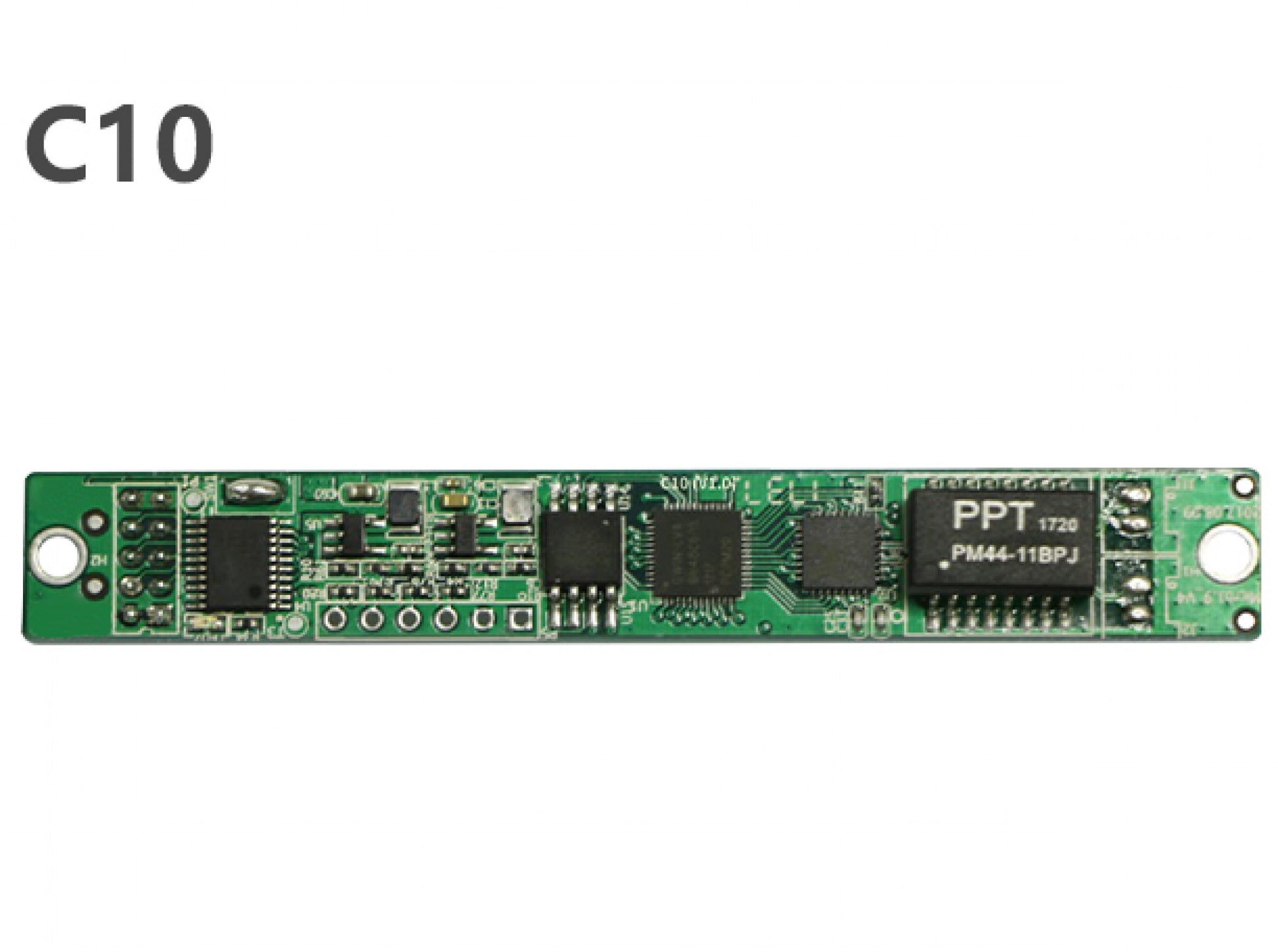

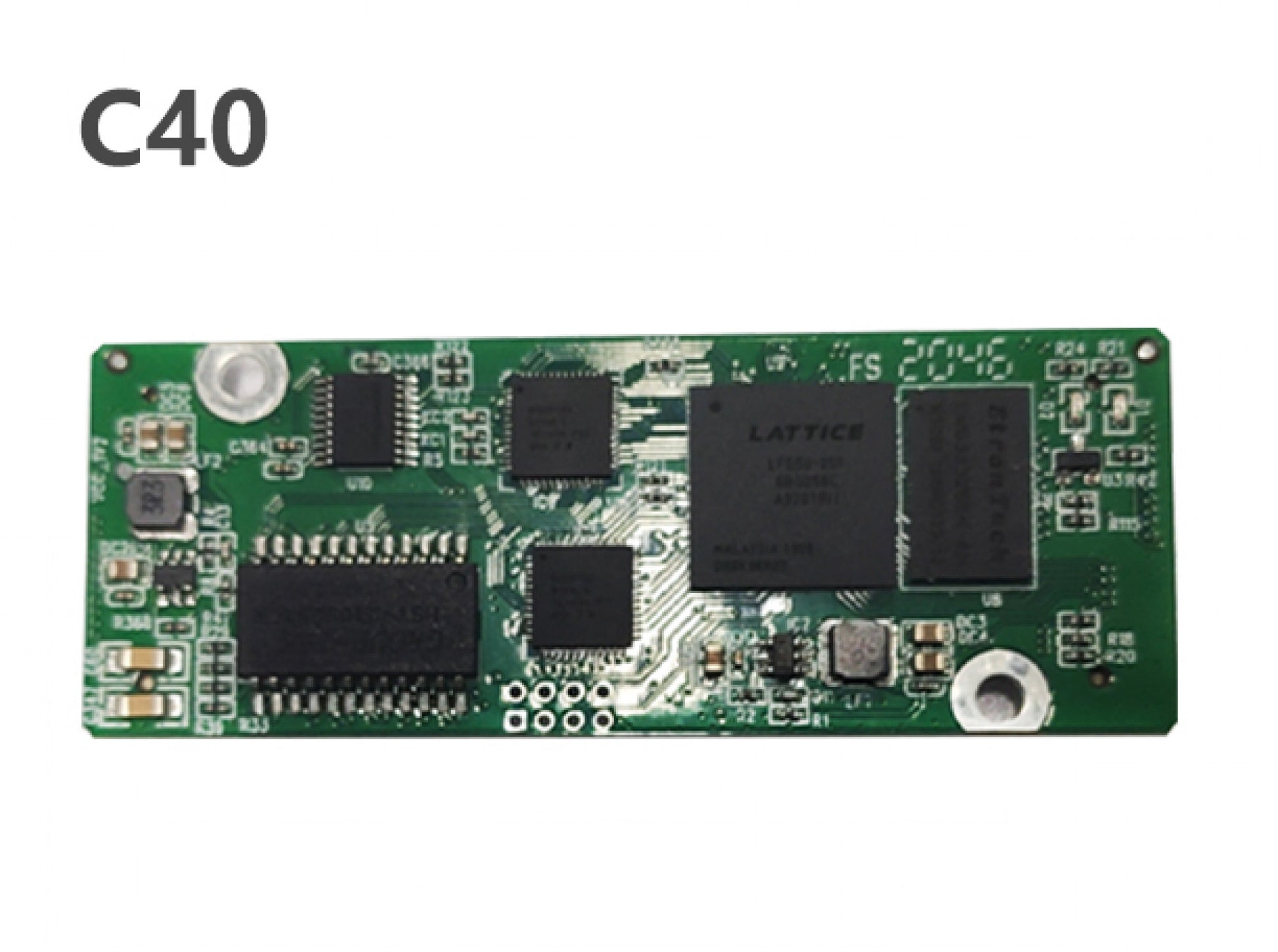

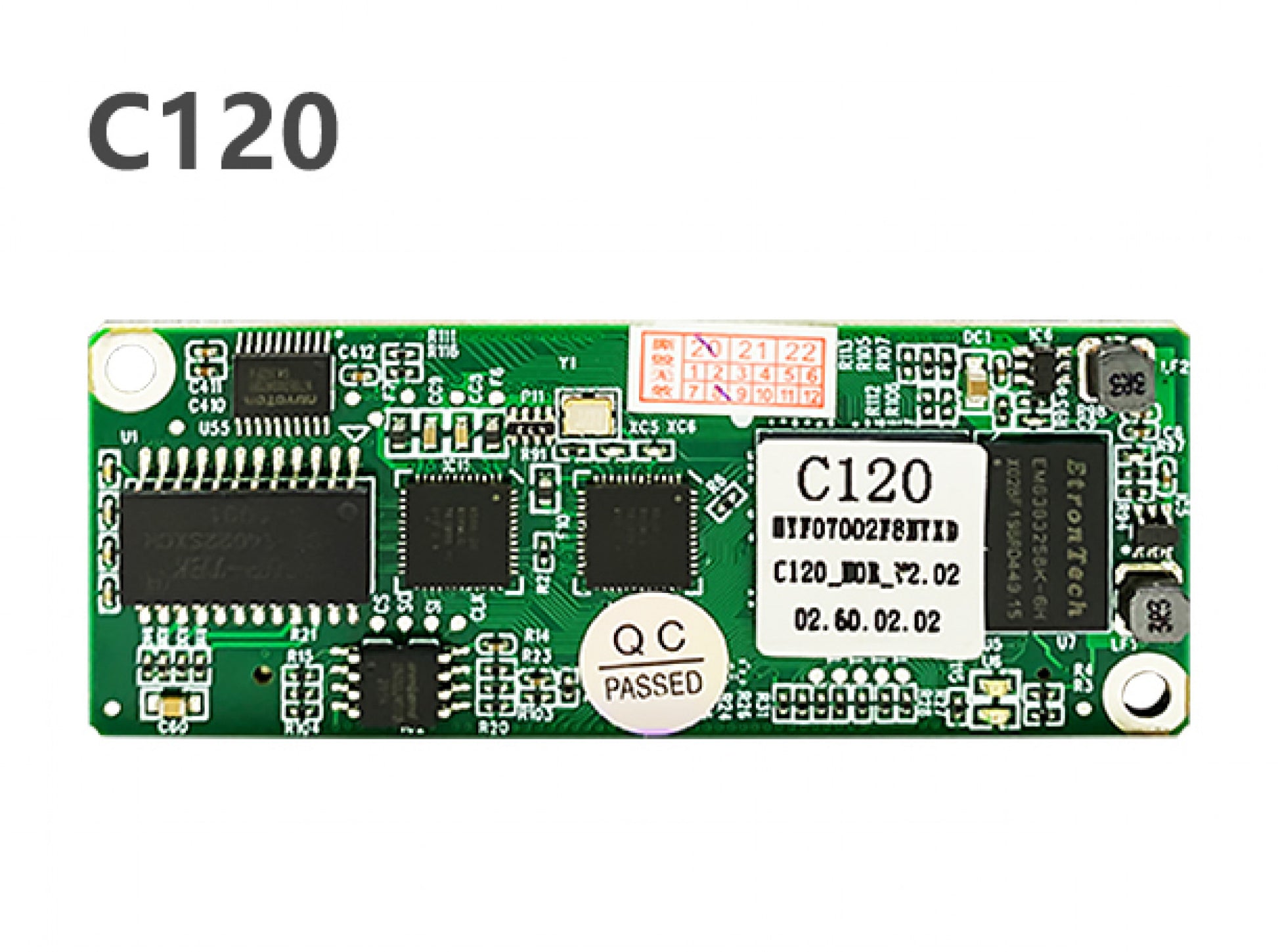

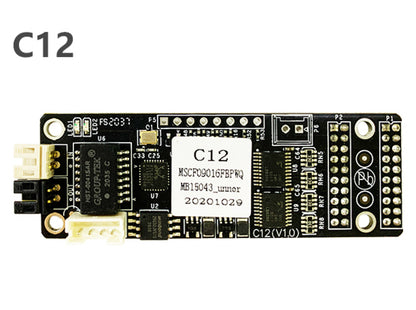

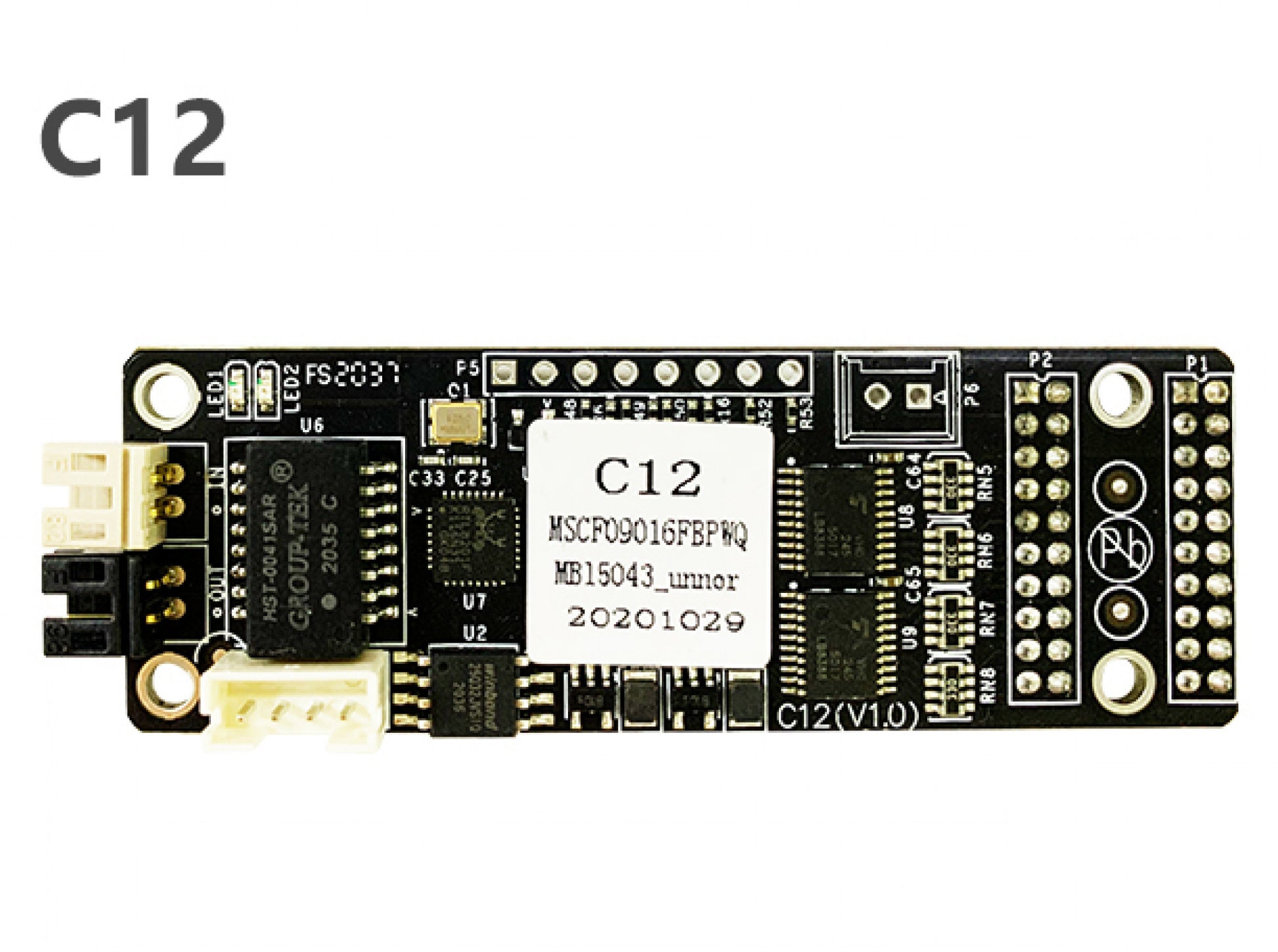

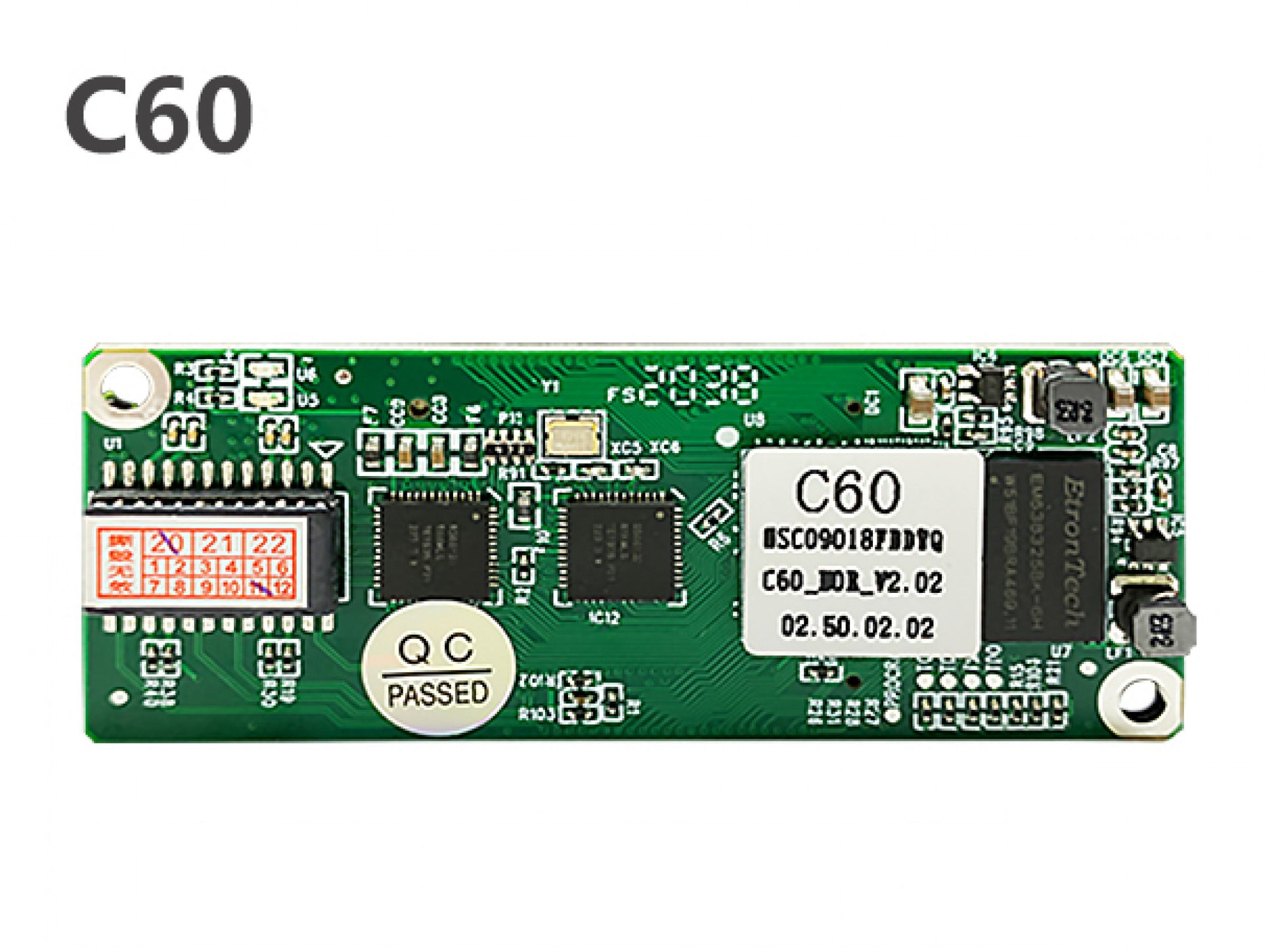

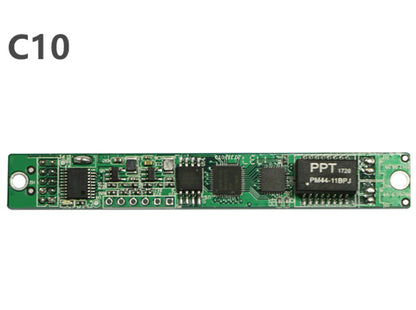

Mooncell C10/C12/C40/C60/C120 FPGA  LED receiving card series features:

1. Adopt small size and thickness to save space for the increasingly narrow box space and light bar space;

2. The board output adopts universal 2.0mm spacing connector interface, which has high stability and reliability;

3. Using a new generation of image processing core, the display effect has been greatly improved;

4. Powerful LED driver chip compatibility, supporting all conventional chip drivers;

5. Support security upgrade;

6. Support any offset of the position of a single card, and the rotation of the display content of a single card to realize a special-shaped screen;

7. Support cabinet parameter read-back;

8. Reduce the number of cables and connectors, and simplify the structural design of the LED display. Signal transmission only requires 2-core Category 5e twisted pair wires, which allows the display signal and power wiring to be integrated into one design, and the peripheral cascade connection line is changed from the traditional two-in-two-out to one-in-one-out;

9. The integrated network transformer simplifies the design and improves the electromagnetic compatibility, which helps the user's products pass the EMC certification smoothly;

Specifications Download
Mooncell C10 LED receiving card Specifications
Mooncell C12 LED receiving card Specifications
Mooncell C40 LED receiving card Specifications
Mooncell C60 LED receiving card Specifications
Mooncell C120 LED receiving card Specifications
