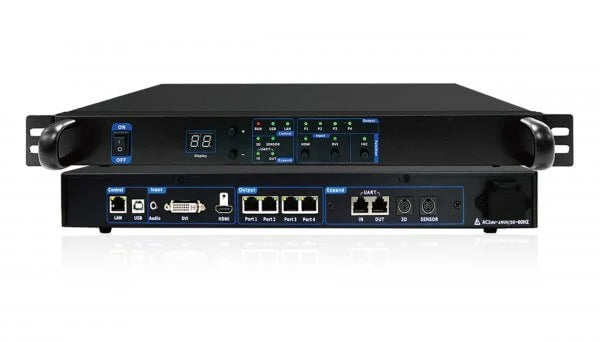

MTB400E is the large sending enclosure produced by Mooncell. It supports 1x DVI & 1x HDMI video signal input and comes with 4 network port outputs. The maximum loading capacity can reach up to 2.6 million pixels.

Function

 1x DVI & 1x HDMI video signal input, synchronous transmission via the network cable.
 1x AUDIO input,synchronous transmission via the network cable.
 4x gigabytes Ethernet output ports,it supports the arbitrary splicing.
 1x USB port communication, multiple sending cards could be cascading connected to one computer.
 It supports Ethernet Port Loop Dual Backup, Dual Master Controller Backup.
 It supports to have multiple preset resolutions:1024×768 、 1280×1024 、 1366×768 、1600×1200 、1920×1080 、2048×1152 、2560×960 and the user defined resolution is supported.
 It is compatible with 30HZ,50HZ,60HZ,120HZ and other Frame Rate Input.
 It supports the upper computer software to detect the operating parameters and status of the sending card.
 It supports to read the configurations back from where it was stored ( configuration read back )
 It supports to detect the error rates of the gigabyte network.

Specification Download:
Mooncell MTB400E Master Controller Series LED Video Processor Specification
