Description
The MTB800E has a variety of video signal receiving capabilities, as well as ultra-high definition full 4K × 2K@60Hz image processing capabilities and transmission capabilities; the processed video can be sent to the LED display through the network port and optical fiber port; and it has powerful processing capabilities. It can effectively improve on-load utilization. It has strong processing power, ultra-stable performance and ultra-high cost performance.
Function

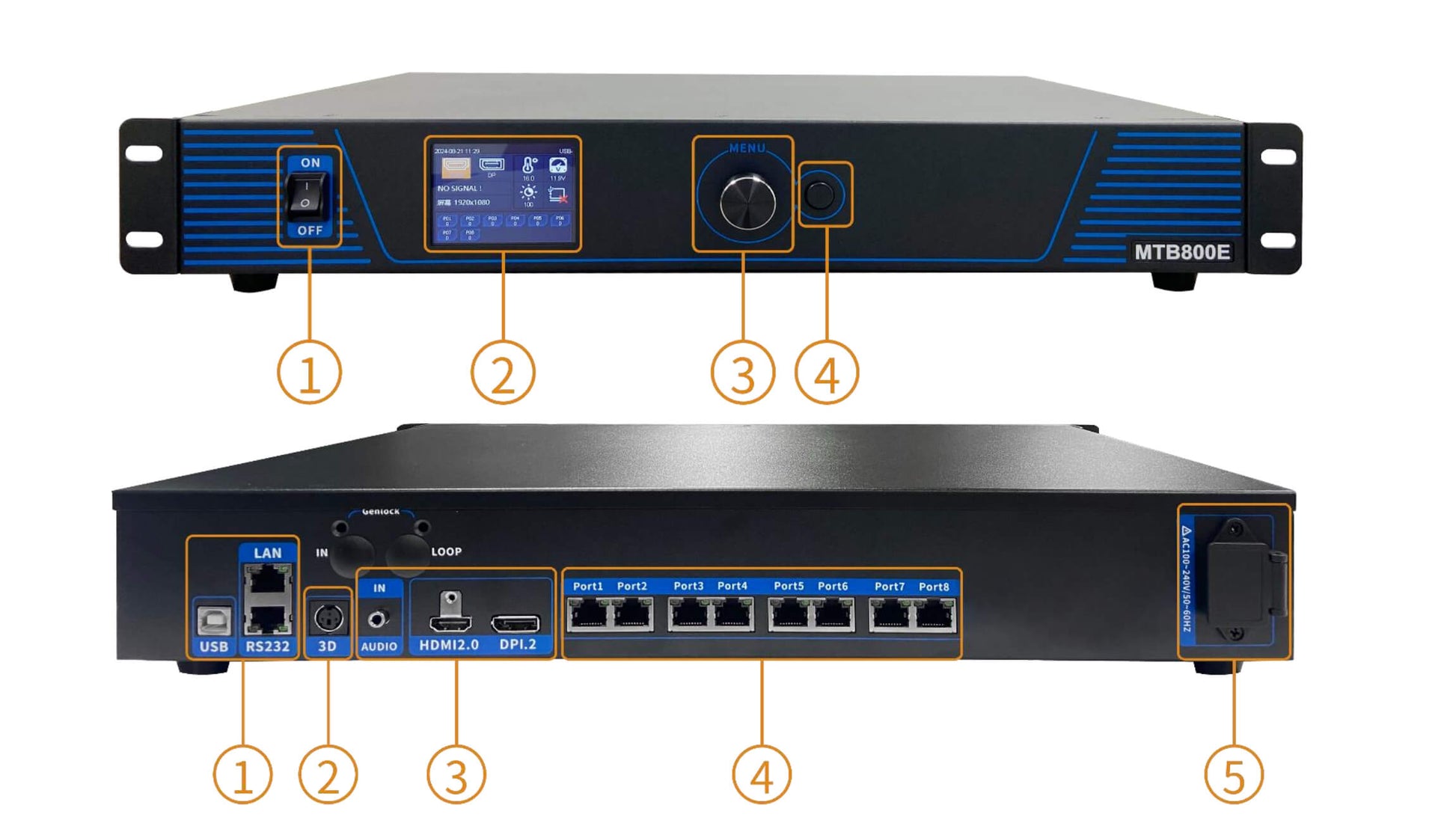

Multiple input interfaces: 1 channel DP1.2 input; 1 channel HDMI2.0 input; 1 channel AUDIO audio input
8x gigabytes Ethernet output ports,it supports the arbitrary splicing.
A variety of communication control methods: 1 USB interface; 1 serial port interface; 1100M network interface
It supports Ethernet Port Loop Dual Backup, Dual Master Controller Backup.
It supports to have multiple preset resolutions:1024×768 、 1280×1024 、 1366×768 、1600×1200 、1920×1080 、2048×1152 、2560×960 and the user defined resolution is supported.
It is compatible with 30HZ,50HZ,60HZ,120HZ and other Frame Rate Input.
It supports the upper computer software to detect the operating parameters and status of the sending card.
It supports to read the configurations back from where it was stored ( configuration read back )
Support 3D display, active 3D display.
It supports to detect the error rates of the gigabyte network.
