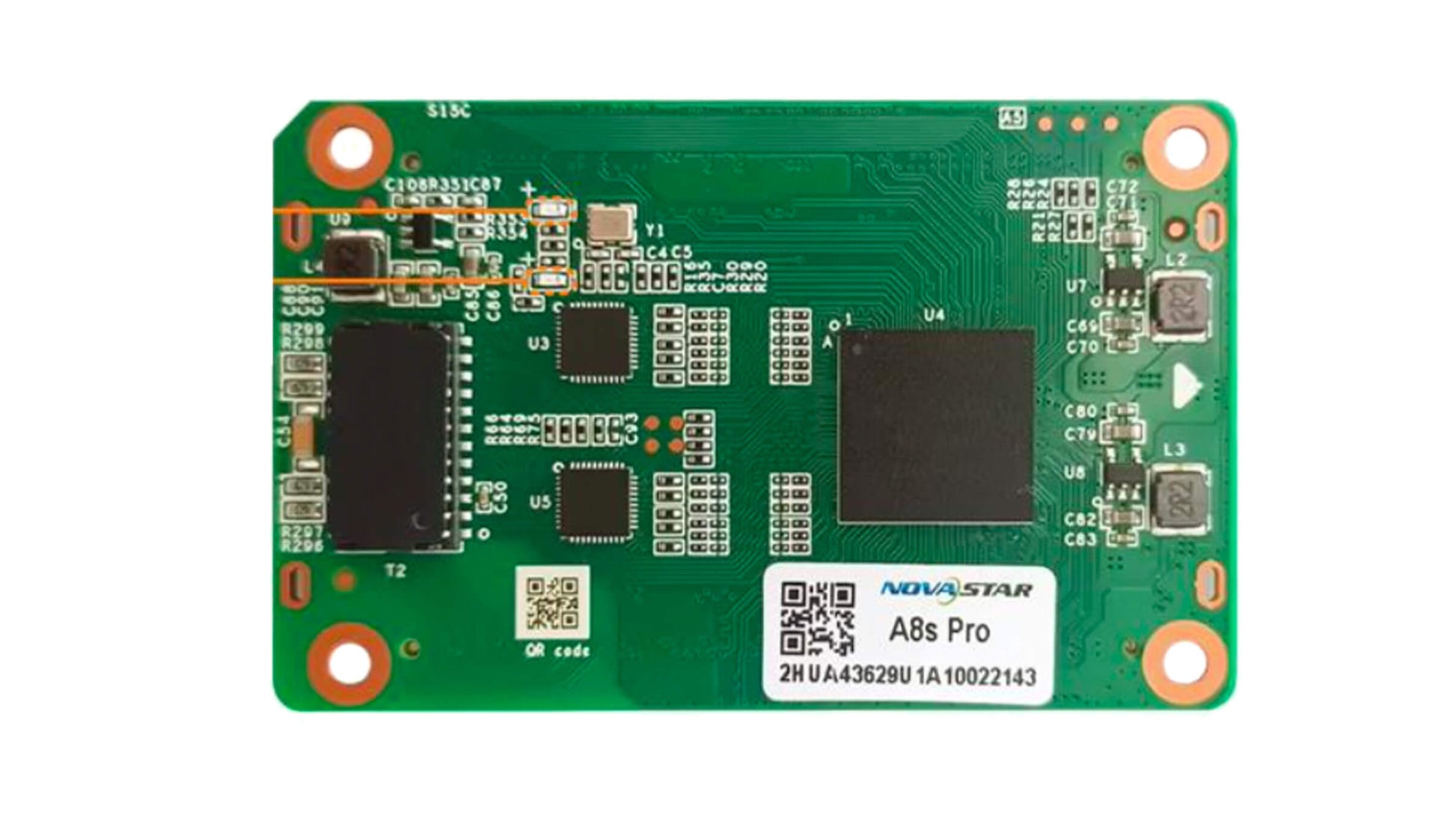

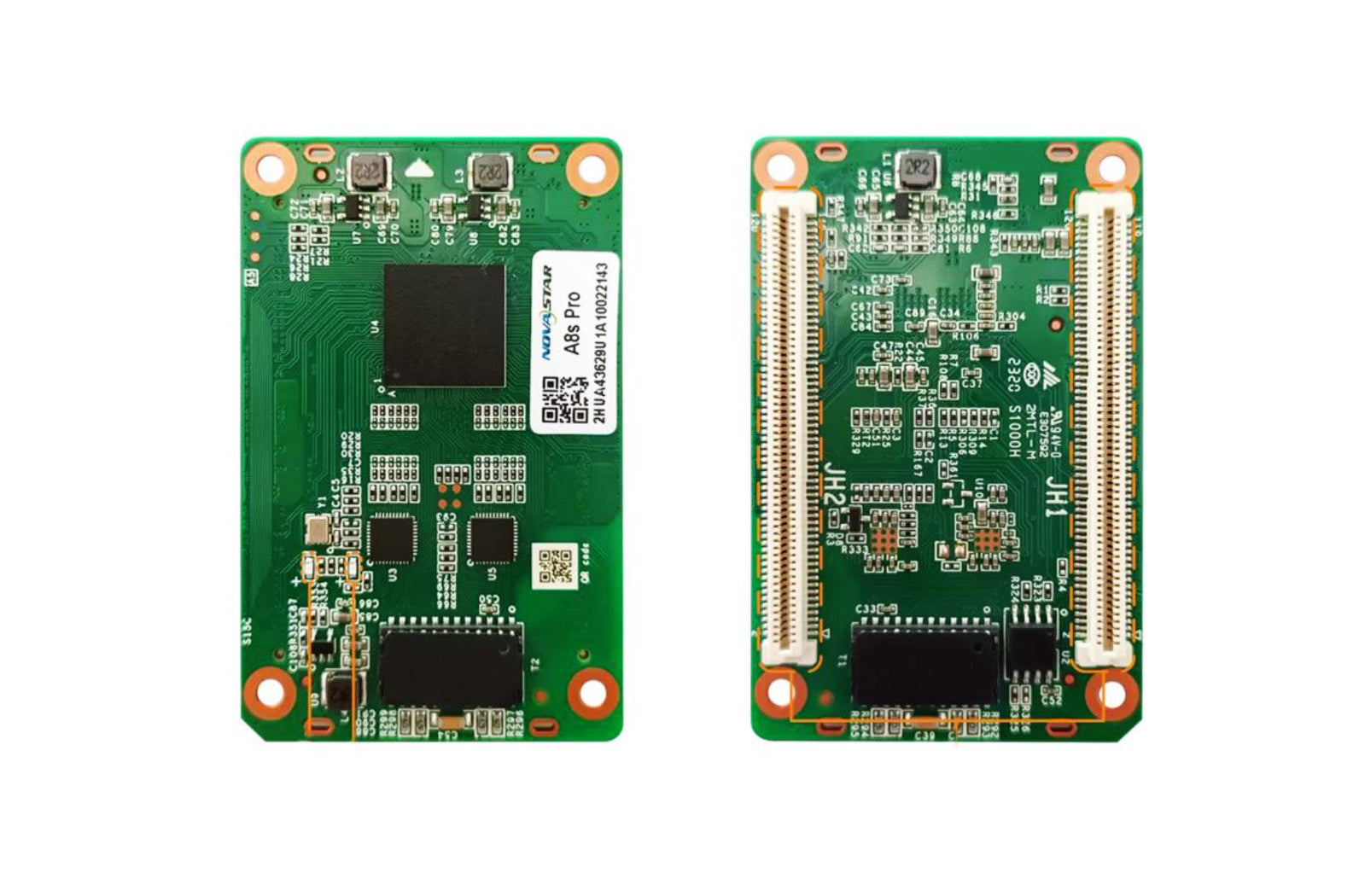

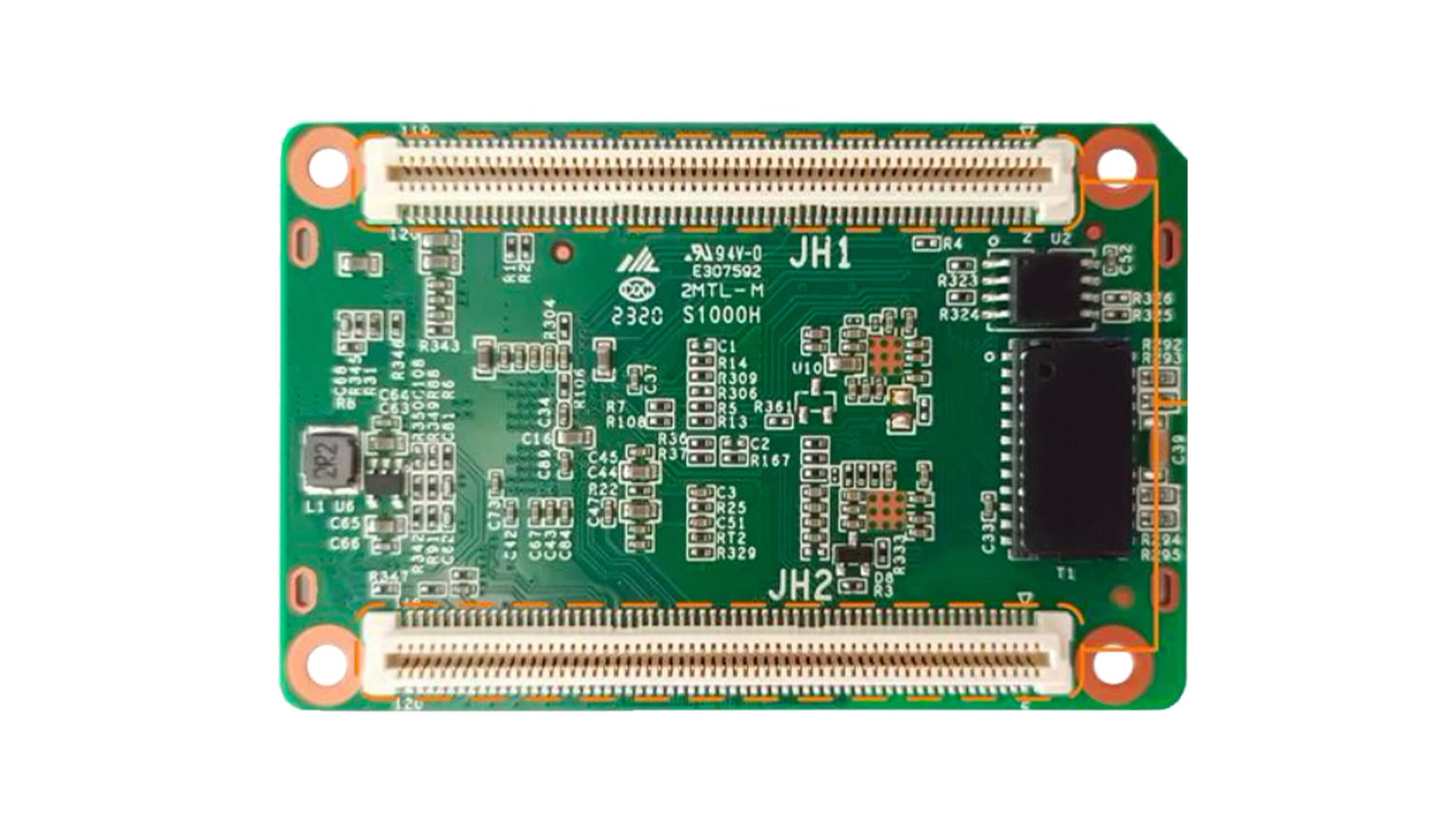

The Novastar A8s Pro is a high-end small receiving card developed by Xi'an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). A single A8s Pro supports resolutions up to 512×512@60Hz.

Novastar A8s Pro LED Display Receiving Card Features：

Multi-Layer Grayscale Calibration

Work with NovaStar’s high-precision calibration system to not only support the traditional brightness and chroma calibration, but also generate unique calibration coefficients for lowgrayscale image parts to ensure their uniformity.

HDR

− Support HDR10 and comply with the SMPTEST 2084 and SMPTE ST 2086 standards.
− Support HLG.

Seam brightness correction

The different brightness of seams caused by splicing of modules or cabinets can be corrected to improve the visual experience. The correction is easy and takes effect immediately.

Automatic module calibration

After a new module with flash memory is installed to replace the old one, the calibration coefficients stored in the flash memory can be automatically uploaded to the receiving card when it is powered on, which ensures
unchanged uniform display brightness and chroma.

Bit error detection

It can monitor the communication quality of the Ethernet port of the receiving card in real time, record the number of error data packets, and help users quickly identify faults and eliminate network communication failures.
