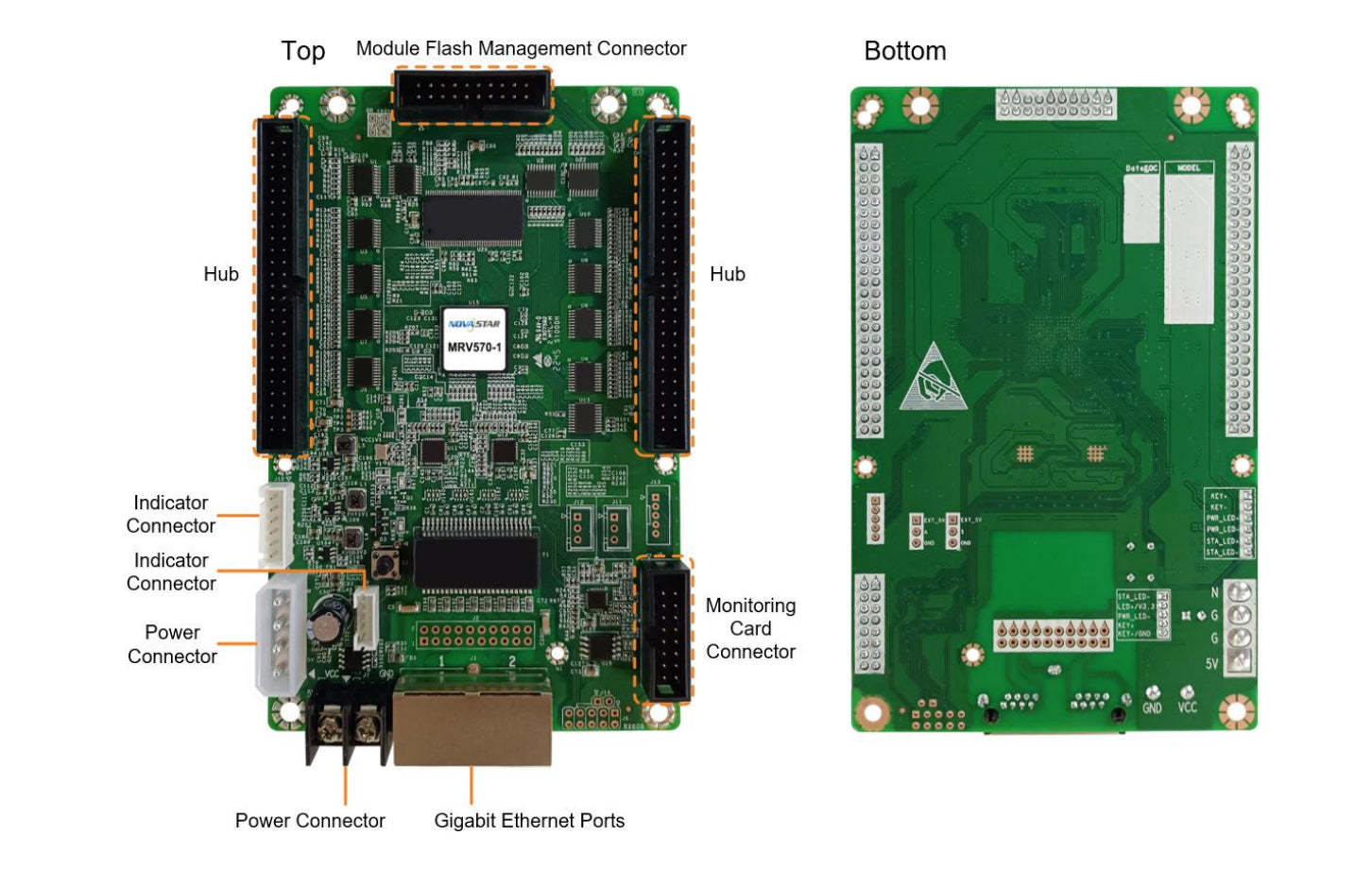

Description
A single MRV570-1 supports resolutions up to 512×256@60Hz. Supporting various functions such as pixel level brightness and chroma calibration, the MRV570-1 can significantly improve the display effect and user experience.
Novastar MRV570-1 receiving card Features:
- Module Flash management to store calibration coefficients and module information
- Pixel level brightness and chroma calibration
- Support for setting of a stored image in the receiving card
- Configuration parameter readback
- Temperature monitoring
- Ethernet cable communication status monitoring
- Power supply voltage monitoring
- Support for connection of a monitoring card
Novastar MRV570-1 receiving card Specifications:
| Maximum Resolution | 512×256@60Hz | |||||
| Electrical Specifications | Input voltage | DC 3.8 V to 5.5 V | ||||
| Rated current | 0.5 A | |||||
| Rated power consumption | 2.5 W | |||||
| Operating Environment | Temperature | –20°C to +70°C | ||||
| Humidity | 10% RH to 90% RH, non-condensing | |||||
| Storage Environment | Temperature | –25°C to +125°C | ||||
| Humidity | 0% RH to 95% RH, non-condensing | |||||
| Physical Specifications | Dimensions | 145.8 mm × 91.5 mm × 18.4 mm | ||||
| Packing Information | Packing specifications | An antistatic bag and anti-collision foam are provided for each receiving card. Each packing box contains 100 receiving cards |
||||
| Packing box dimensions | 625.0 mm × 180.0 mm × 470.0 mm | |||||
