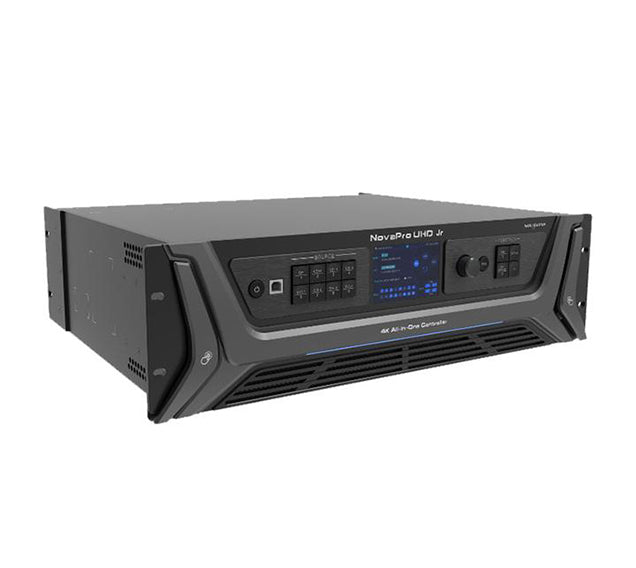

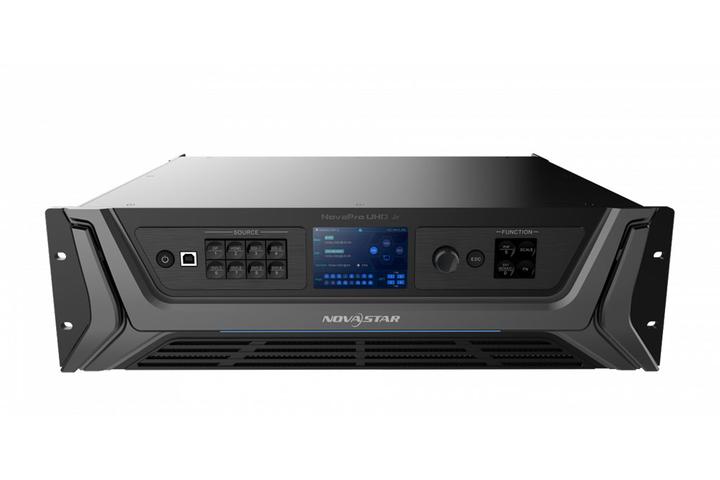

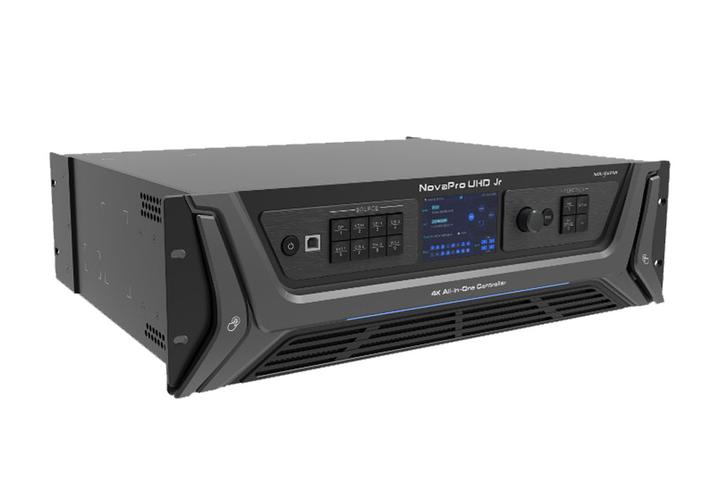

NovaPro UHD Jr is NovaStar's all-in-one controller that integrates video processing with sending card functions.
NovaPro UHD Jr features multiple input connectors, supporting up to 8 inputs simultaneously, and multiple output connectors, including 16 Ethernet ports and 4 optical fiber ports. 4K×2K@60Hz ultra high-definition inputs and outputs, the product can be widely used for applications, such as stage control systems, conference sites and exhibition sites.

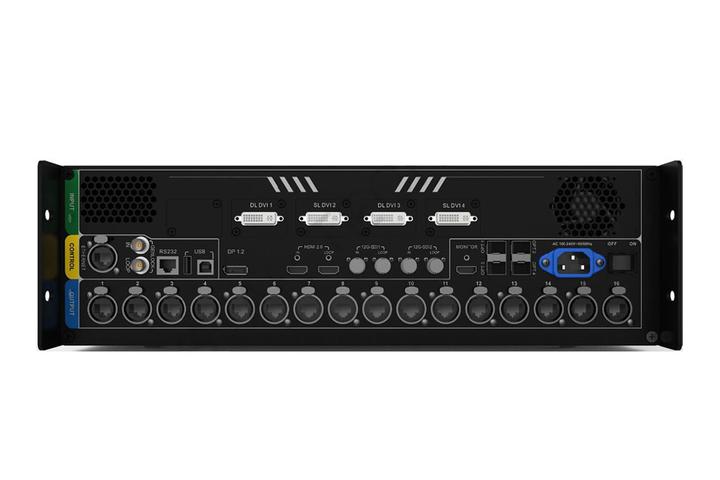

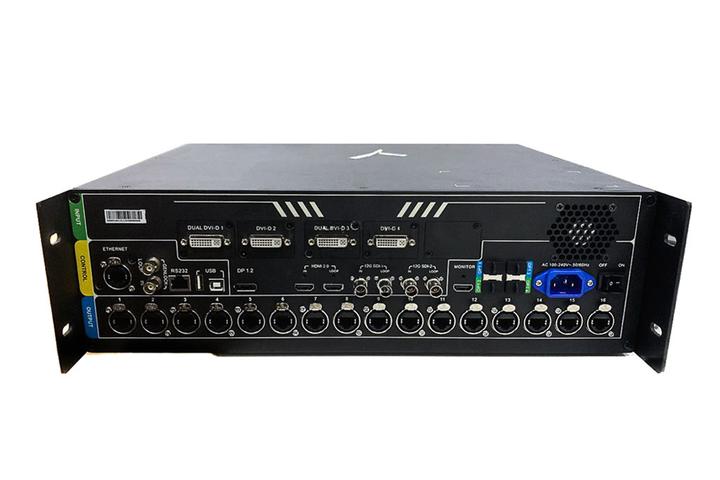

Various inputs and outputs. Provides 1 × DP 1.2, 4 × DVI, 1 × HDMI 2.0 with loop output and 2 × 12G-SDI with loop output.

More output connectors, larger loading capacity. Provides 16 × Neutrik Ethernet output and 4 × optical fiber output, with loading capacity up to 8,300,000 pixels.
DVI mosaic An input source can be made up of at most 4 DVI input sources.
HDR output Greatly enhances display image quality, providing more clear and vivid image.
3D image output
Decimal refresh rate
Low-latency output Realizes zero frame latency from device to receiving card.
Customized BKG settings Supports pure color and image BKGs.
Personalized image scaling Supports 3 kinds of image scaling modes: auto fit, pixel to pixel, custom.
Capture function Captures input source image which can be used as a BKG image.
Cascading supported Up to 4 devices can be cascaded to load a super-large screen.
V-Can (smart control software from NovaStar) supported
10 presets At most 10 user presets can be created and saved as templates which can be used directly and conveniently.
EDID management supported Supports custom EDID and standard EDID.

NovaStar NovaPro UHD Jr. Specifications
Power connector:AC 100 V–240 V 50/60 Hz
Operating temperature:-10°C–50°C
Storage temperature:-30°C-70°C
Operating humidity:0%RH-80%RH
Dimensions:3U standard chassis 482.6 ×396.0 ×139.0 (mm)
Max power consumption:70 W
Weight:6.3 kg

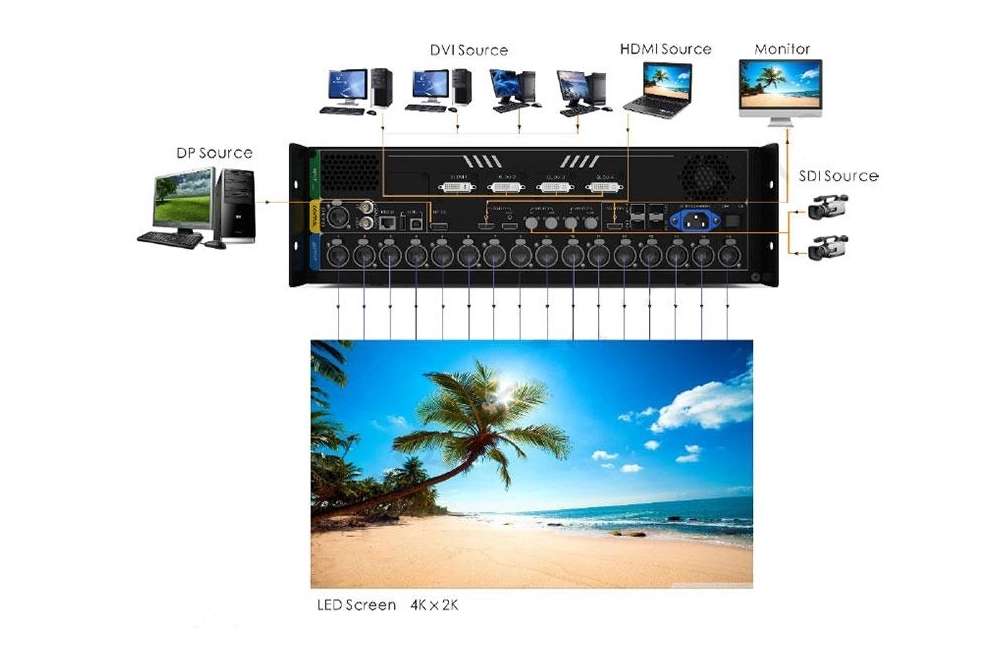

NovaStar NovaPro UHD Jr. Working Diagram
