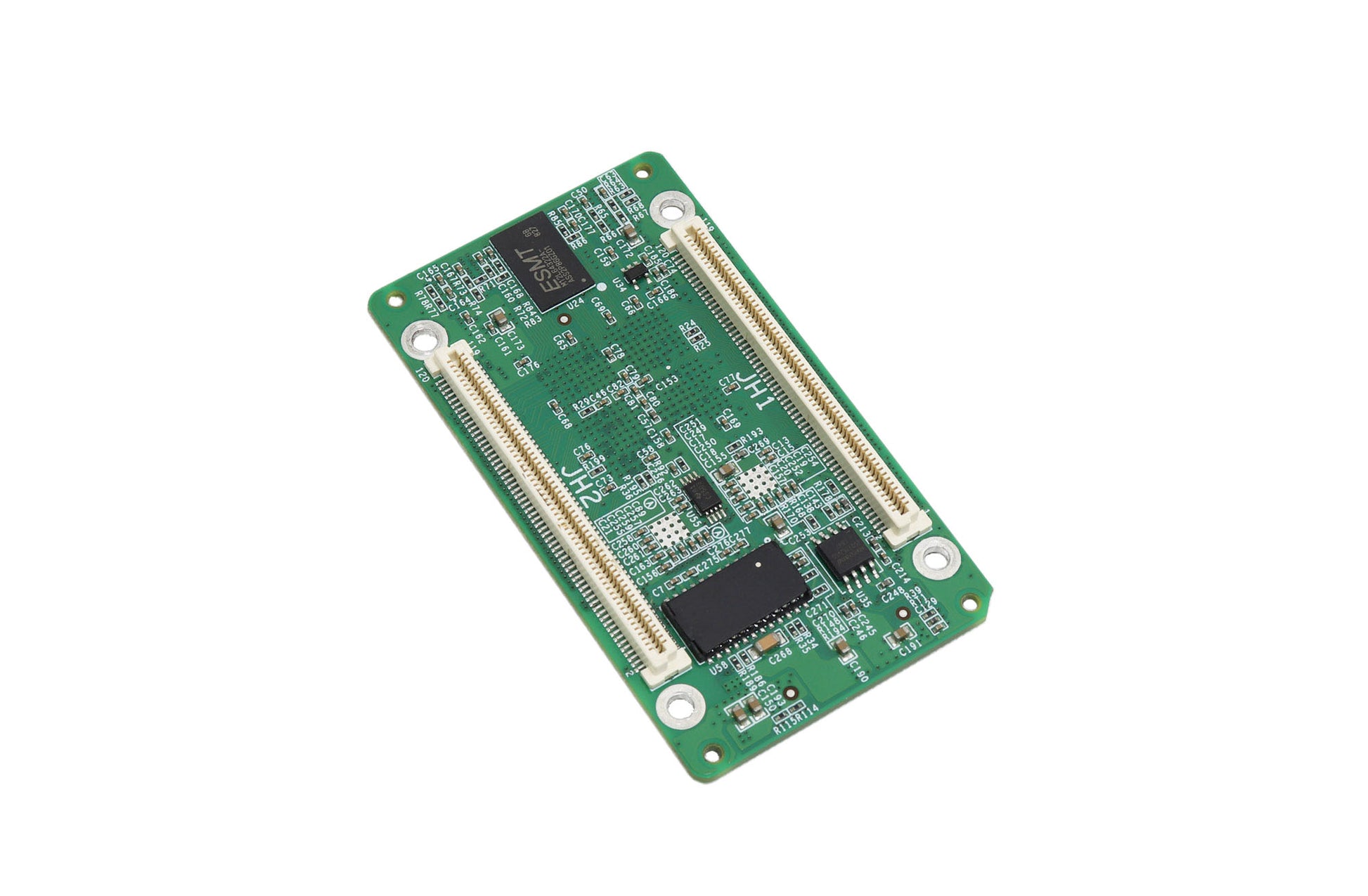

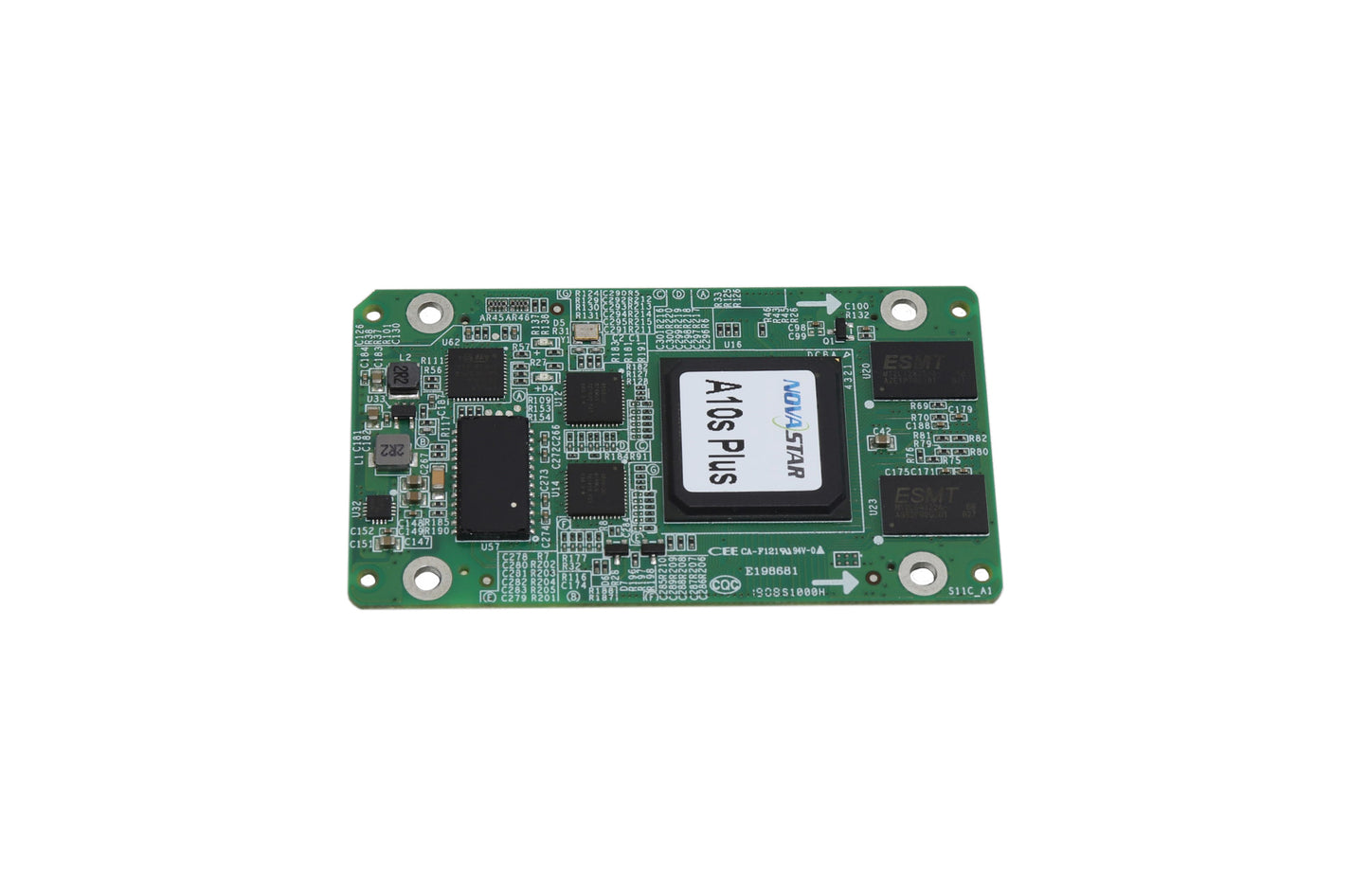

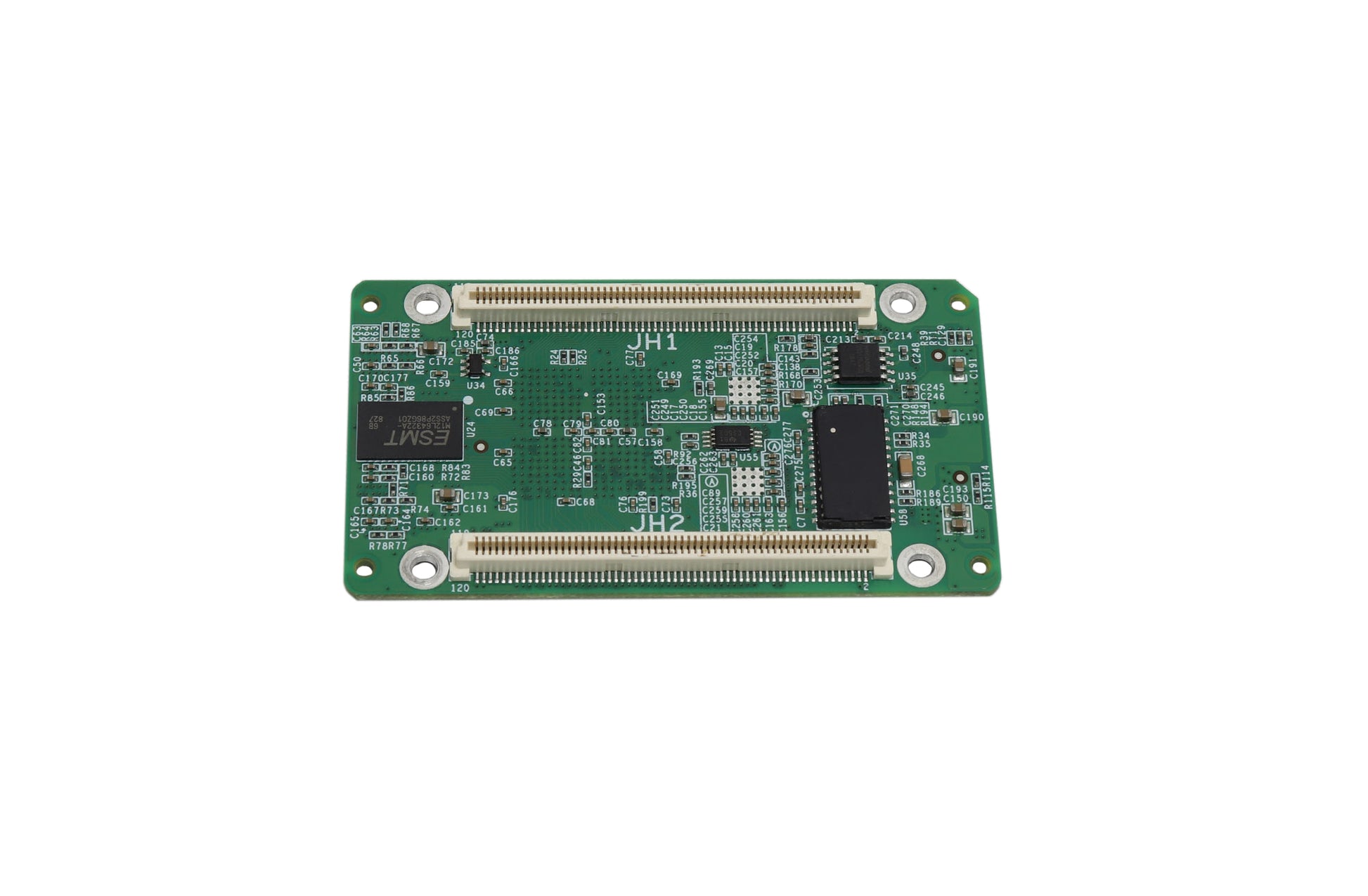

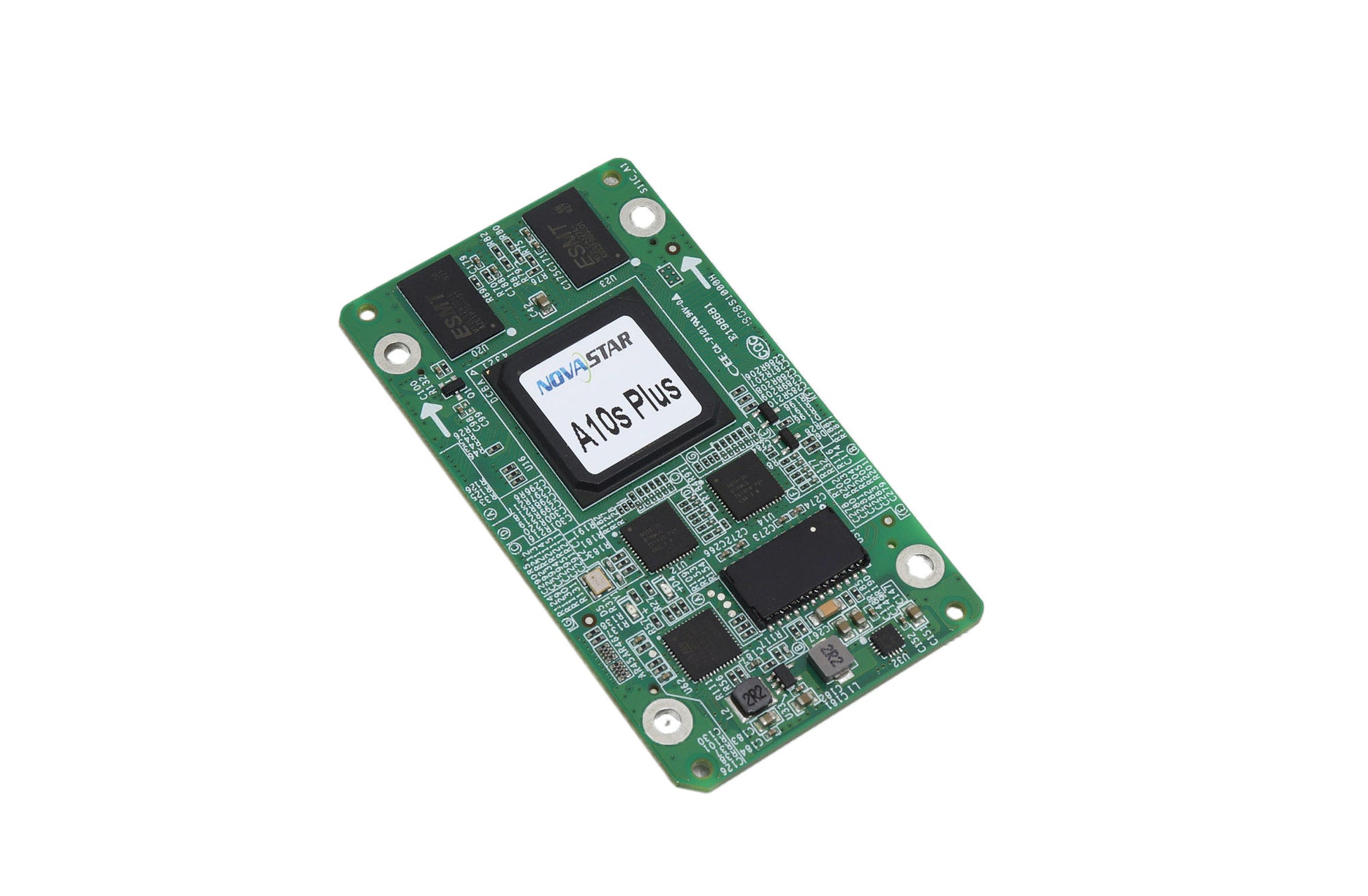

Novastar A10S Plus High-end Large LED Panel Receiving Card is a high-end receiving card developed by NovaStar. It has a small size and features a large loading capacity, with a single card loading up to 512×512 pixels. It can support up to 32 groups of parallel data or 64 groups of serial data.

Novastar A10S Plus High-end Large LED Panel Receiving Card Features:

Advanced Hardware Design:

• The small hardware footprint saves cabinet space and is suitable to a variety of applications.
• Uses dust-resistant high-density connector to limit effects of dust and vibration, resulting in high stability and reliability.
• Integrated network transformer features simple design and improved electromagnetic compatibility.

Useful Software Design:

• Supports up to 1/64 Scan.
• Supports the following functions when working with NovaLCT (V5.2.0 and later)
  • Supports random order scanning of module.
  • Lights the modules with data row extracting and channel extracting.
  • Supports precise grayscale correction.
  • Supports individual Gamma adjustment for RGB.
  • Supports bit error detection.
• Supports HDR function.
• Supports low latency function.
• Supports 18Bit+ to display image with high brightness or low grayscale.
• Supports ClearView high image quality display.
• Supports LVDS transmission (supported by dedicated firmware program).
• Supports smart module (supported by dedicated firmware program).
• Supports quick seam correction.
• Supports 3D function
• Supports auto module calibration.
• Supports Mapping function.
• Supports setting of pre-stored image on receiving card.
• Supports module Flash management.
• Supports voltage and temperature monitoring of card without use of peripherals.
• Supports cabinet LCD.
• Supports image rotation in 90° increments.
• Supports display rotation at any angle.

Novastar A10S Plus High-end Large LED Panel Receiving Card Parameter:
