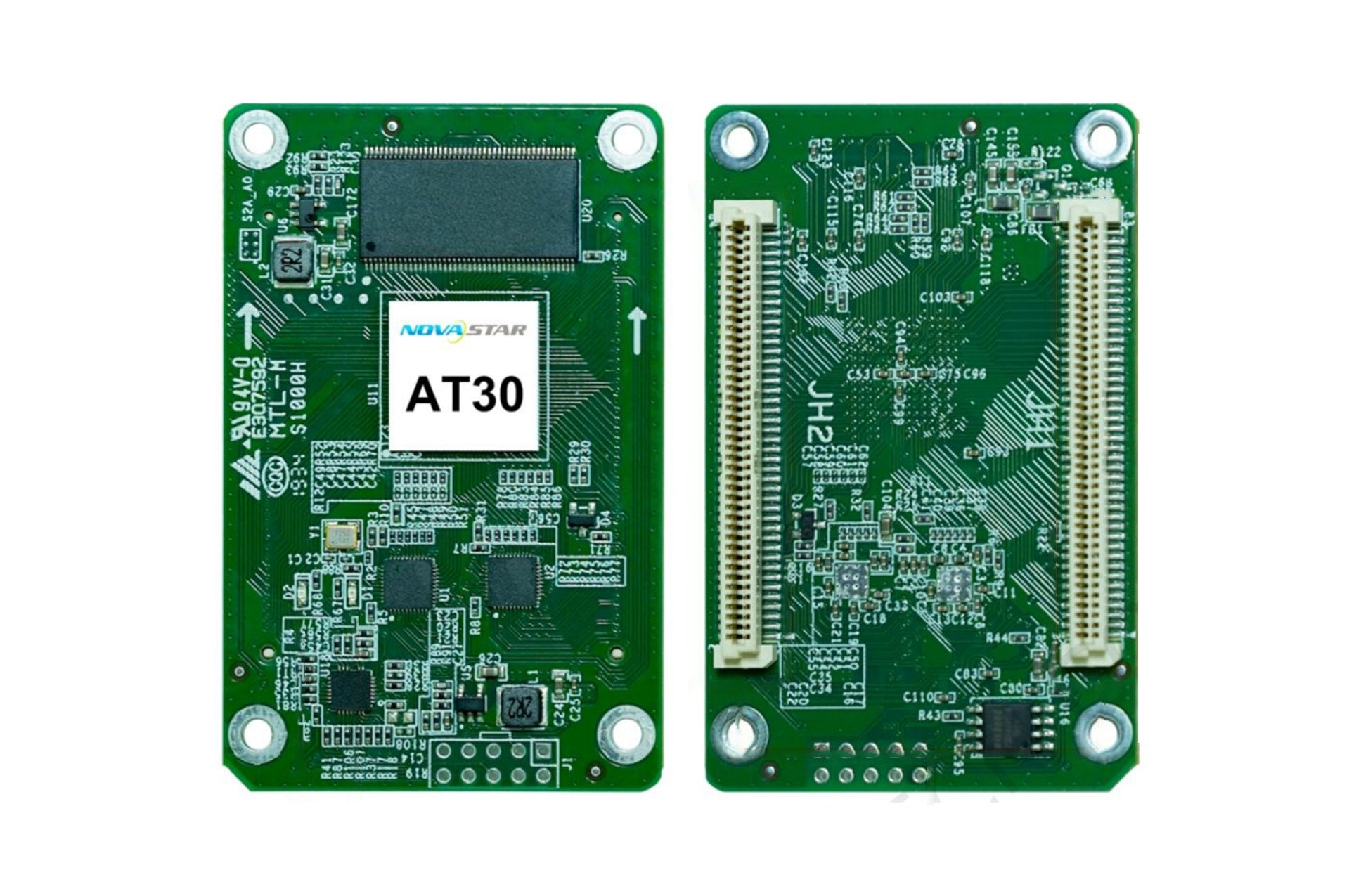

The AT30 is a general small receiving card developed by NovaStar. A single AT30 loads up to 512×256 pixels.
Supporting various functions such as pixel level brightness and chroma calibration, quick adjustment of dark or bright
lines, 3D, individual Gamma adjustment for RGB, and image rotation in 90° increments, the AT30 can greatly improve
the display effect and user experience.
The AT30 uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high
stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of
serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware
design, the AT30 has improved electromagnetic compatibility and is suitable to various on-site setups.
