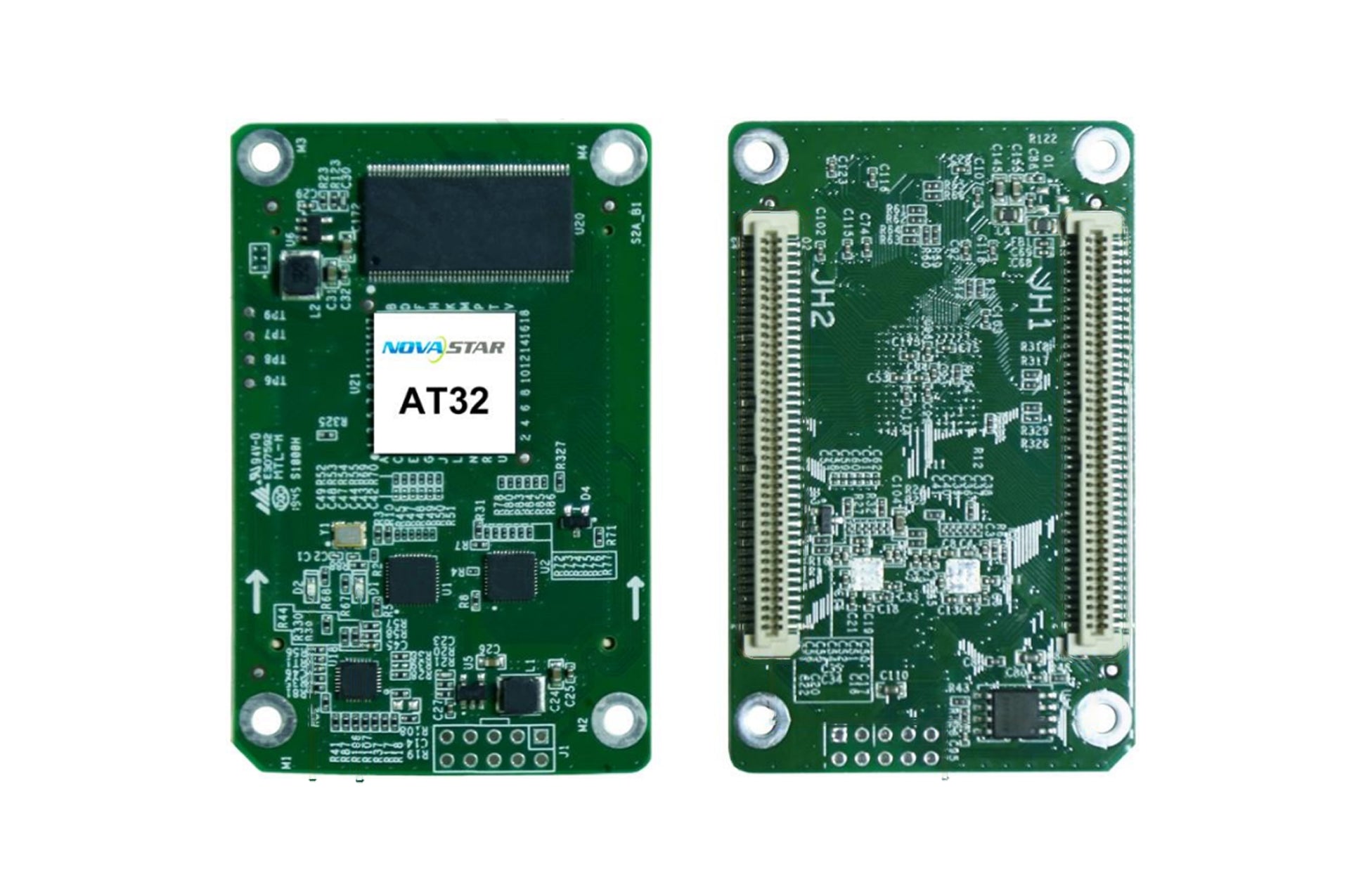

The AT32 is a general small receiving card developed by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as
NovaStar). A single AT32 supports resolutions up to 512×384 @60Hz (NovaLCT V5.3.0 or later required). Supporting
various functions such as pixel level brightness and chroma calibration, quick adjustment of dark or bright lines, 3D,
individual gamma adjustment for RGB, and image rotation in 90° increments, the AT32 can significantly improve the
display effect and user experience.
The AT32 uses high-density connectors for communication to limit the effects of dust and vibration, resulting in high
stability. It supports up to 32 groups of parallel RGB data or 64 groups of serial data (expandable to 128 groups of
serial data). Its reserved pins allow for custom functions of users. Thanks to its EMC Class B compliant hardware
design, the AT32 has improved electromagnetic compatibility and is suitable for various on-site setups.

Certifications
RoHS, EMC Class B
If the product does not have the relevant certifications required by the countries or regions where it is to be
sold, please contact NovaStar to confirm or address the problem. Otherwise, the customer shall be
responsible for the legal risks caused or NovaStar has the right to claim compensation.
