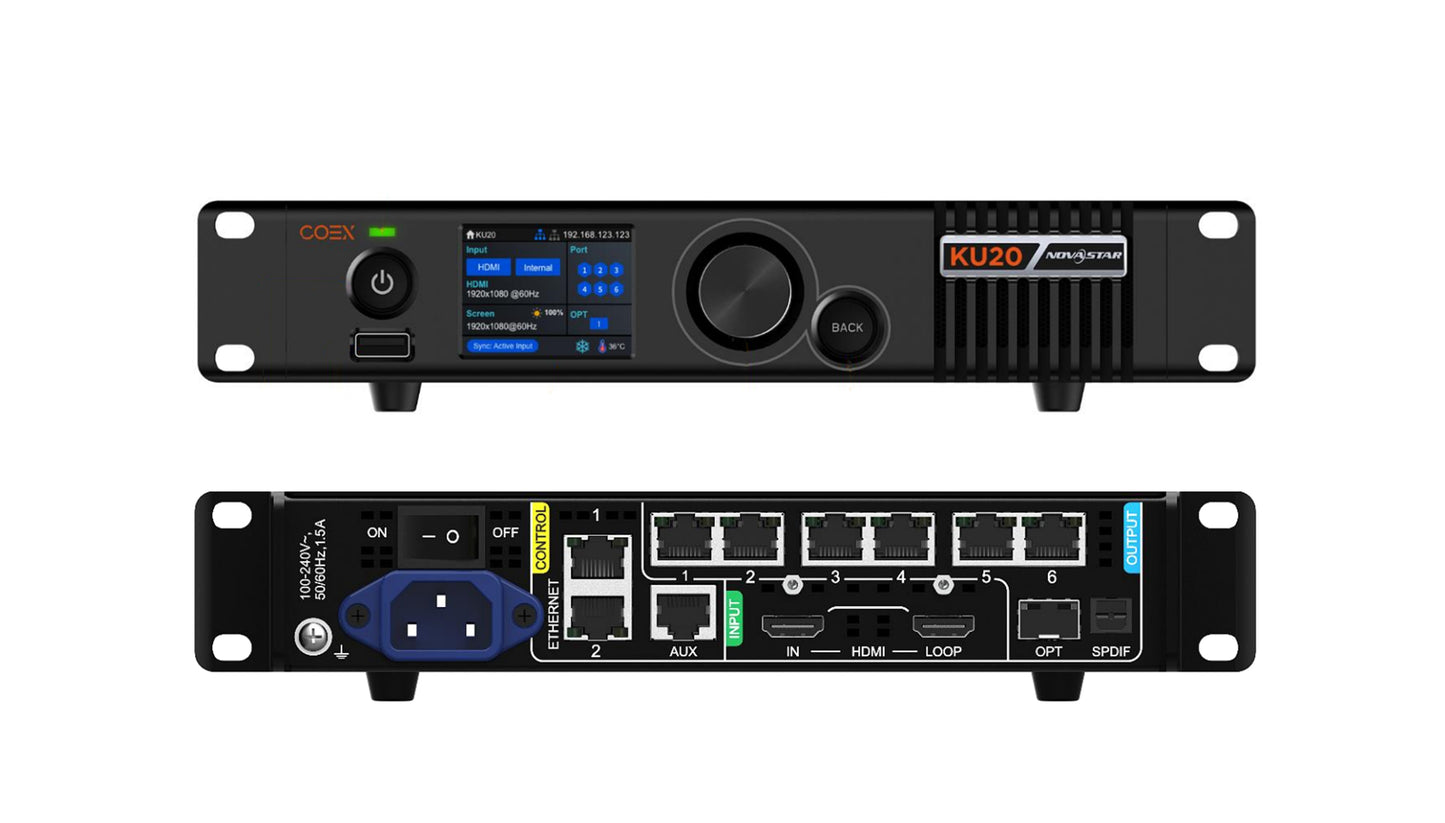

KU20 is a 6-network port controller under the COEX series of the new control system of Xi’an Nova Nebula Technology Co., Ltd.. It has 1 HDMI input interface, 6 output network ports, and 1 The optical fiber output interface supports the new visual management platform VMP, providing users with a better control experience.

HDMI input:
1x HDMI 1.3 (with loop through)
10-bit and 8-bit video inputs

Ethernet outputs:
6 Ethernet outputs, up to 2.3 million pixels supported. Support redundancy between Ethernet ports.

Max loading capacity per port:
8bit@60Hz: 650,000 pixels
10bit@60Hz: 480,000 pixels (available only with the A10s Pro receiving card)
10bit@60Hz: 325,000 pixels

Optical output:
One 10G SFP+ output

Adaptive frame rate
Adaptive to various input frame rates, including decimal frame rates
Max width: 3840 pixels (3840×600@60Hz)
Max height: 2560 pixels (800×2560@60Hz)

Specifications Download
KU20_LED_Display_Controller_Specifications-V1.0.0
