Novastar CVT10-S CVT10-M LED Screen Fiber Converter
Novastar CVT10-S CVT10-M LED Screen Fiber Converter
The CVT10 fiber converter offers a cost-effective way to convert optical signals to electrical signals, or electrical signals to optical signals, for connecting the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission. The CVT10 hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT10 devices, or one CVT10 device and a connecting piece can be combined into one assembly that is 1U in width.
The CVT10 is used for long-distance data transmission. Users can decide a connection method based on whether the sending card has optical ports.
Fiber Converter CVT10
- Models include the CVT10-S (single-mode) and the CVT10-M (multi-mode).
- 2x optical ports with hot-swappable optical modules installed at the factory, bandwidth of each up to 10 Gbit/s
- 10x Gigabit Ethernet ports, bandwidth of each up to 1 Gbit/s
- Fiber in and Ethernet out: 8x Ethernet ports available (ports 1–8), ports 9–10 currently unavailable (to beavailable in the future upgrade)
- Ethernet in and fiber out: 10x Ethernet ports available
- 2 types of power connectors, including a 3-pin power socket and a PowerCON socket
- 1x type-B USB control port

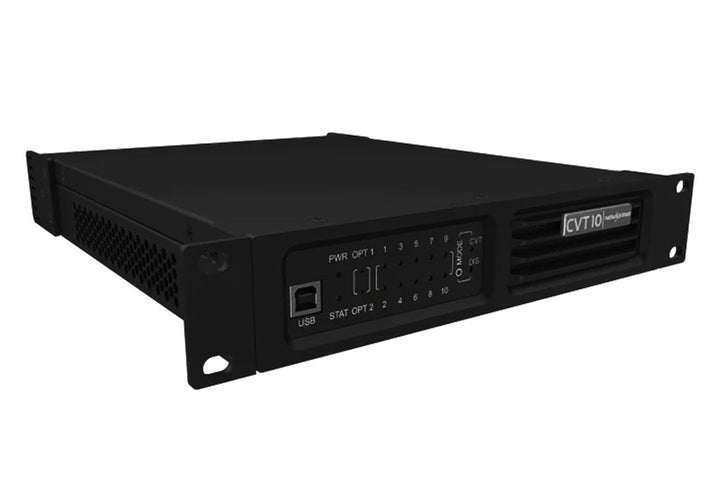

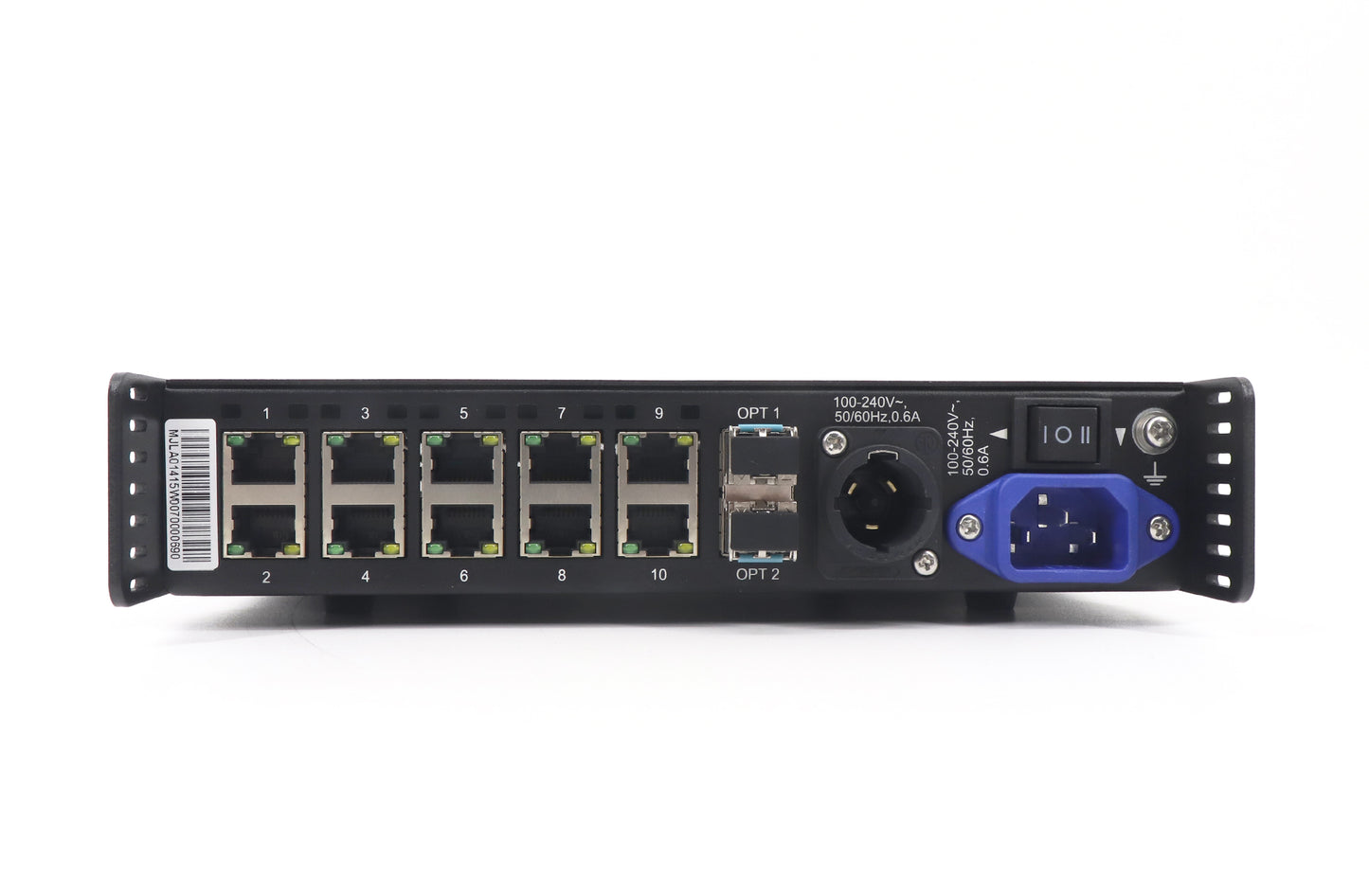

Fiber Converter Appearance
Novastar Fiber Converter CVT10 Parameters
|
Electrical Specifications |
Power supply |
100-240V~, 50/60Hz, 0.7A |
|
Rated power consumption |
22 W |
|
|
Operating Environment |
Temperature |
–20ºC to +60ºC |
|
Humidity |
10% RH to 80% RH, non-condensing |
|
|
Storage Environment |
Temperature |
–20°C to +70°C |
|
Humidity |
10% RH to 95% RH, non-condensing |
|
|
Physical Specifications |
Dimensions |
254.3 mm × 50.1 mm × 290.0 mm |
|
Net weight |
2.1 kg Note: It is the weight of a single product only. |
|
|
Gross weight |
3.1 kg Note: It is the total weight of the product, accessories, printed materials and packing materials packed according to the packing specifications. |
|
|
Packing Information |
Packing box |
362.0 mm × 141.0 mm × 331.0 mm, kraft paper box |
|
Outer box |
387.0 mm × 173.0 mm × 359.0 mm, kraft paper box |
|
|
Packing list |
l 1x CVT10 l 1x Power cord, 1x USB cable, 1x Ethernet cable l 1x Supporting bracket A (with nuts), 1x Supporting bracket B (without nuts) l 1x Connecting piece l 12x M3*8 screws l 1x Assembling diagram l 1x Certificate of Approval |
|
|
Certifications |
RoHS, FCC, CE, IC |
|
