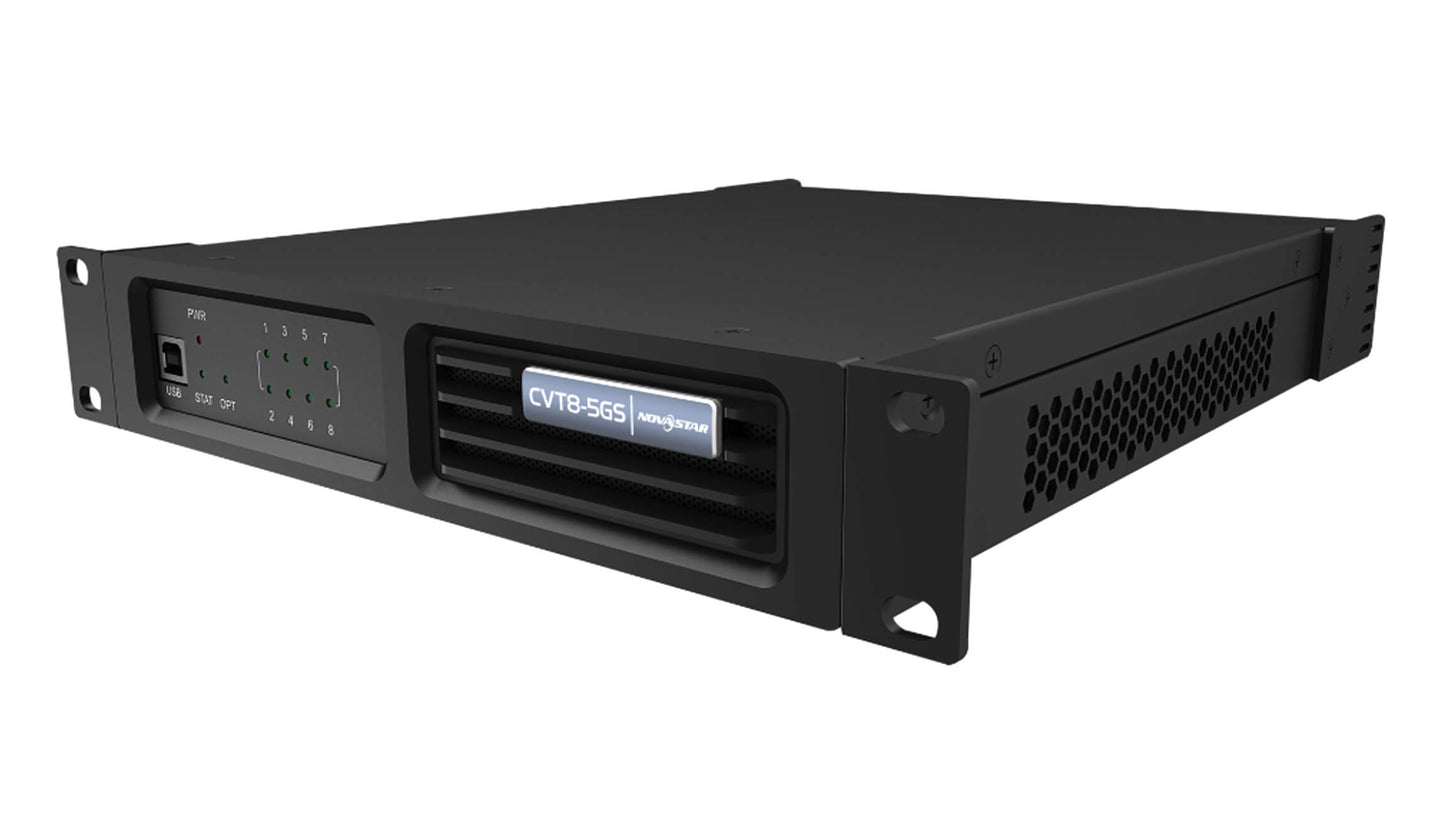

The CVT8-5G fiber converter offers a cost-effective way of conversion between optical signals and electrical signals for video sources to connect the sending card to the LED display. Delivering a full-duplex, efficient and stable data transmission that is not easily interfered with, this converter is ideal for long-distance transmission.

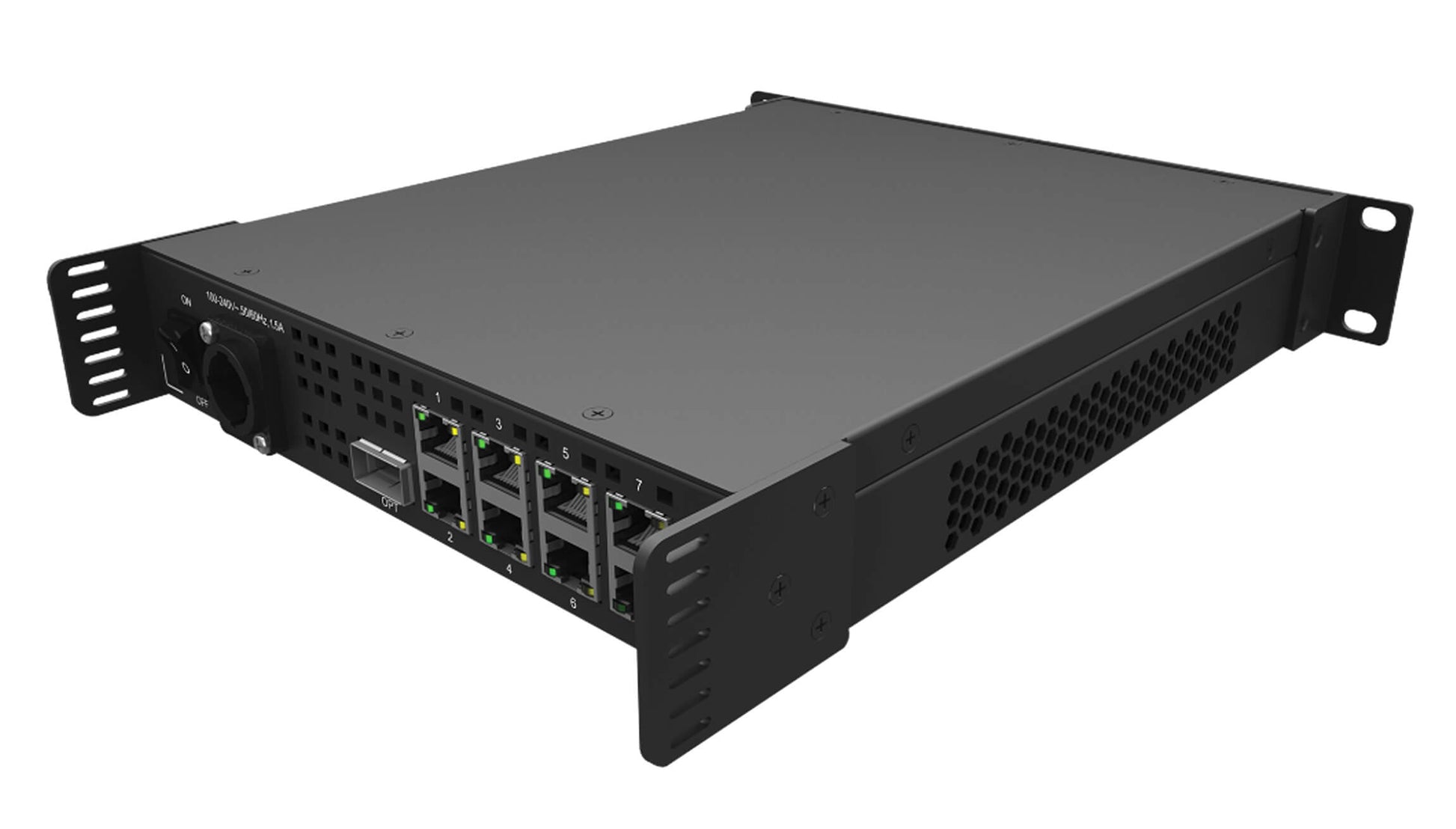

The CVT8-5G hardware design focuses on the practicality and convenience of the on-site installation. It can be mounted horizontally, in a suspended way, or rack mounted, which is easy, secure and reliable. For rack mounting, two CVT8-5G devices, or one CVT8-5G device and a connecting piece can be combined into one assembly that is 1U in width.

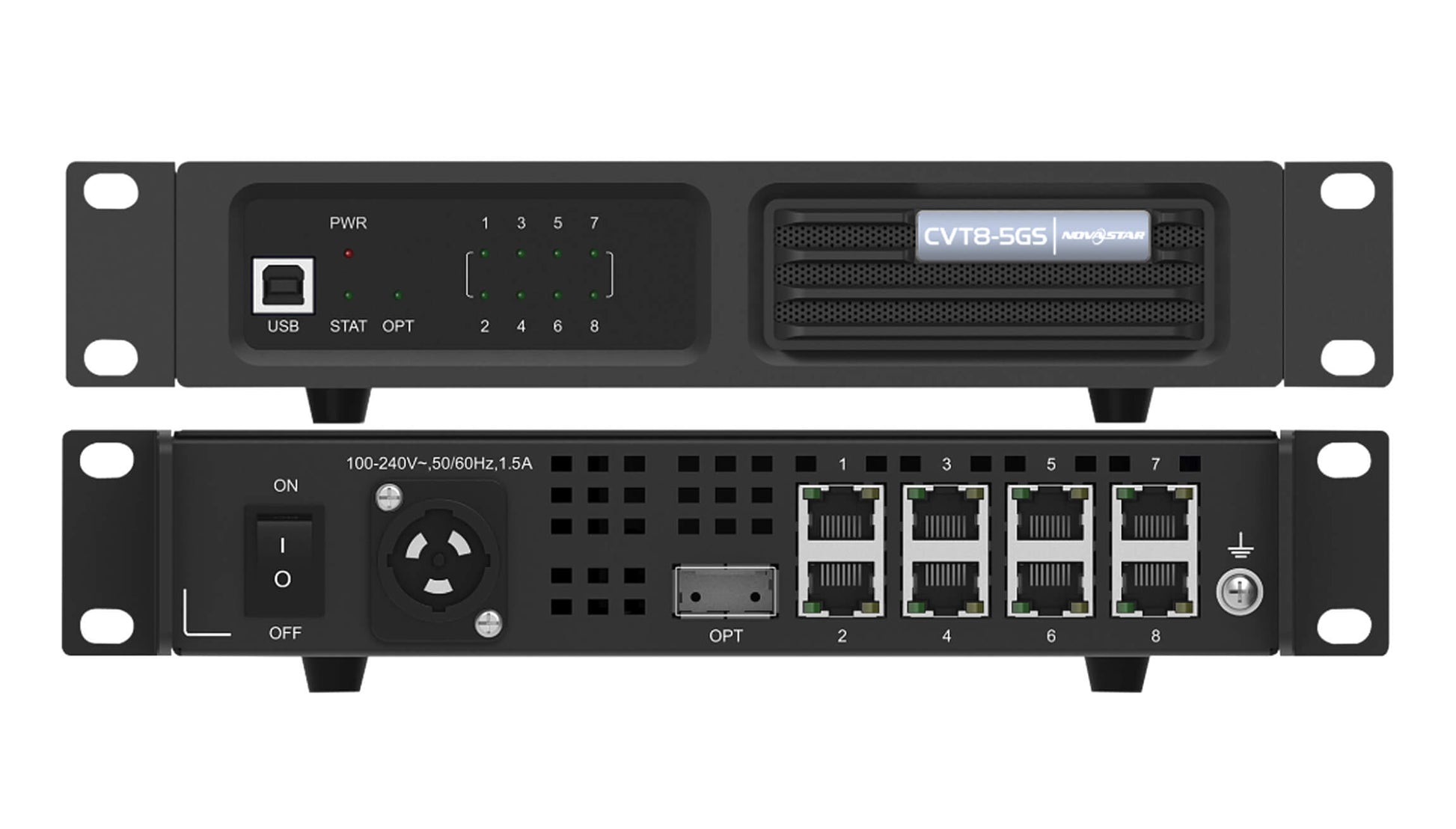

Features

 Models include the CVT8-5GS (single-mode) and the CVT8-5GM (multi-mode).
 1x optical port with bandwidth up to 40 Gbit/s, hot-swappable optical module supplied
 8x 5G BaseT Ethernet ports, bandwidth of each up to 5 Gbit/s
 1x type-B USB control port

Specification Download:
Novastar CVT8-5G Fiber Converter Specification
