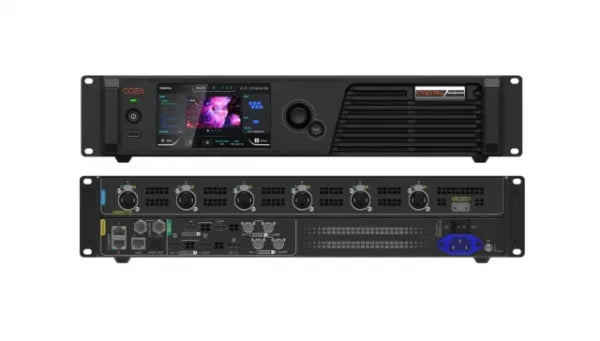

Novastar CX40 Pro is a 4K control server of Nova Nebula Technology Co., Ltd. (hereinafter referred to as "Nova Nebula")'s new control system COEX series. It has rich video input interfaces (HDMI 2.0, DP 1.2, 12G-SDI), and Supports 5Gbps network port output and 40Gbps optical port long-distance output.

Novastar CX40 Pro Control Server Features：

Inputs and Outputs：
3 types of inputs

1.  2x HDMI 2.0 (with loop through)
2.  1x DP 1.2
3.  2x 12G-SDI (with loop through)

12-bit, 10-bit and 8-bit video inputs
3 types of outputs

1.  6x 5Gbps Ethernet ports, load capacity up to 9 million pixels
2. 1x 40Gbps optical port
3. 1x SPDIF digital audio port

3 types of controls

1. 1x Genlock signal input (with loop through)
2. 2x Ethernet control ports
3. 1x Auxiliary port

Advanced Functions：
3 independent layers
Support up to 3x 4K layers and layer priority adjustment in Z order.
Image scaling
Support 3 image scaling modes: custom, pixel to pixel, and snap to canvas
Color Replacement
Support free replacement of any color on the image without affecting the performance of other colors. Replacement of highly saturated colors
is recommended for better effect.
14Ch Color Correction
Support precise adjustment to hue, saturation and brightness of black, white and the 12 derived standard colors of the red, green and
blue primary colors.
Curves
Support adjustment to the image RGBW mapping curves.

Specification Download：

Novastar CX40 Pro Control ServeSpecification

Manual Download：

Novastar CX40 Pro Control Serve Manual
