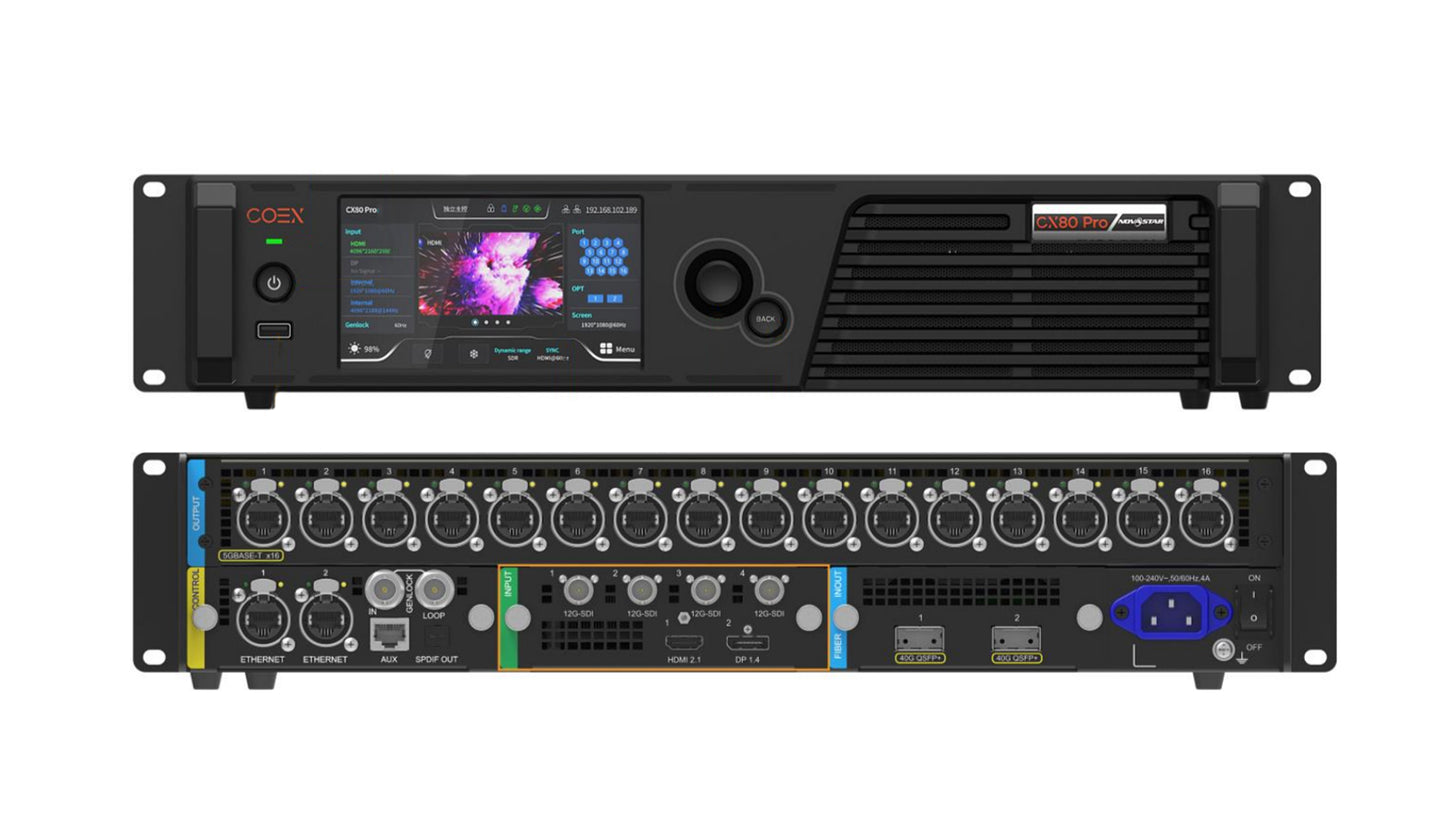

CX80 Pro is a flagship 8K control server of Nova Nebula Technology Co., Ltd.'s new control system COEX series. It has rich video input interfaces (HDMI 2.1, HDMI 2.0, DP 1.4, 12G-SDI) and supports 5Gbps network port The output is far from the 40Gbps optical portdistance output. Together with the new visual management platform VMP, it provides users with a better control experience.

Novastar CX80 Pro video control server Features：

A.2 types of pluggable input daughter cards, which can be selected as needed

− Input subcard 1 (maximum load per port 8K@60Hz)

• 4 channels 12G-SDI+1 channel HDMI 2.1+1 channel DP 1.4
• − Input daughter card 2 (maximum load capacity of single port is 4K@60Hz)
• 4 channels 12G-SDI+4 channels HDMI 2.0

B.splice input

• When using the 12G-SDI/HDMI 2.0 interface input, the input source is supported

C.12bit/10bit/8bit video source input

D.3 output interfaces

• − 16×5Gbps network port
• − 2×40Gbps optical port
• CX80 Pro Control Server Specification
• www.novastar-led.cn 2
• − 1×SPDIF digital audio interface

E.3 control interfaces

• − 1×Genlock synchronization signal input (with loop output)
• − 2×Ethernet Ethernet control network port
• − 1×AUX auxiliary interface

Specification Download:

Novastar CX80 Pro video control server Specification

Manual Download:

Novastar CX80 Pro video control server Manual
