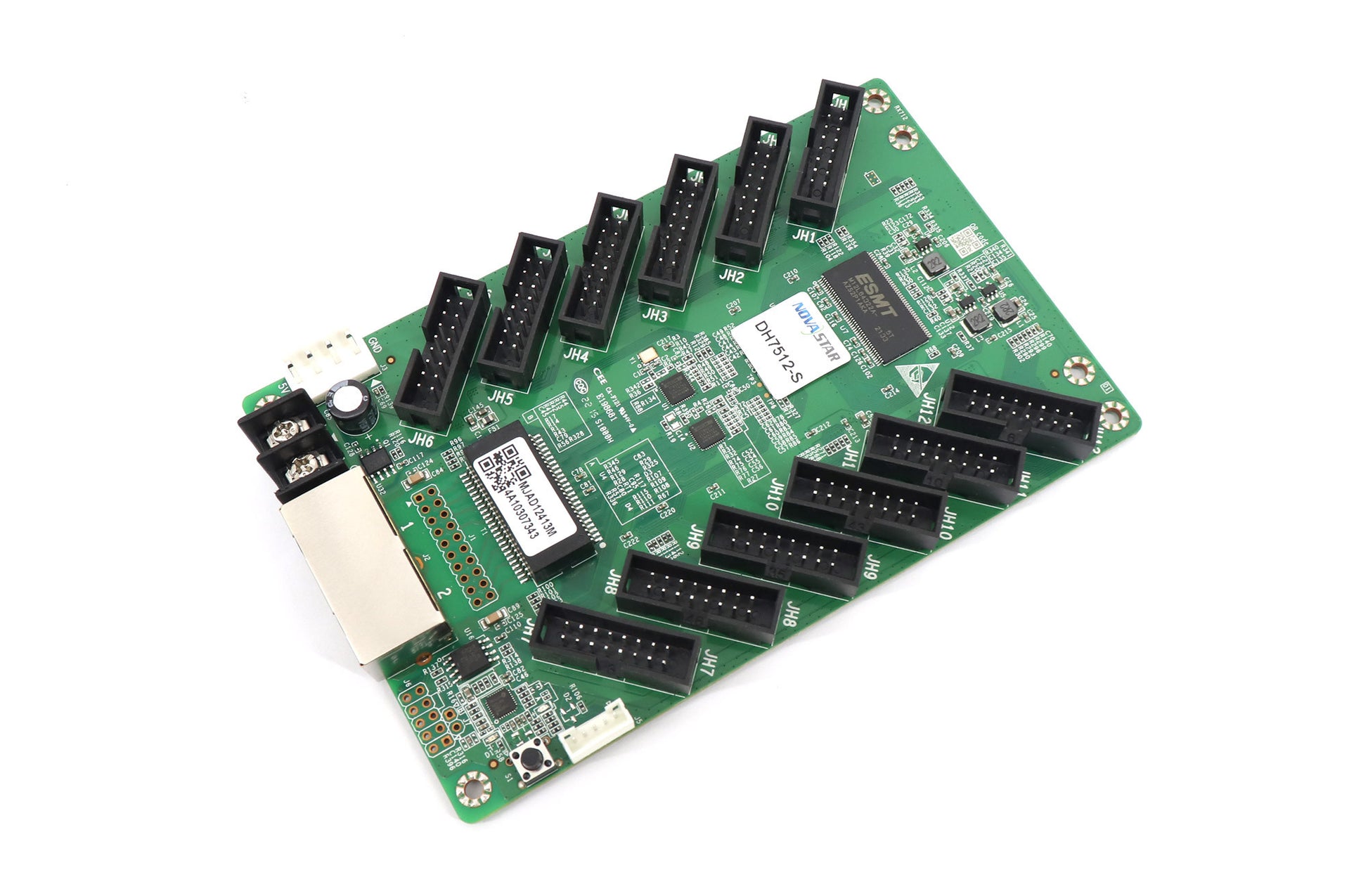

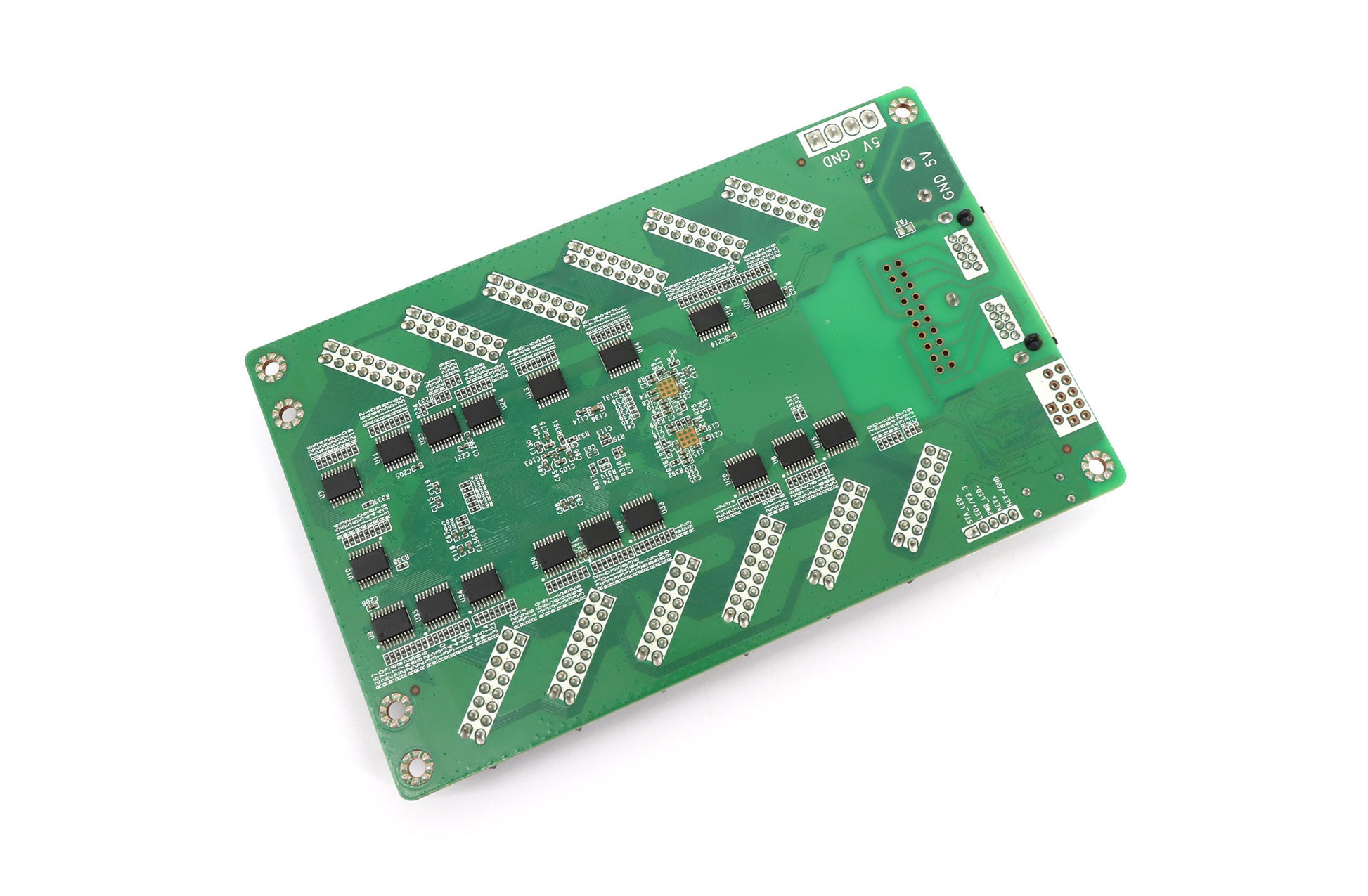

Novastar DH7512-S High Cost Performance LED Receiving Card is a general-purpose receiver card from NovaLCT, which can carry up to 512x512 pixels on a single card (NovaLCT must be v.5.3.1 and above) and supports color management, 18Bit+, point-by-point brightness chroma correction, RGB independent Gamma adjustment, 3D, etc. to improve the display effect and user experience. The DH7512-S adopts 12 standard HUB75E interfaces for communication and supports up to 24 groups of RGB parallel data.

Features of Novastar DH7512 LED Receiver Card with 12 HUB75E Ports

·Color Management
·18Bit+
·Point-by-point brightness and chromaticity correction
·Quick bright and dark line adjustment
·3D function
·RGB independent Gamma adjustment
The screen rotates in multiples of 90°
·Mapping function
·Pre-stored screen settings
·Temperature and voltage monitoring
·Cabinet LCD display
·Error detection
·Firmware program readback
·Configuration parameter readback
·Loop backup
·Dual backup of configuration parameters
·Dual program backup



Specification Download

Novastar DH7512 LED Receiver Card with 12 HUB75E Ports Specification(Chinese)
