Description

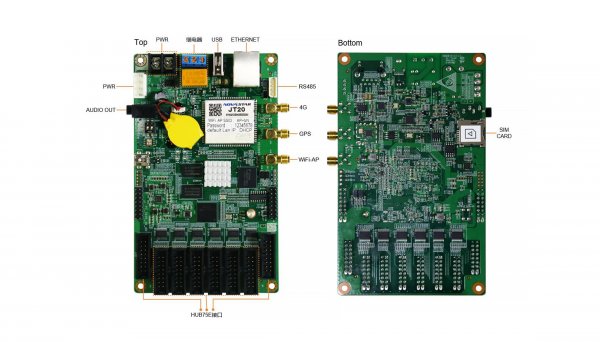

The JT20, launched by NovaStar, is a multimedia player that integrates sending and receiving capabilities. This multimedia player is designed for the traffic field. It can easily enable cross-region clustered management of screens by working with PC or various third-party client platforms. The JT20 comes with eight standard HUB75E connectors for communication and supports up to 16 groups of parallel RGB data.
Novastar JT20 led Multimedia Player Features：
A.Loading capacity of a single card up to 512×384 pixels
−Maximum pixel width: 1280 (1280×128)
−Maximum pixel height: 512 (384×512)
B.1x Stereo audio output
C.1x USB 2.0 port
-Allows for USB playback.
D.1x RS485 connector
-Connects to a sensor such as light sensor, or
-connects to a module to implement
-corresponding functions.
E.Powerful processing capability
−4 core 1.2 GHz processor
−Hardware decoding of 1080p videos
−1 GB of RAM
−8 GB of internal storage (4 GB available)
F.Various control schemes
−Solution publishing and screen control viaPC or various third-party client platforms.
−Clustered remote solution publishing andscreen control
−Clustered remote screen status monitoring
G.Built-in Wi-Fi AP
-User terminal devices can connect to the built-in Wi-Fi AP of the JT20. The default SSID is "AP+Last 8 digits of SN" and the default password is "12345678".
H.Ships with a 4G module
-Currently, the 4G network can be accessed in China only.
I.Support for GPS
J.Support for relays (maximum DC 30 V 3 A)
Specification Download：
