Description
The MCTRL300 is an LED display controller developed by NovaStar. It supports 1x DVI input, 1x audio input, and 2x Ethernet outputs. A single MCTRL300 supports input resolutions up to 1920×1200@60Hz.
The MCTRL300 communicates with PC via type-B USB port. Multiple MCTRL300 units can be cascaded via UART port.
As a highly cost-effective controller, the MCTRL300 can be mainly used in the rental and fixed installationapplications, such as live events, security monitoring centers, and various sports centers.

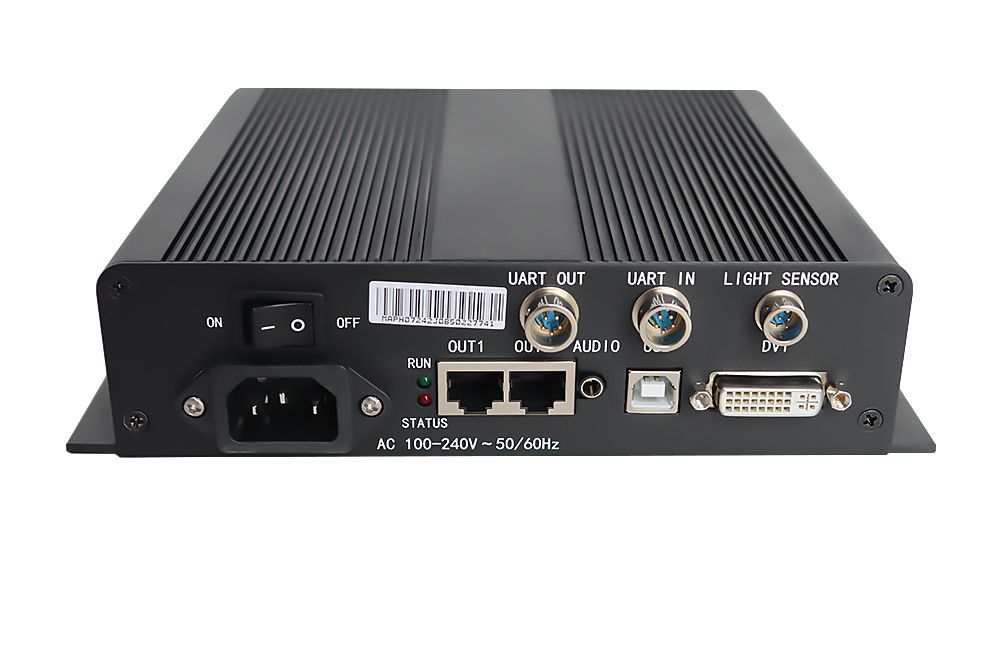

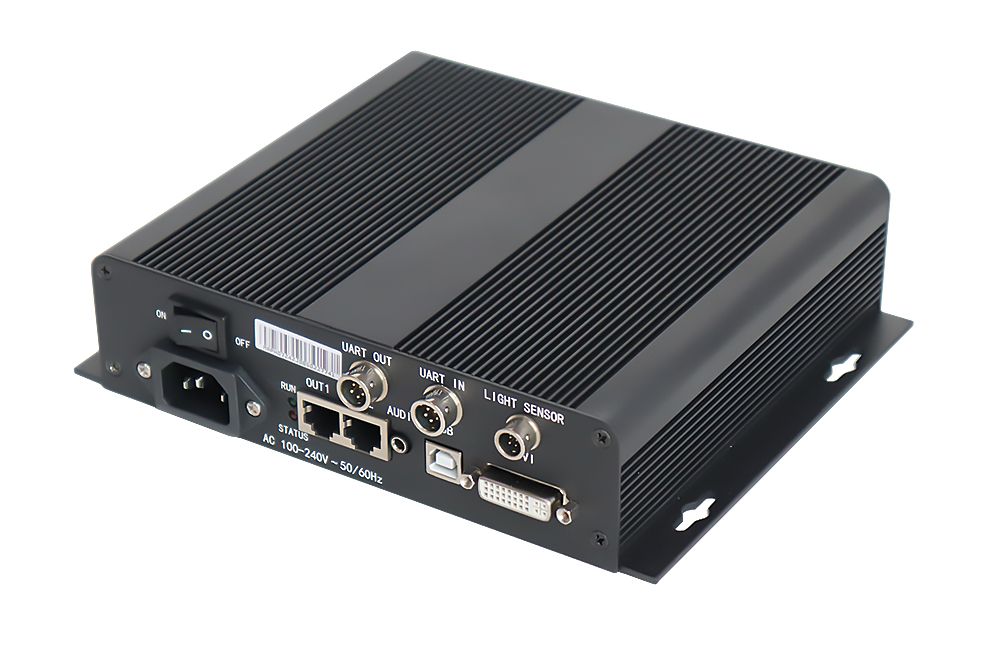

Features of NOVASTAR MCTRL300 LED Controller Box of LED Display:
- 1 × DVI input
- 1 × audio input
- 1 × type-B USB control port
- 1 × light sensor connector
- UART control ports to cascade devices for uniform control
- Dual Ethernet outputs
- Supports the new generation of NovaStar calibration technology.
- Supports resolutions up to 2048×668@60Hz and downward compatibility.

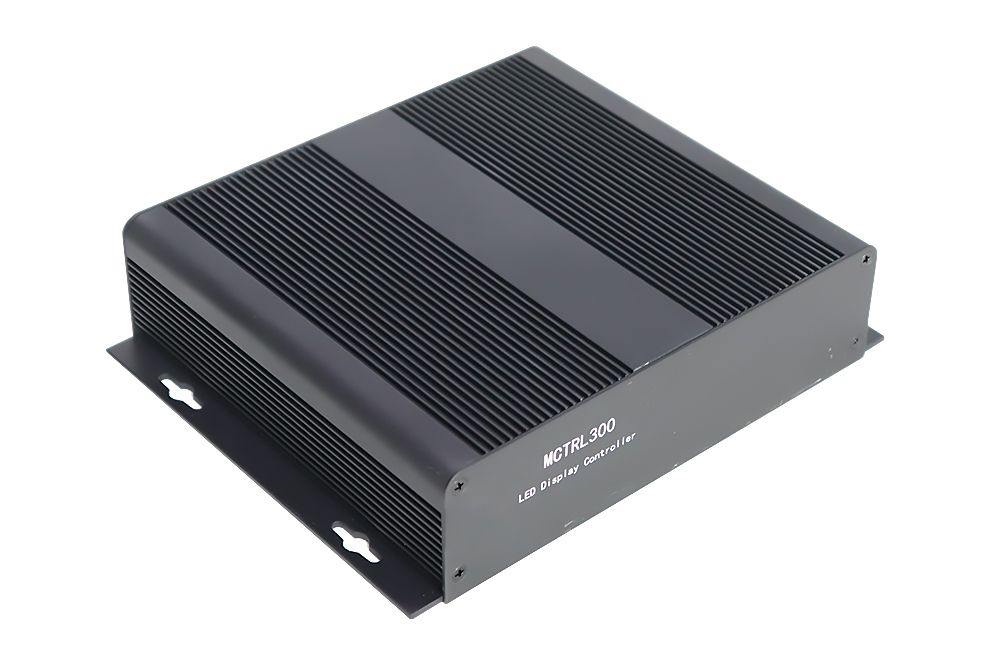

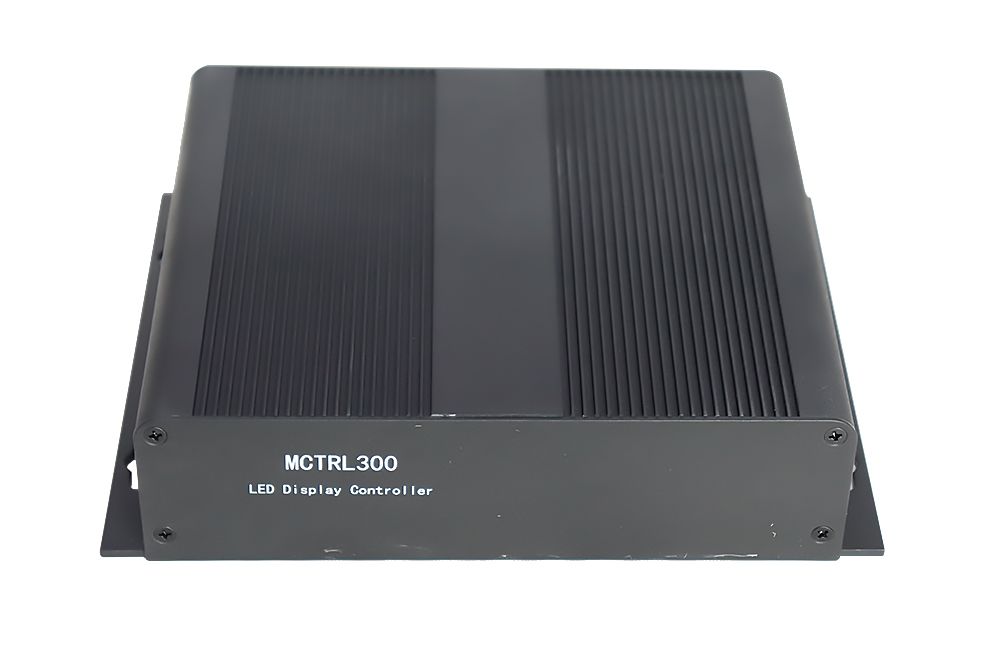

Novastar MCTRL300 LED Display Controller Details
Specification of Novastar MCTRL300 LED Display Controller:
| Electrical Parameters | Input voltage | AC 100 V–240 V, 50/60 Hz |
| Rated power consumption | 10 W | |
| Operating Environment | Temperature | -20°C–60°C |
| Humidity | 0% RH–90% RH, non-condensing | |
| Physical Specifications | Dimensions | 204 mm × 160 mm × 48 mm |
| Net weight | 1.04 kg | |
| Space Requirement | 1U | |
|
Packing Information
|
Outer Box | 280 mm × 210 mm × 120 mm, craft paper box printed with NOVASTAR |
|
Packing box
|
one power cord
one cascading cable (1 meter) one USB cable one DVI cable |
|
| Certifications | EAC, RoHS, EMC, FCC, IC, LVD, PFOS | |
