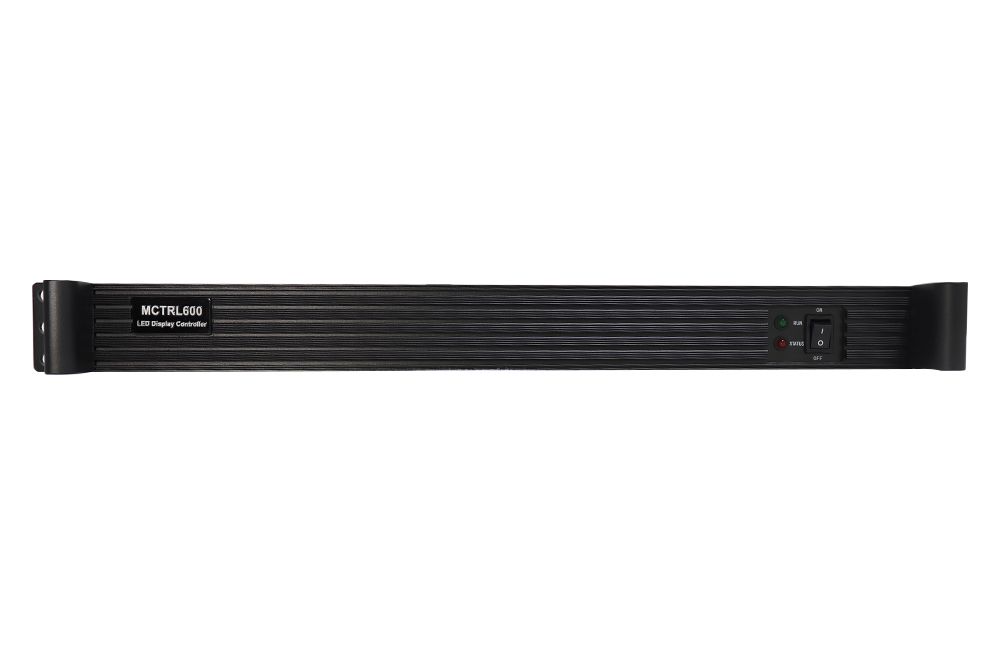

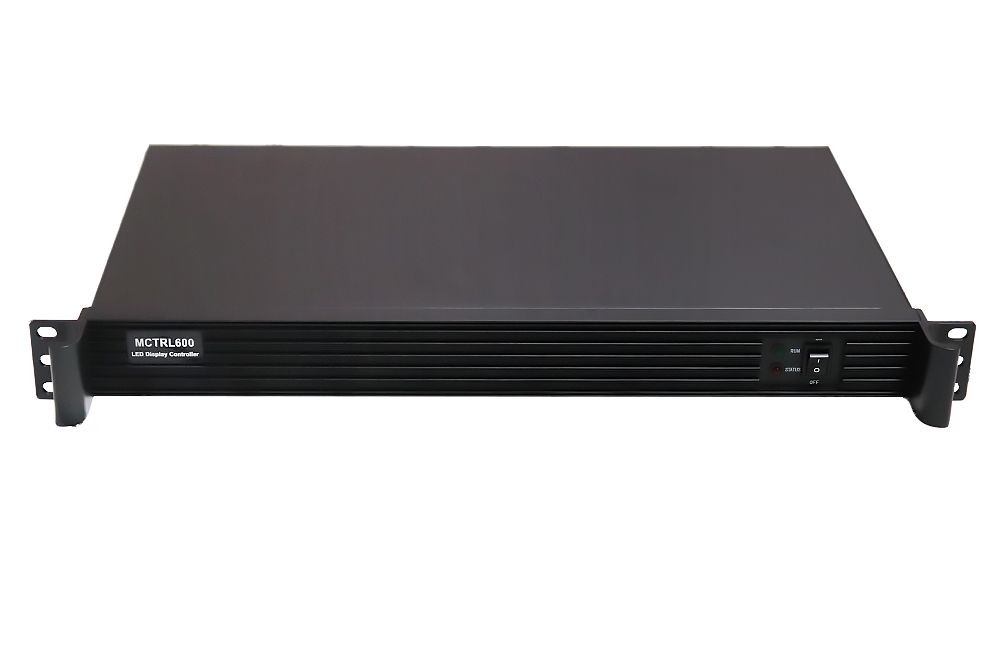

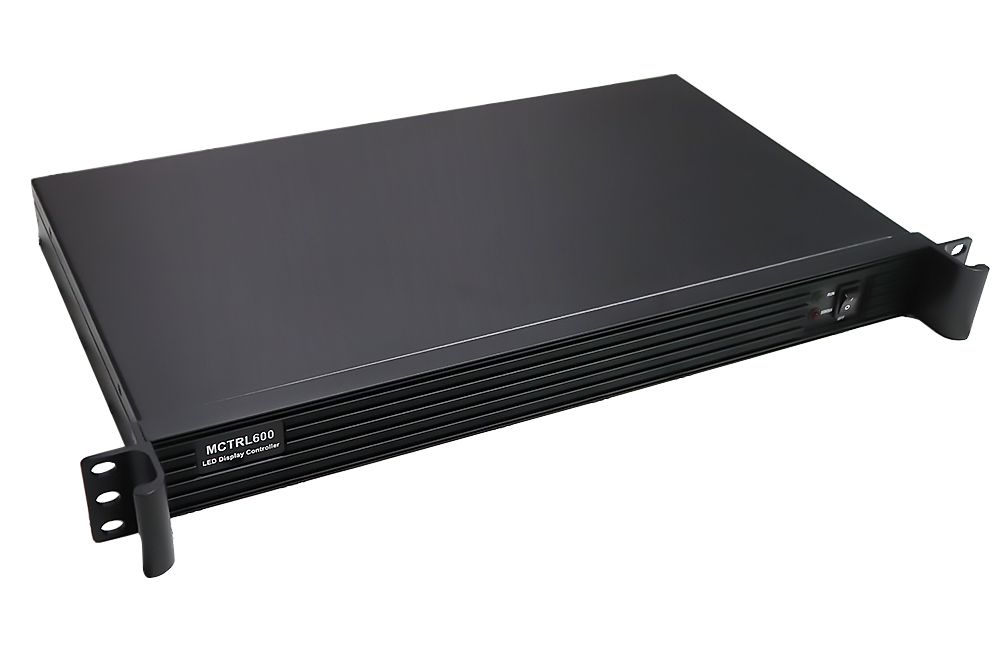

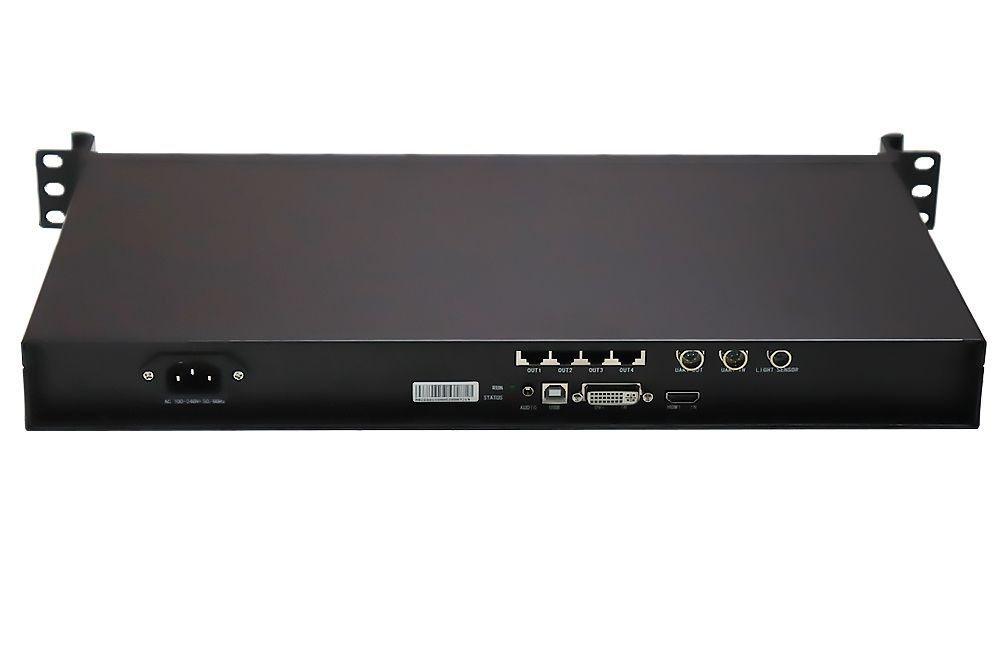

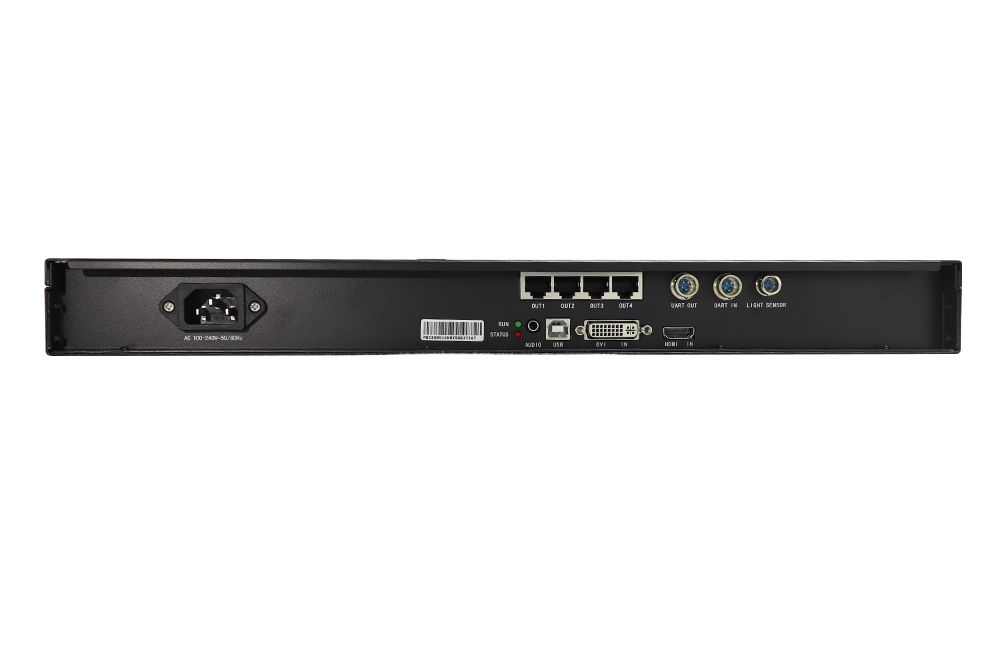

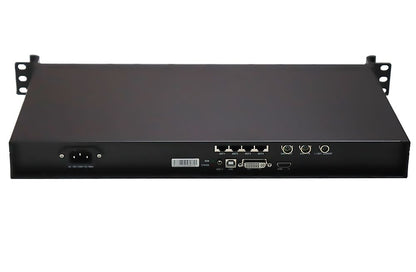

The MCTRL600 is an LED display controller developed by NovaStar. It supports 1x DVI input, 1x HDMI input, 1x audio input, and 4x Ethernet outputs. A single MCTRL600 supports input resolutions up to 1920×1200@60Hz.
The MCTRL600 communicates with PC via type-B USB port. Multiple MCTRL600 units can be cascaded via UART port.
As a highly cost-effective controller, the MCTRL600 can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.

MCTRL600 is advanced mode of Novastar LED display controllers. It supports extra large resolution.

It has the following characteristics:
1) HDMI/DVI input;
2) HDMI/external audio input;
3) 12bit/10bit/8bit HD video source;
4) Resolution supported:2048×1152，1920×1200，2560×960;
5) Resolution supported:1440×900; (12bit/10bit)
6) 1 light sensor interface;
7) Cascading supported;
8) 18bit gray scale processing and presentation;
9) Video format:RGB,YCrCb4:2:2,YCrCb4:4:4;
10)Standard 1U housing; independent power supply;
