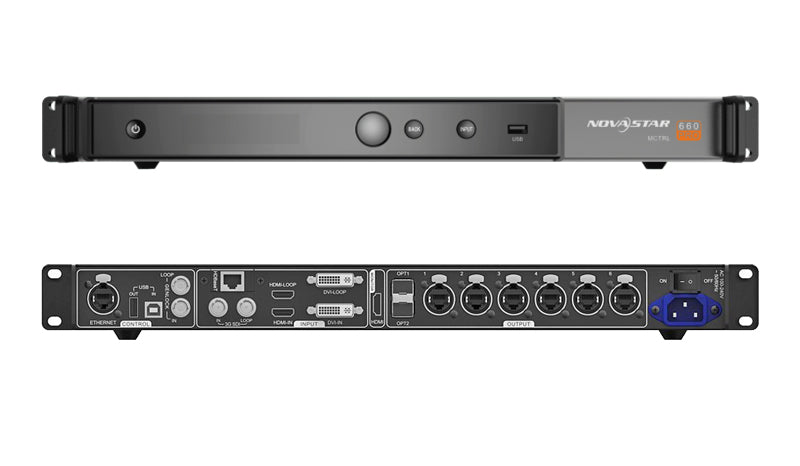

Novastar MCTRL660 Pro LED Controller Box

Novastar MCTRL660 Pro LED Controller Box

The MCTRL660 PRO is a professional controller developed by NovaStar. A single controller supports resolutions up
to 1920×1200@60Hz. Supporting image mirroring, this controller can present a variety of images and bring an
amazing visual experience to users.
The MCTRL660 PRO can work as a sending card and a fiber converter, and supports switching between the two
modes, meeting more diversified market demands.
The MCTRL660 PRO is stable, reliable and powerful, dedicated to providing users with an ultimate visual experience.
It can be mainly used in the rental and fixed installation applications, such as concerts, live events, security
monitoring, Olympic Games, various sports centers, and much more.

Novastar MCTRL660 Pro LED Controller Box has various video connectors:

1.  Input connectors: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × single-link DVI.
2.  Output connectors: 6 × Gigabit Ethernet ports, 2 × 10G optical ports.
3.  Loop output connectors: 1 × 3G-SDI LOOP, 1 × HDMI LOOP, 1 × DVI LOOP.

Novastar MCTRL660 Pro LED Controller Box has many industry-leading advanced technologies:

1.  Input of ultra-high color depths, such as 10-bit/12-bit 4:4:4, with input resolutions up to 1920×1080@60Hz, increasing color expression capabilities by 4096 times compared to 8-bit inputs, and presenting images with rich and delicate colors,smoother transitions, as well as clearer details.

2.  Independent Gamma adjustment of RGB, effectively controlling image nonuniformity under low grayscale and white balance offset to improve image quality

3.  A low latency of less than 1 frame (≤ 10 lines)

4.  Dual working modes: working as sending card and fiber converter

5.  One-click backup and recovery, quickly recovering previous screen configurations to deal with sudden on-site failure.

6.  Image mirroring, making stage effect more cool and dazzling

7.  Auto LED screen configuration

8.  Web control

9.  Pixel level brightness and chroma calibration

10. Monitoring of inputs

11.  Multiple MCTRL660 PRO units can be cascaded.


Input voltage 100 V–240 V AC
Rated power consumption 20.0 W
Operating temperature -20°C–60°C
Operating humidity 0% RH–90% RH, non-condensing
Dimensions 482.6mm×349.0mm×50.7mm
Net weight 4.6 kg
Space requirement 1U
Certifications –
Packing Carrying case: 550 mm × 440 mm × 175 mm, white cardboard box
Packing box: 530 mm × 140 mm × 410 mm, craft paper box
Accessory box: white cardboard box
1.  1 ×MCTRL660 PRO unit
2.  1 × Ethernet cable (1.5 m)
3.  1 × DVI cable (1.5 m, double magnetic ring design, EMC)
4.  1 × USB cable (1.5 m)
5.  1 × HDMI cable (1.5 m)
6.  1 × Power cord
$730.00 USD
$730.00 USD
Sale Sold out
Taxes included.

Novastar MCTRL660 Pro
View full details
Product Product subtotal Quantity Price Product subtotal
Novastar MCTRL660 Pro LED Controller Box
Novastar MCTRL660 Pro LED Controller BoxNovastar MCTRL660 Pro
Novastar MCTRL660 Pro LED Controller BoxNovastar MCTRL660 Pro
$730.00/ea		 $0.00
$730.00/ea $0.00

Description

The MCTRL660 PRO is a professional controller developed by NovaStar. A single controller supports resolutions up
to 1920×1200@60Hz. Supporting image mirroring, this controller can present a variety of images and bring an
amazing visual experience to users.
The MCTRL660 PRO can work as a sending card and a fiber converter, and supports switching between the two
modes, meeting more diversified market demands.
The MCTRL660 PRO is stable, reliable and powerful, dedicated to providing users with an ultimate visual experience.
It can be mainly used in the rental and fixed installation applications, such as concerts, live events, security
monitoring, Olympic Games, various sports centers, and much more.

Novastar MCTRL660 Pro LED Controller Box has various video connectors:

1.  Input connectors: 1 × 3G-SDI, 1 × HDMI 1.4a, 1 × single-link DVI.
2.  Output connectors: 6 × Gigabit Ethernet ports, 2 × 10G optical ports.
3.  Loop output connectors: 1 × 3G-SDI LOOP, 1 × HDMI LOOP, 1 × DVI LOOP.

Novastar MCTRL660 Pro LED Controller Box has many industry-leading advanced technologies:

1.  Input of ultra-high color depths, such as 10-bit/12-bit 4:4:4, with input resolutions up to 1920×1080@60Hz, increasing color expression capabilities by 4096 times compared to 8-bit inputs, and presenting images with rich and delicate colors,smoother transitions, as well as clearer details.

2.  Independent Gamma adjustment of RGB, effectively controlling image nonuniformity under low grayscale and white balance offset to improve image quality

3.  A low latency of less than 1 frame (≤ 10 lines)

4.  Dual working modes: working as sending card and fiber converter

5.  One-click backup and recovery, quickly recovering previous screen configurations to deal with sudden on-site failure.

6.  Image mirroring, making stage effect more cool and dazzling

7.  Auto LED screen configuration

8.  Web control

9.  Pixel level brightness and chroma calibration

10. Monitoring of inputs

11.  Multiple MCTRL660 PRO units can be cascaded.


Input voltage 100 V–240 V AC
Rated power consumption 20.0 W
Operating temperature -20°C–60°C
Operating humidity 0% RH–90% RH, non-condensing
Dimensions 482.6mm×349.0mm×50.7mm
Net weight 4.6 kg
Space requirement 1U
Certifications –
Packing Carrying case: 550 mm × 440 mm × 175 mm, white cardboard box
Packing box: 530 mm × 140 mm × 410 mm, craft paper box
Accessory box: white cardboard box
1.  1 ×MCTRL660 PRO unit
2.  1 × Ethernet cable (1.5 m)
3.  1 × DVI cable (1.5 m, double magnetic ring design, EMC)
4.  1 × USB cable (1.5 m)
5.  1 × HDMI cable (1.5 m)
6.  1 × Power cord
