Description
The MCTRL R5 is the first LED display controller. A single MCTRL R5 features a loading capacity of up to 3840×1080@60Hz.
It supports any custom resolutions within this capacity, meeting the on-site configuration requirements of ultra-long or ultra-wide LED displays.
Working with the A8s or A10s Plus receiving card, the MCTRL R5 supports free screen configuration in SmartLCT and allows for display rotation at any angle to present a variety of images and bring an amazing visual experience to users.
The MCTRL R5 can be mainly used in rental and fixed applications, such as concerts, live events, monitoring centers, Olympic Games and various sports centers.

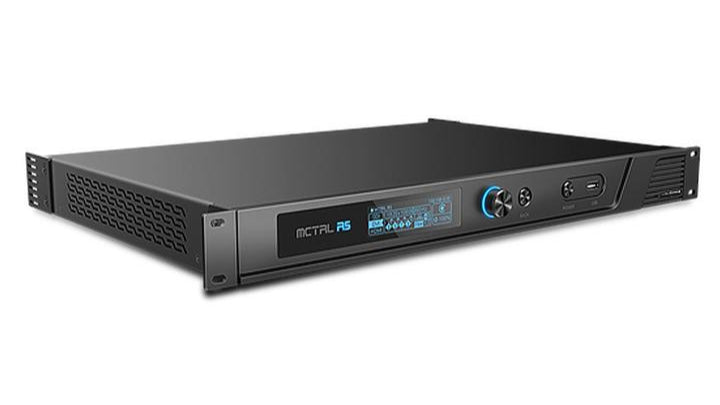

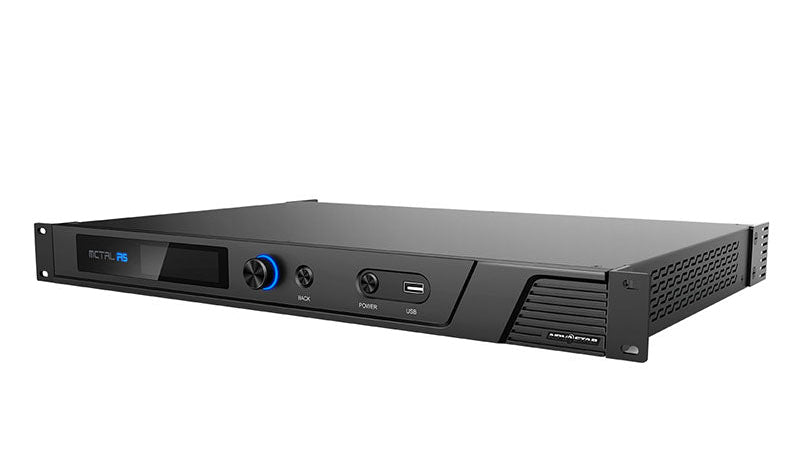

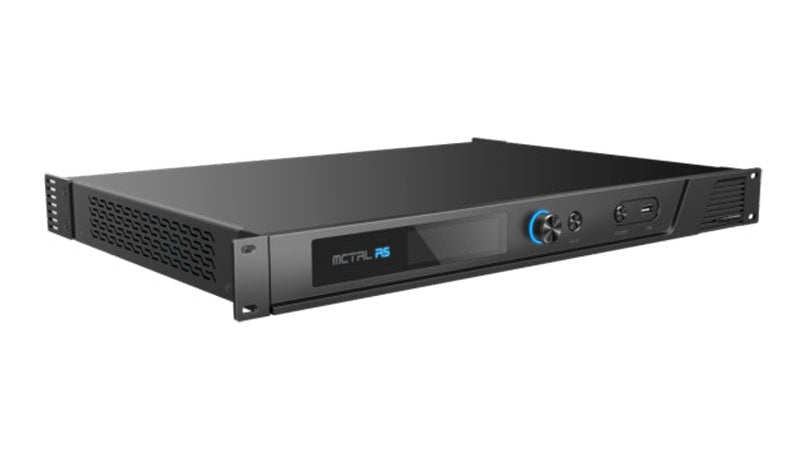

Novastar UHD MCTRLR5 Optical Fiber LED Display Controller Box
1.Rotate freely, any field on LED Display Rotate-able, any angle rotate, its offer every possible innovative display effect.
2. Large Load Capacity, max support 4k*1k@60Hz frame.
3. 10km long distance transmission, support faster and stable image.

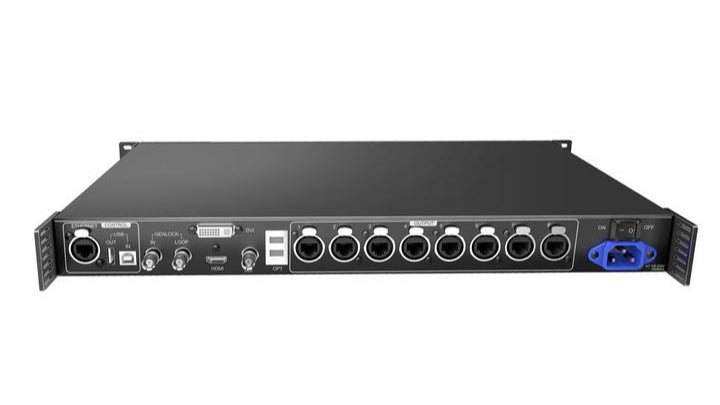

4. Input Port: HDMI1.4, Dual DVI, 6G SDI
Specifications
| Electrical Specifications | Input voltage | AC 100V-240V~50/60Hz |
| — | ||
| Rated power consumption | 25W | |
| Operating Environment |
Temperature | –20°C to +60°C |
| Humidity | 0% RH to 90% RH, non-condensing | |
| Physical Specifications |
Dimensions | 482.6 mm × 334.6mm × 52 mm |
| Net weight | 4.3kg | |
| Packing Information | Carrying case | 530 mm × 370 mm × 140 mm |
| Accessory box | 405 mm × 290 mm × 48 mm 1 × power cord 1 × Ethernet cable 1 × USB cable 1 × HDMI cable 1 × DVI cable |
|
| Packing box | 550 mm × 400 mm × 175 mm | |
