Description

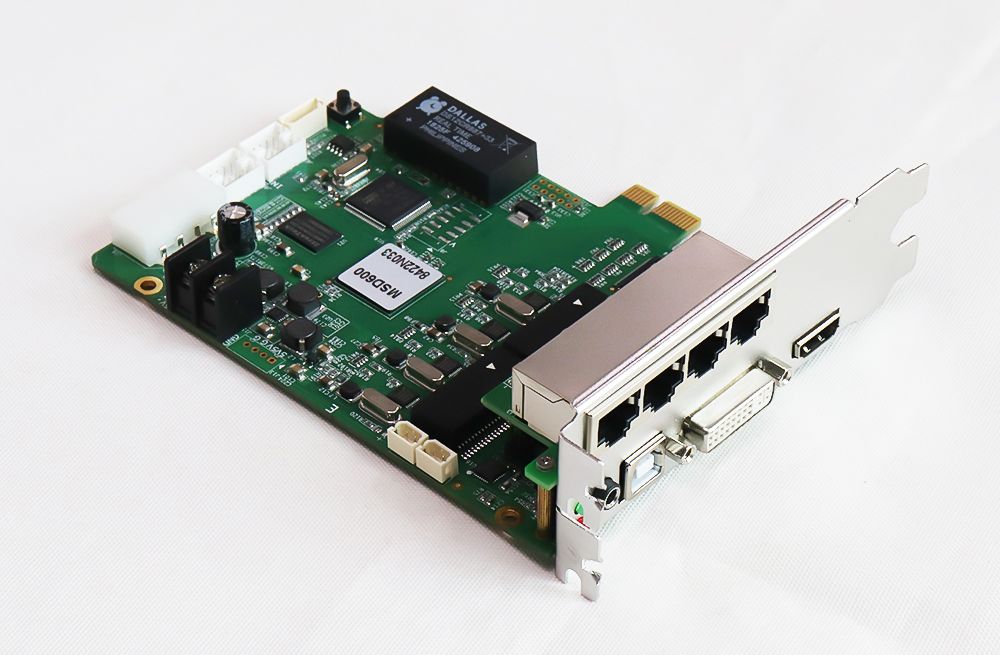

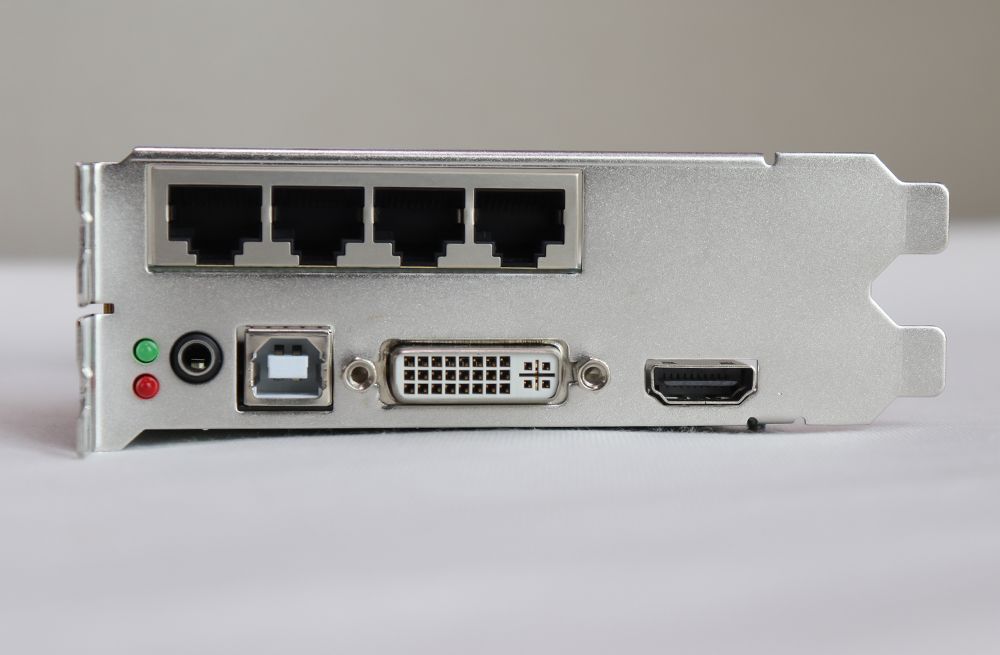

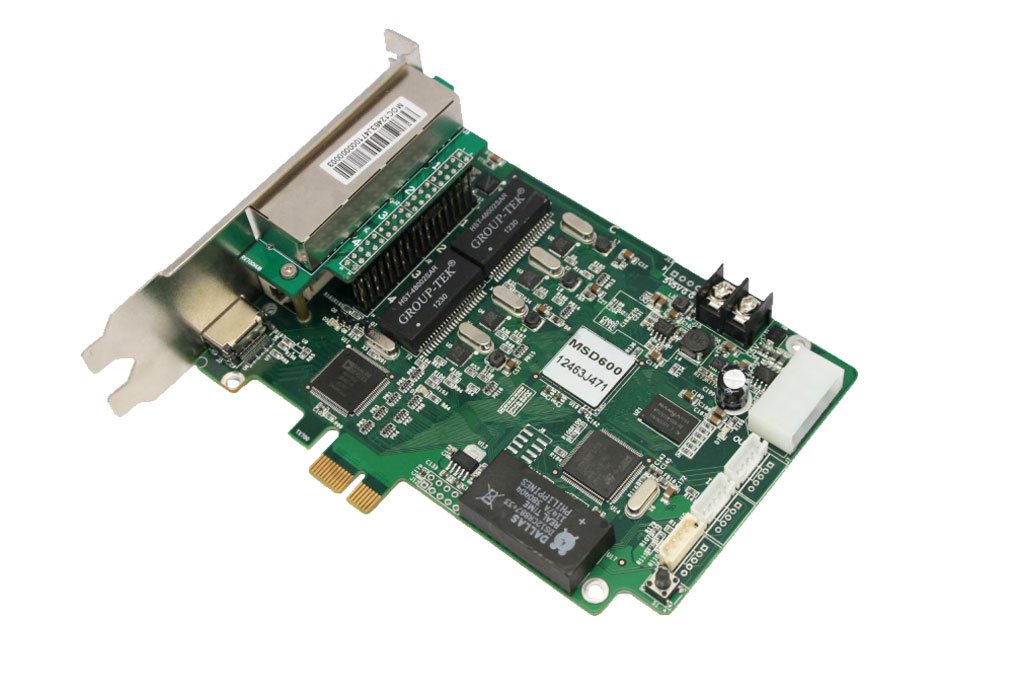

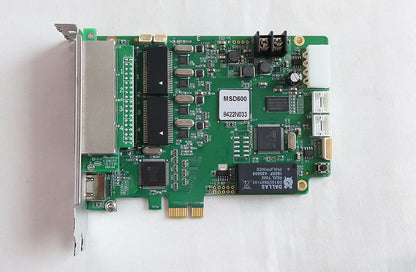

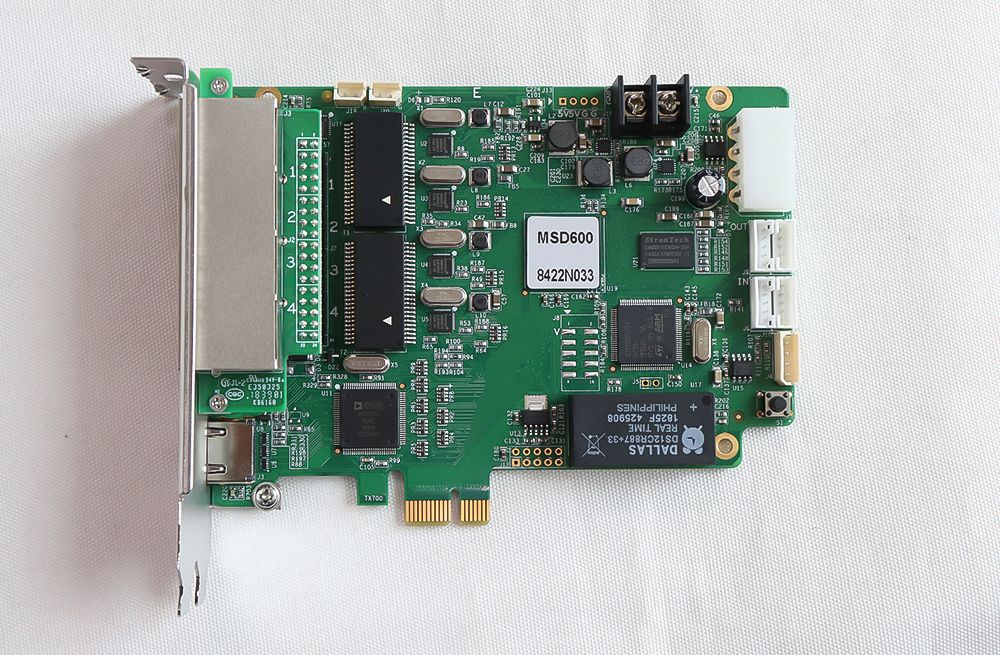

The MSD600 is a sending card developed by NovaStar. It supports 1x DVI input, 1x HDMI input, 1x audio input, and 4x Ethernet outputs. A single MSD600 supports input resolutions up to 1920×1200@60Hz.
The MSD600 communicates with PC via type-B USB port. Multiple MSD600 units can be cascaded via UART port.
As a highly cost-effective sending card, the MSD600 can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.
Novastar MSD600 sending card support 2.3 million pixel loading capacity, with resolutions of 2048*1152,1920*1200,2560*960;
CE / RoHS / EAC / FCC / IC
DVI video input
Audio transmission
Dual-Ethernet output, with dual-Ethernet cable hot backup and multiple controller hot backup.
USB port pc led controller, for cascading and control of multiple units.
1 × DVI video input and 1 × audio input
2 × Gigabit Ethernet output
1 × light sensor connector
Supports the new generation of pixel level calibration technology from Novastar to provide a fast and efficient calibration process.
Supports a variety of video formats, moderate msd600 Novastar price, and msd600 led software download free.
Remark: Novastar MSD600-1 difference to MSD600 sending card, without Audio input.
| Electrical Parameters | Input voltage | DC 3.3 V–5.5 V | |
| Rated current | 0.75 A | ||
| Rated power consumption | 3.5 W | ||
| Operating Environment | Temperature | -20°C to +75°C | |
| Humidity | 0% RH–90% RH, non-condensing | ||
| Dimensions | 137.9 mm × 99.7 mm × 14.0 mm | ||
| Net Weight | 135 g | ||
| Certifications | EMC, RoHS, PFoS, FCC | ||
| Packing Information | Each unit is shipped with a carrying case and packing box.
Packing rules: The product and accessories packed in the packing box and the packing box packed in the carrying case |
||
| Carrying case | 335 mm × 190 mm × 62 mm
Craft paper box printed with NOVASTAR One unit in each box Accessories: 1 × power cord, 1 × USB cable, 1 × DVI cable |
||
| Packing box | 400 mm × 365 mm × 355 mm
Craft paper box printed with NOVASTAR |
||
