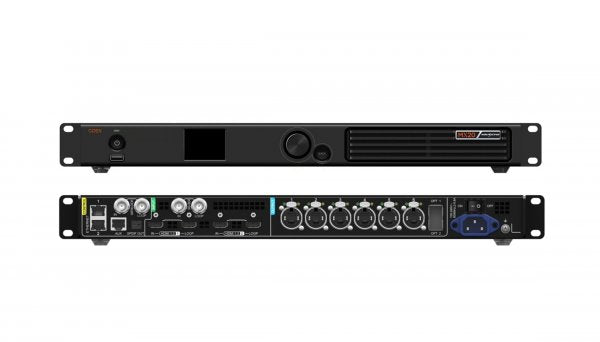

MX20 is a two-in-one control service under the new control system COEX series of Xi'an Nova Nebula Technology Co., Ltd. (hereinafter referred to as It integrates video processing and control functions, with 2 HDMI1.3, 1 3G-SDI input interface, 6 output network ports and 2 10G optical fiber interfaces.Supports the new visual management platform VMP to provide users with a better control experience.

Novastar MX20 video control server Features：
input Output

• 2 types of video input interfaces

− 2×HDMI 1.3 (with loop output)
− 1×3G-SDI (with loop output)

• 10bit/8bit video source input
• 3 types of output interfaces

− 6×Gigabit network ports, with a maximum load of 3.9 million pixels
− 2×10G optical port
− 1×SPDIF digital audio interface

• 3 types of control interfaces

− 1×Genlock synchronization signal input (with loop output)
− 2×Ethernet Ethernet control network port
− 1×AUX auxiliary interface

Advanced features

• 3 independent layers

Supports adding up to 3 layers and adjusting them according to Z order priority.

• Screen zoom

Supports 4 screen zoom modes, including custom, point-to-point, screen
The cloth tiles and covers the screen.

•  Color calibration

Supports 12-channel standard color processing derived from black and white and RGB three primary colors.
Precisely adjust hue, saturation and brightness.

• Full grayscale correction

With the Nova Nebula high-precision correction system and C3200 scientific-grade phase
The machine generates its own correction coefficient for each gray level to ensure that every
The uniformity of one level of gray scale significantly improves the display quality.

• Delay

− Supports low latency and can achieve low latency without reducing load. independent
In master control mode, 0 frame delay on the controller side (less than 1ms),
In video controller mode, there is a 1 frame delay on the controller side.
− Supports additional frame delay, the controller can add 0 to 2 frame delays Late.

• No rectangular frame restrictions

There is no rectangular frame limit when building a special-shaped screen. Leaving it blank does not count as loading. The network port
The load calculation is the sum of the pixels of all screen cabinets.

•  Frame rate adaptation

Adapt to various video input frame rates, including decimal frame rates. Support
User-defined frame rate and supports fine frame rate adjustment in 0.01Hz steps
Festival.

• Two equipment working modes

Supports two working modes: video controller and independent master control.
− In independent master mode, one frame delay can be reduced.
− In video controller mode, you can use functions such as multi-layer and zoom able.

• Display system monitoring

Support equipment status monitoring and display status monitoring, and automatically report
Fault and warning information.
