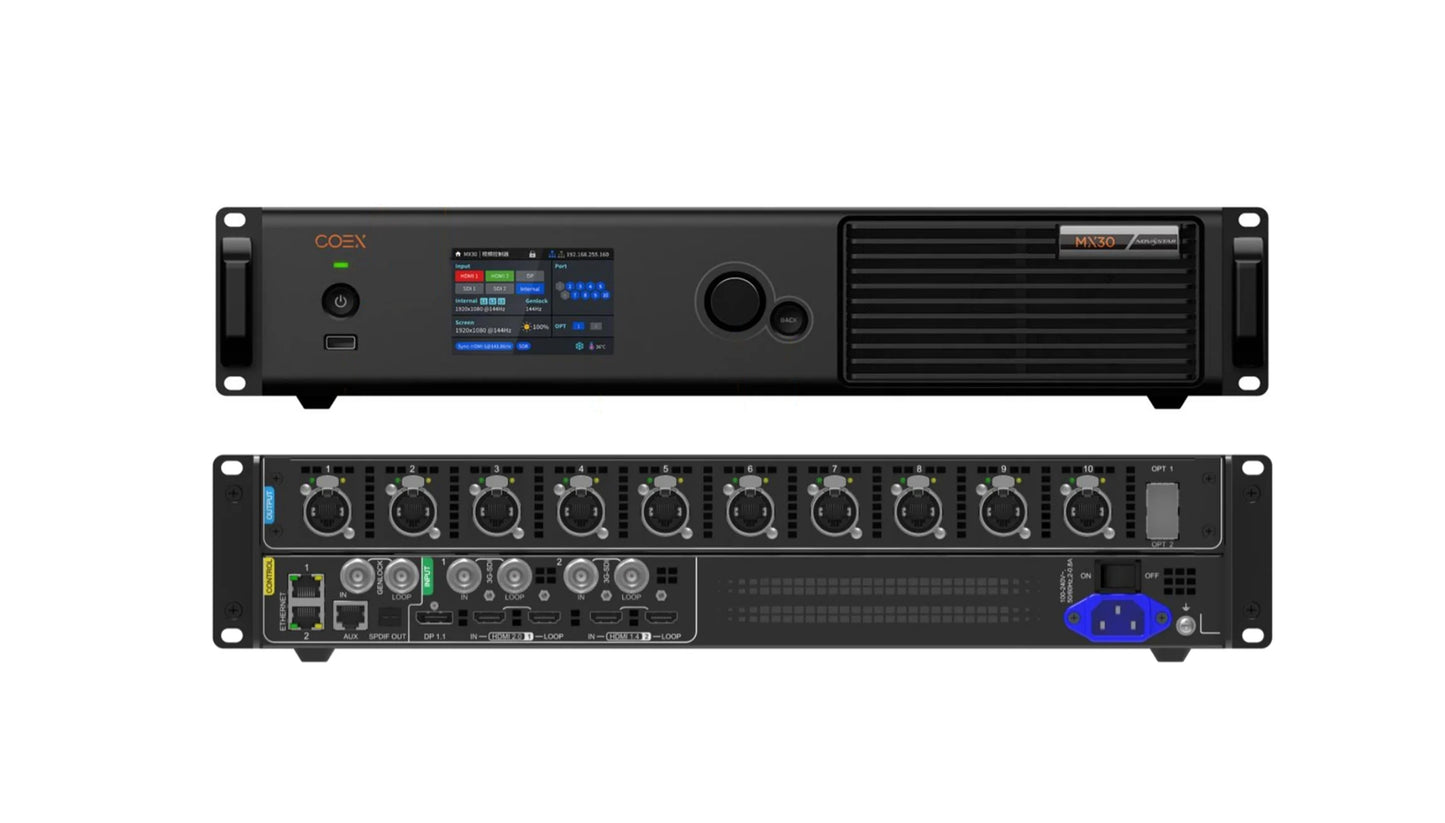

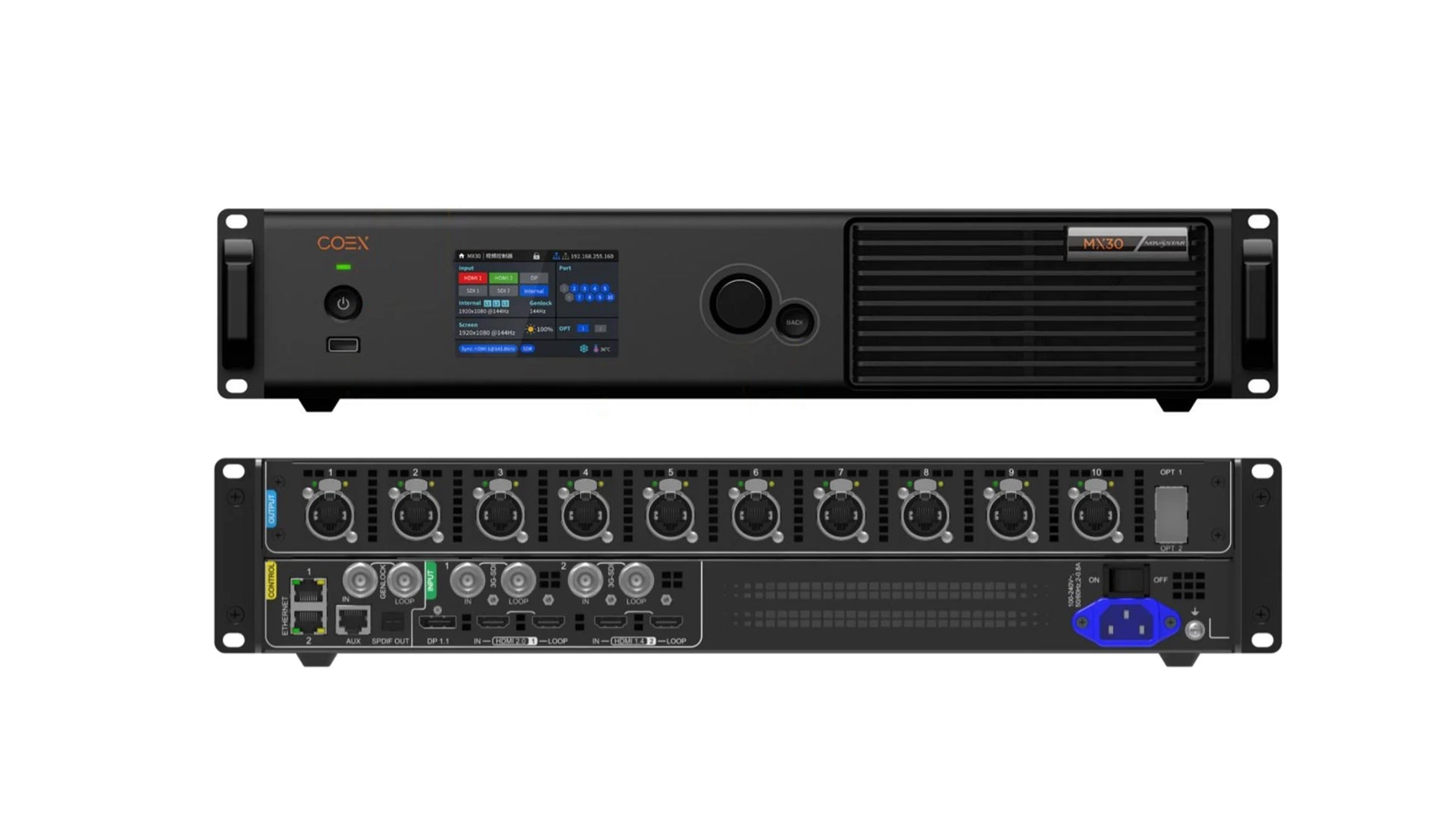

MX30 is a two-in-one control server under Xi'an Nova Nebula Technology Co., Ltd.'s new control system COEX series. It integrates video processing and control functions and has rich video input interfaces (HDMI 2.0, HDMI 1.4, DP 1.1, 3G-SDI), 10 outputs The network port and 2-way 10G optical fiber interface support the new visual management platform VMP, providing users with a better control experience.

Novastar MX30 video wall control server Features：

input Output：

• Various video input interfaces

− 1×HDMI 2.0 (with loop output)
− 1×HDMI 1.4 (with loop output)
− 1×DP 1.1
− 2×3G-SDI (with loop output)

• 10bit/8bit video source input
• 3 output interfaces

− 10×Gigabit network port, with a maximum load of 6.5 million pixels
− 2×10G optical port
− 1×SPDIF digital audio interface

• 3 control interfaces

− 1×Genlock synchronization signal input (with loop output)
− 2×Ethernet Ethernet control network port
− 1×AUX auxiliary interface

Advanced features：

• 3 separate layers

Supports adding up to 3 layers and adjusting them according to Z order priority.

• Screen zoom

Supports 4 screen scaling modes, including custom, point-to-point,
The curtain tiles and covers the screen.

• color calibration

Supports 12 standard colors derived from black and white and RGB three primary colors
Make precise adjustments to hue, saturation and brightness.

• HDR

− Support HDR10, compliant with SMPTE ST 2084 / SMPTE
ST 2086 standard.
− Support HLG.

• Full grayscale correction

With the Nova Nebula high-precision correction system and C3200 scientific-grade phase
The machine generates its own correction coefficient for each gray level to ensure
The uniformity of each level of gray scale significantly improves the display quality.

• Delay

− Supports low latency and can achieve low latency without reducing load. independent
In master control mode, controller side 0 frame delay (less than
1ms), in video controller mode, 1 frame delay on the controller side
Late.
− Supports additional frame delay, the controller can add 0 to 2 frame delays Late.

• No rectangular frame limit

There is no rectangular frame limit when building a special-shaped screen. Leaving it blank does not count as loading. The network
The port loading is calculated as the superimposed sum of the pixels of all screen cabinets.

• Frame rate adaptive

Adapt to various video input frame rates, including decimal frame rates. support
User-definable frame rate and support for fine frame rates in 0.01Hz steps
adjust.

• Two device working modes

Supports two working modes: video controller and independent master control.
− In independent master mode, one frame delay can be reduced.
− In video controller mode, you can use functions such as multi-layer and zoom able.

• display system monitoring

Support equipment status monitoring and display status monitoring, and automatically
Report fault and alarm information.
