Description
The MX6000 Pro offers many advantages such as highly integrated design, premium image quality, powerful performance, tremendous load capacity, and easy control. It is widely used in rental services for large events, xR/VP studios, large fixed installation applications, TV production, e-sports events, exhibition halls, and other application scenarios.
Novastar MX6000 Pro COEX Embedded Controller Server Features：
-

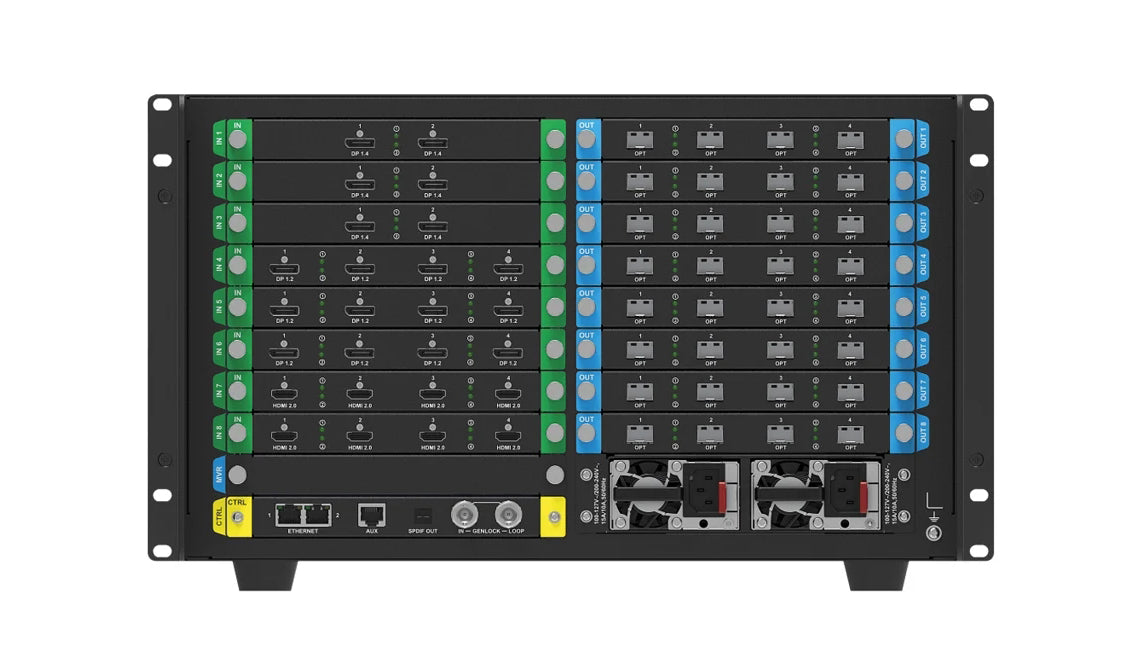

Inputs and Outputs
8x input card slots, users may choose input cards of the following 7 types:
− 4K input cards
4x HDMI 2.0, 4x DP1.2, 4x 12G-SDI
− 8K input cards
2x HDMI 2.1, 2x DP 1.4
− VoIP cards (Video over IP)
1x SMPTE ST 2110 (25G), 1x NDI -
Authentic 12bit video input
12-bit/10-bit/8-bit supported -
8x output card slots, users may choose input cards of the following 2 types:
− CX_1x40G_Fiber output card
Work with CVT8-5G fiber converter to achieve 5G transmission (capable of loading 2,600,000 pixels in a single Ethernet cable).
− MX_4x10G_Fiber output card
Work with CVT10 fiber converter to achieve 1G transmission (capable of loading 650,000 pixels in a single Ethernet cable). - Supports real-time previewing and monitoring of the video source input and LED screen display status.
- Supports frame rates of up to 360 Hz (max frame rate is decided by the screen’s hardware configuration)
