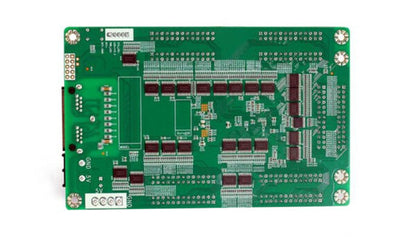

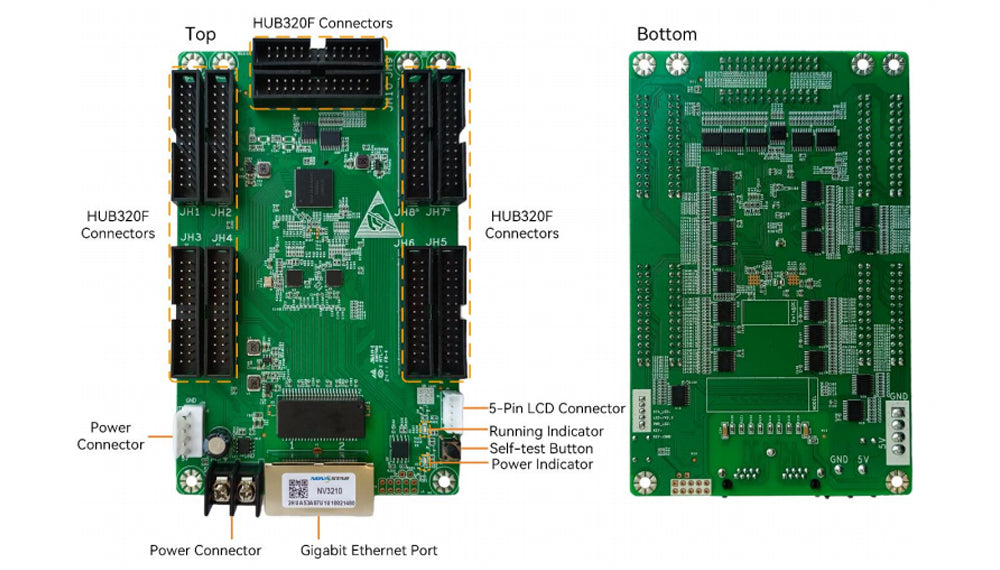

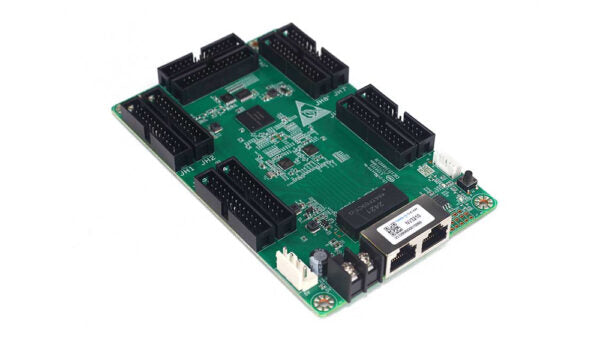

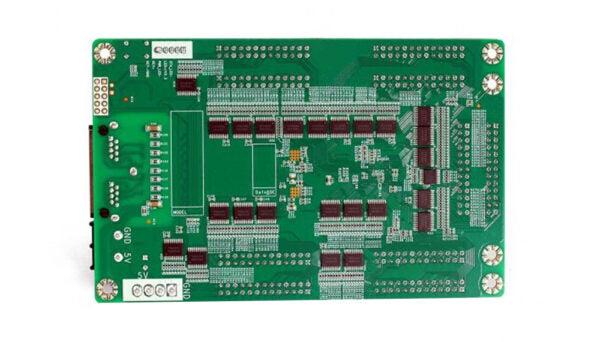

The NV3210 is a receiving card developed by Xi’an NovaStar Tech Co., Ltd. (hereinafter referred to as NovaStar). Supporting various functions such as Color Management, 18bit+, HDR, Pixel Level Brightness and Chroma Calibration, Quick Adjustment of Dark or Bright Lines, Multi-batch Adjustment, Low Latency, 3D, Individual Gamma Adjustment for RGB, and 90° Image Rotation, the NV3210 can significantly improve the display effect and user experience. The NV3210 uses 10 standard HUB320F connectors to ensure highly stable communication, supporting up to 40 groups of RGB real pixel data, 40 groups of 3-LED sub-pixel data, or 30 groups of 4-LED sub-pixel data.

Features:

Improvements to Display Effect
 Color Management
 18bit+
 HDR
 Pixel Level Brightness and Chroma Calibration
 Quick Adjustment of Dark or Bright Lines
 Multi-batch Adjustment
 Low Latency
 3D
 Individual Gamma Adjustment for RGB
 90° Image Rotation
Improvements to Maintainability
 Automatic Module Calibration
 Module Auto Light-up (dedicated firmware required)
 Module Flash Management
 One-click to Apply Calibration Coefficients in Module Flash
 Mapping 1.1
 Settings of a Stored Image in the Receiving Card
 Temperature and Voltage Monitoring
 Bit Error Detection
 Firmware Program Readback
 Configuration Parameter Readback
Improvements to Reliability
 Dual NCP Backup
 Loop Backup
 Dual Backup of Configuration Parameters
 Dual Program Backup

Specification Download:
Novastar NV3210 Led Display Receiving Card Specification
