Maximum Resolution: 640×128;
Media Format: Video, picture, text, weather, clock, countdown, Word, Excel, Txt etc;
Video Format: MPEG4, H.264, MV, VC1, MPEG1;
Gray scale Levels: 65536 maximum;
PWM Levels For Brightness Adjustment: 256;
LED Status Detection;

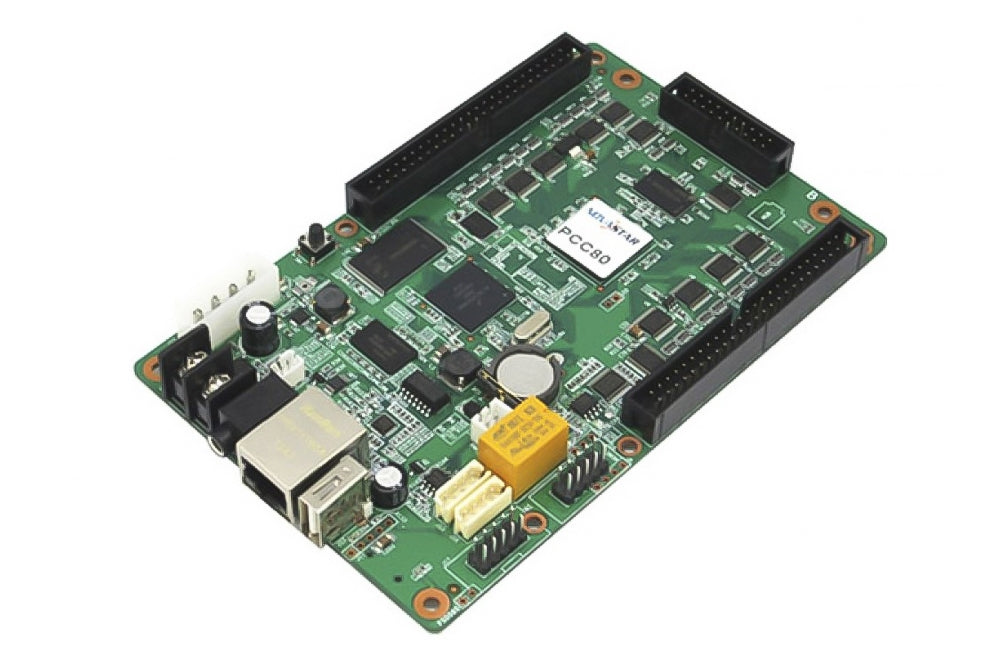

NOVASTAR PCC80 Full Color Asynchronous LED Display

Generator Introduction:

1) Maximum Resolution: 640×128;

2) Cascade Levels with Ethernet Cable:

Cascading no supported;

3) Drive IC supported: MBI5041/5042/5045,  MY9262,  MY9221,  MBI505X,  MBI515X,

MY9266/9268/9269,  SUM2030,  TLC59282/  59283,

MY9868, SUM2016/ 2017, MBI5020/ 5024/ 5034/ 5035

and many more;

4) Media Format: Video, picture, text, weather, clock,

countdown, Word, Excel, Txt, etc.

5) Video Format: MPEG4, H.264, MV, VC1, MPEG1

6) LED Displays Supported: Full-color LED display

from static to 1/32 scan, with real pixels.

7) Grayscale Levels: 65536 maximum, configurable

8) Refresh Rate: 6000Hz maximum for static

LED display, 3840Hz for scanning LED display

9) Integrated Power Switch Management: 1

10) PWM Levels For Brightness Adjustment: 256

11) Auto Brightness Adjustment: Supported

12) LED Status Detection: Open/ Short-Circuit checking (with MBI5034/ 5036/ 5039/ 5040，DM13H)

13) Brightness Loss for Calibration: 5%~8%

14) Integrated  Audio Output: Supported

15) Working Temperature: -20oC ~ 80oC

16) Power Supply Voltage: 4V ~ 5V
