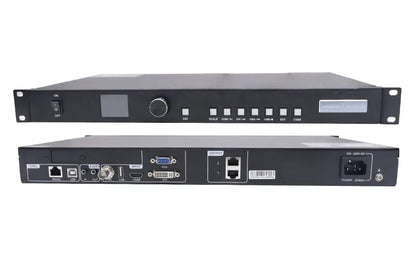

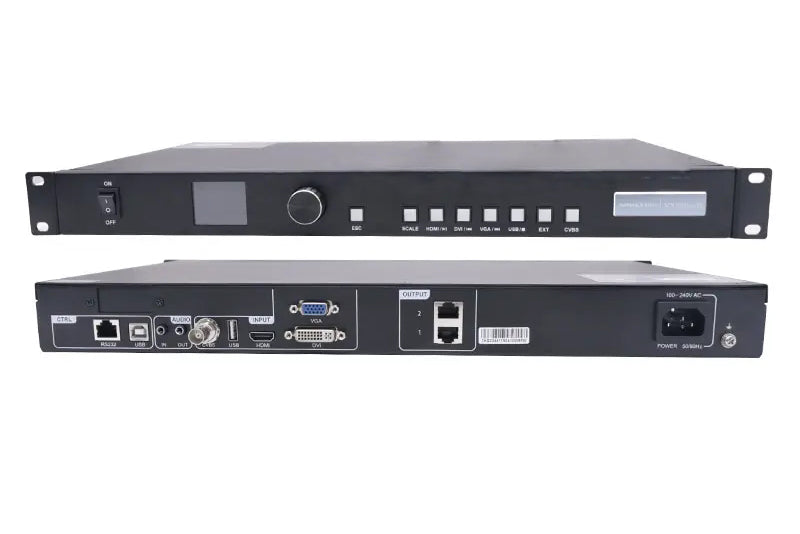

The VX200s-N all-in-one controller is a pure hardware device that is easy to operate. It features different types of high-definition input connectors, and integrates professional LED screen control technologies and video processing capabilities, making on-site installations effortless. Designed with an industrial-grade casing, the VX200s-N is well suited for complex operational environments and can be widely used in applications such as malls, hotels, exhibition sites and TV studios.

Features

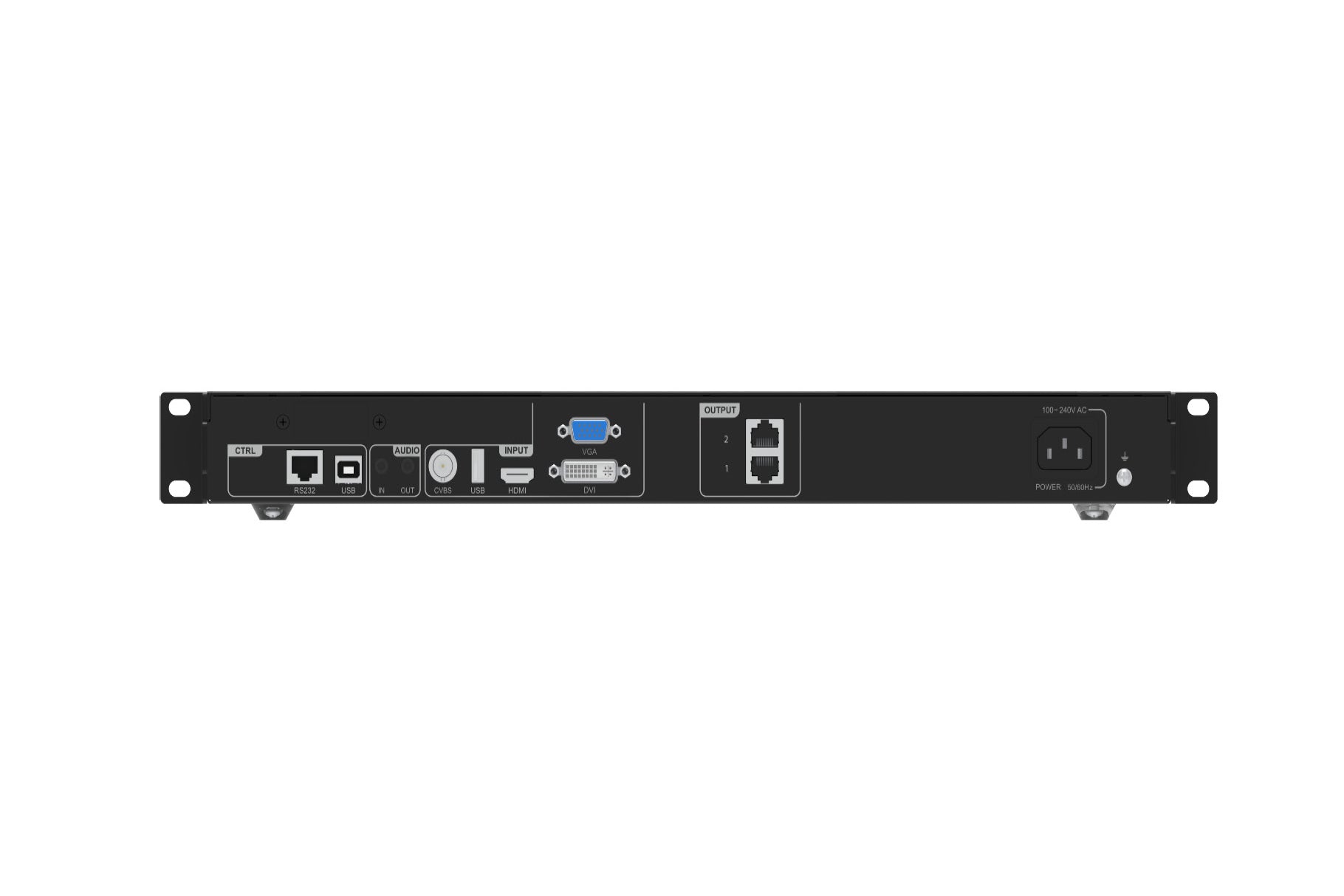

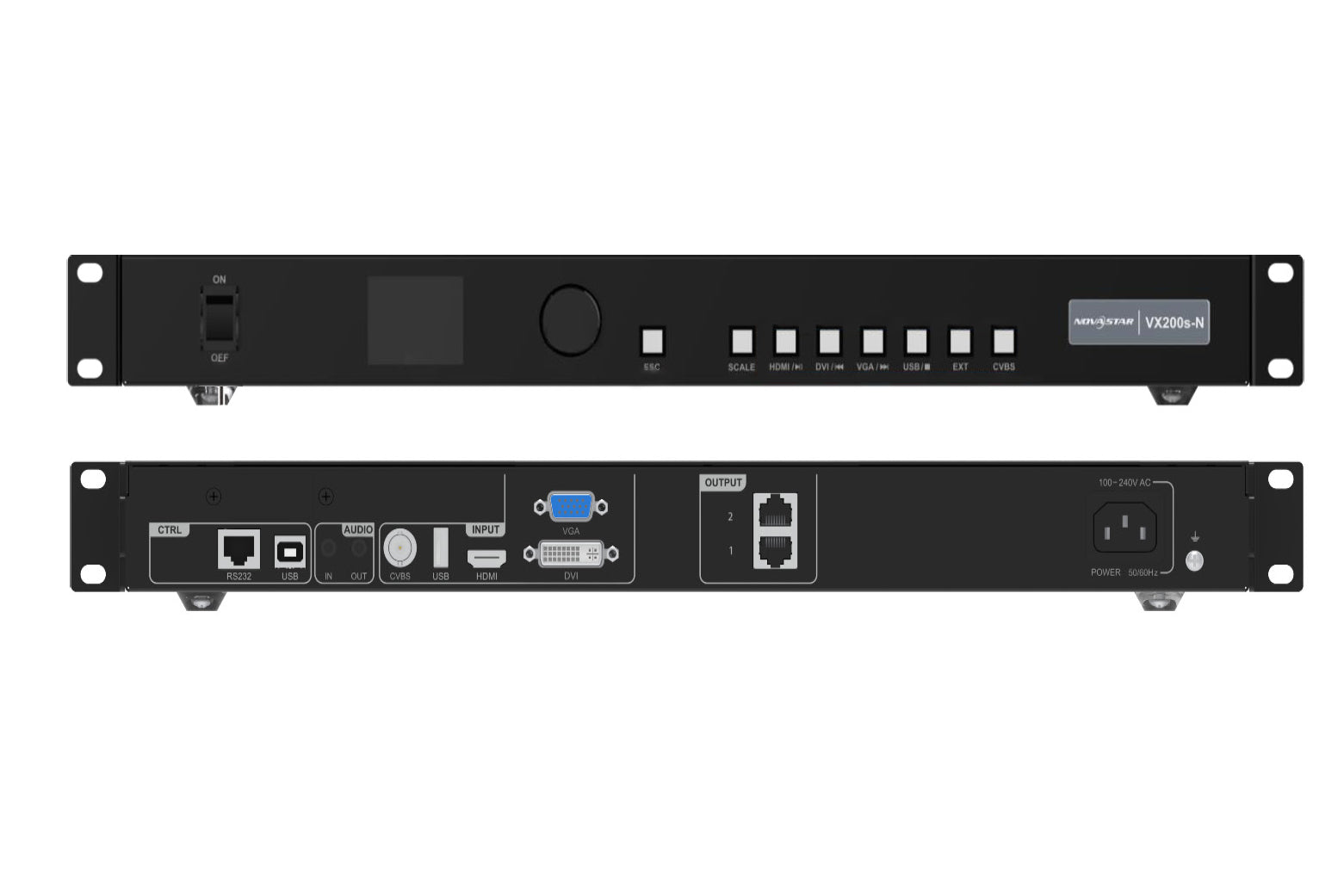

.  Up to five input connectors: 1x DVI, 1x HDMI 1.3, 1x VGA, 1x USB, 1x CVBS

. Adjustable layer position and size, and input cropping supported

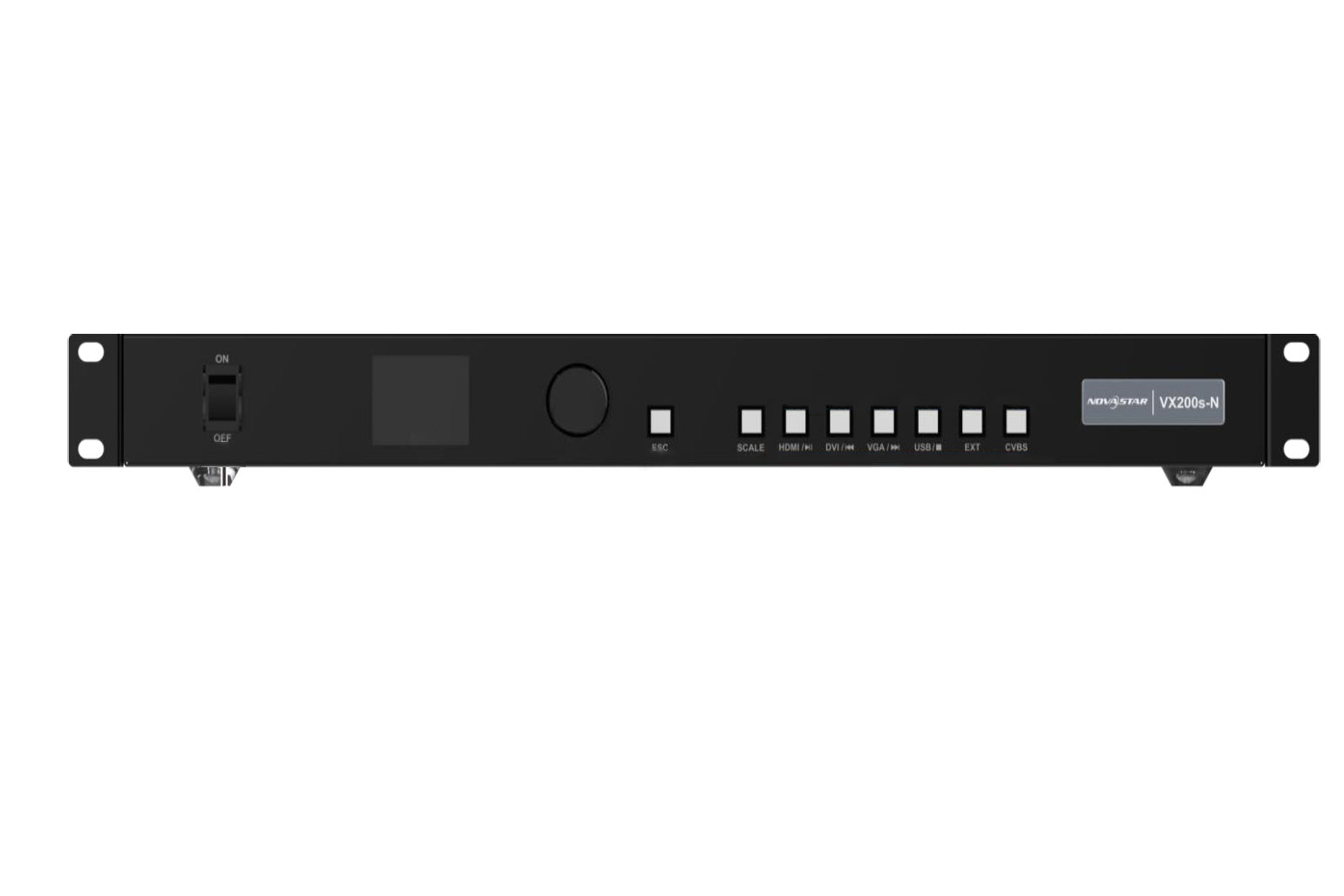

.  Press input source buttons to easily switch between the input sources.

.  External independent audio

.  EDID management supported

.  Personalized image scaling: Full screen, pixel to pixel and custom

 . Quick configuration to easily configure the LED screen

. 2x Ethernet output connectors with a loading capacity of up to 1.3 million pixels

.  Easy preset saving and loading Up to 6 user-defined presets

.  LED screen color adjustment, such as brightness and Gamma

. Controlled via central control devices

Specification Download:
VX200s-N All-in-One Controller Specifications-V1.0.0
