Description

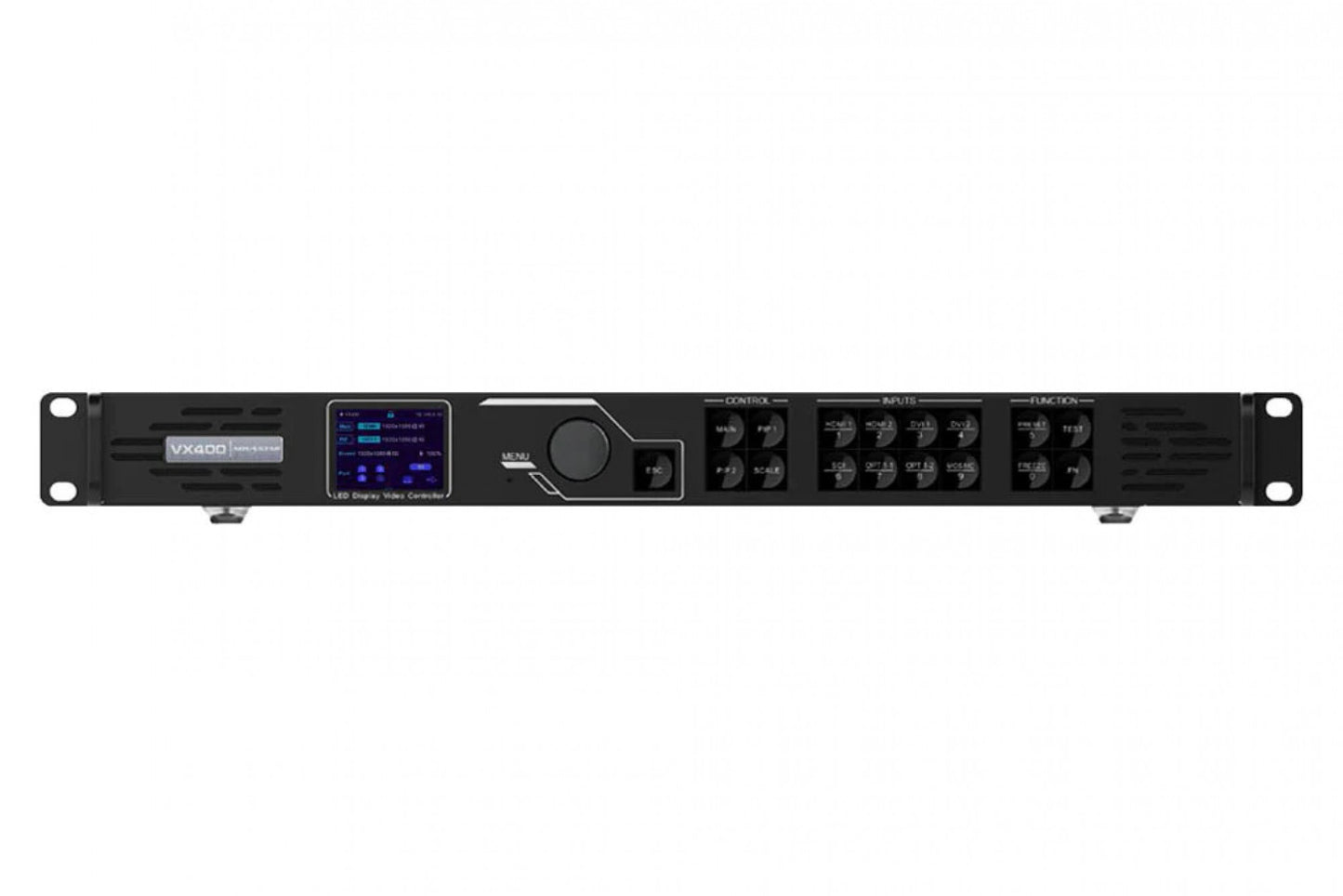

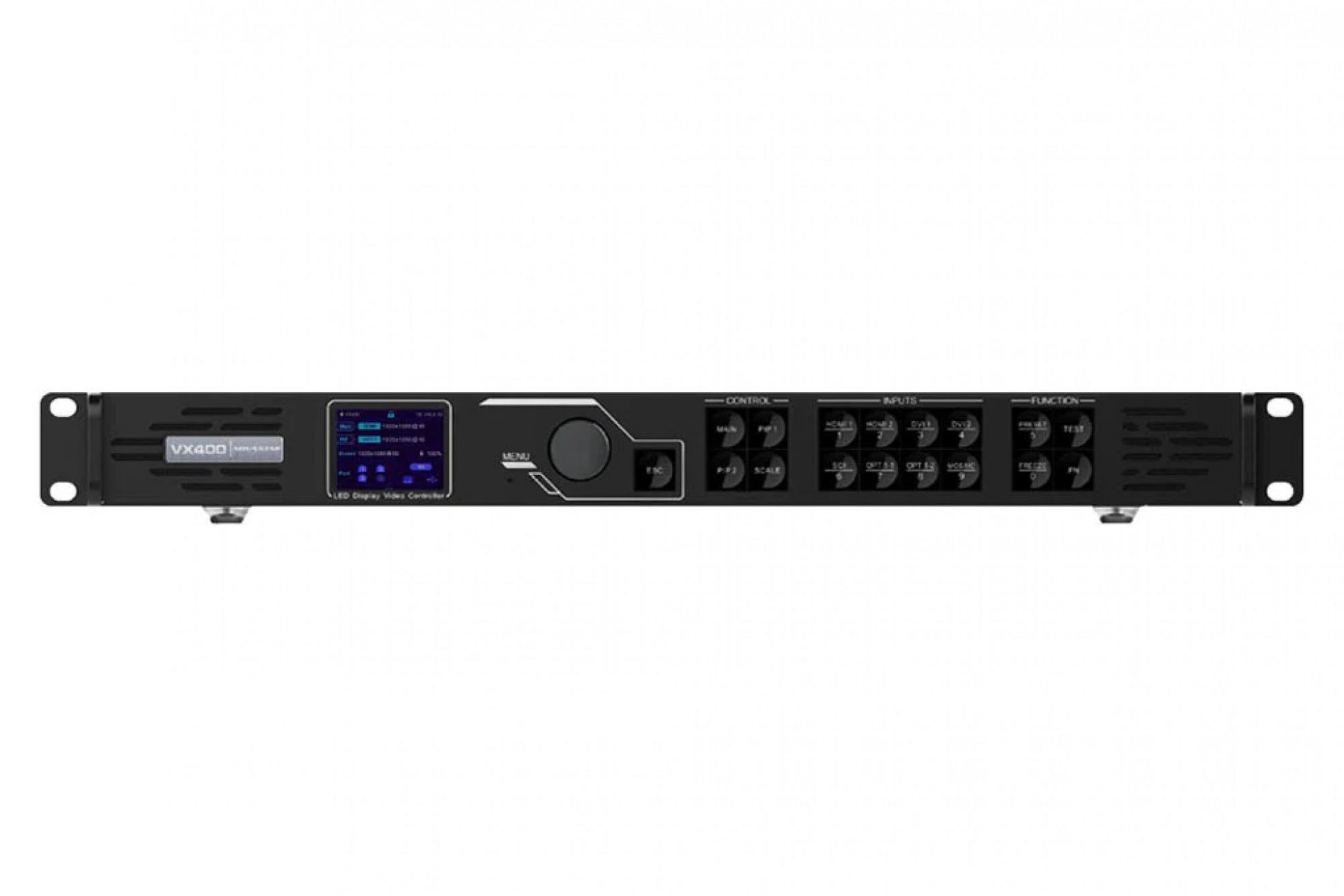

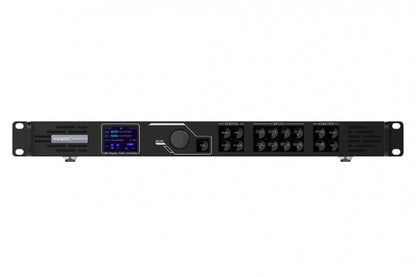

The VX400 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 4 Ethernet ports and supports video controller, fiber converter and Bypass working modes. A VX400 unit can drive up to 2.6 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
1.Power on the VX400 and LED screen.
2.On the home screen, press the knob to enter the main menu screen.
3.Go to Screen Configuration> Quick Configuration to enter the quick configuration screen.
4.Set Cabinet Row Qty and Cabinet Column Qty according to the actual row and column quantities of the cabinets.
5.Rotate the knob to select Port 1 Cabinet Qty to set the quantity of the cabinets loaded by Ethernet port 1.
| Novastar VX1000/VX600/VX400 All in one video processor Comparison | |||
| Device Model | VX1000 | VX600 | VX400 |
| Loading Capacity | 6.5 million pixels | 3.9 million pixels | 2.6 million pixels |
| Max Width & Height | Max width: 10240 pixels Max height: 8192 pixels |
||
| Layers | 3x 4K×1K | 3x 2K×1K | 2x 2K×1K |
| Input Connectors | 1x 3G-SDI 2x HDMI 1.4 2x DVI（HDMI 1.4） 1x OPT1 |
1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1 |
1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1 |
| Output Connectors | 10x Ethernet Ports 1x HDMI1.3 1x HDMI1.4 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |
6x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |

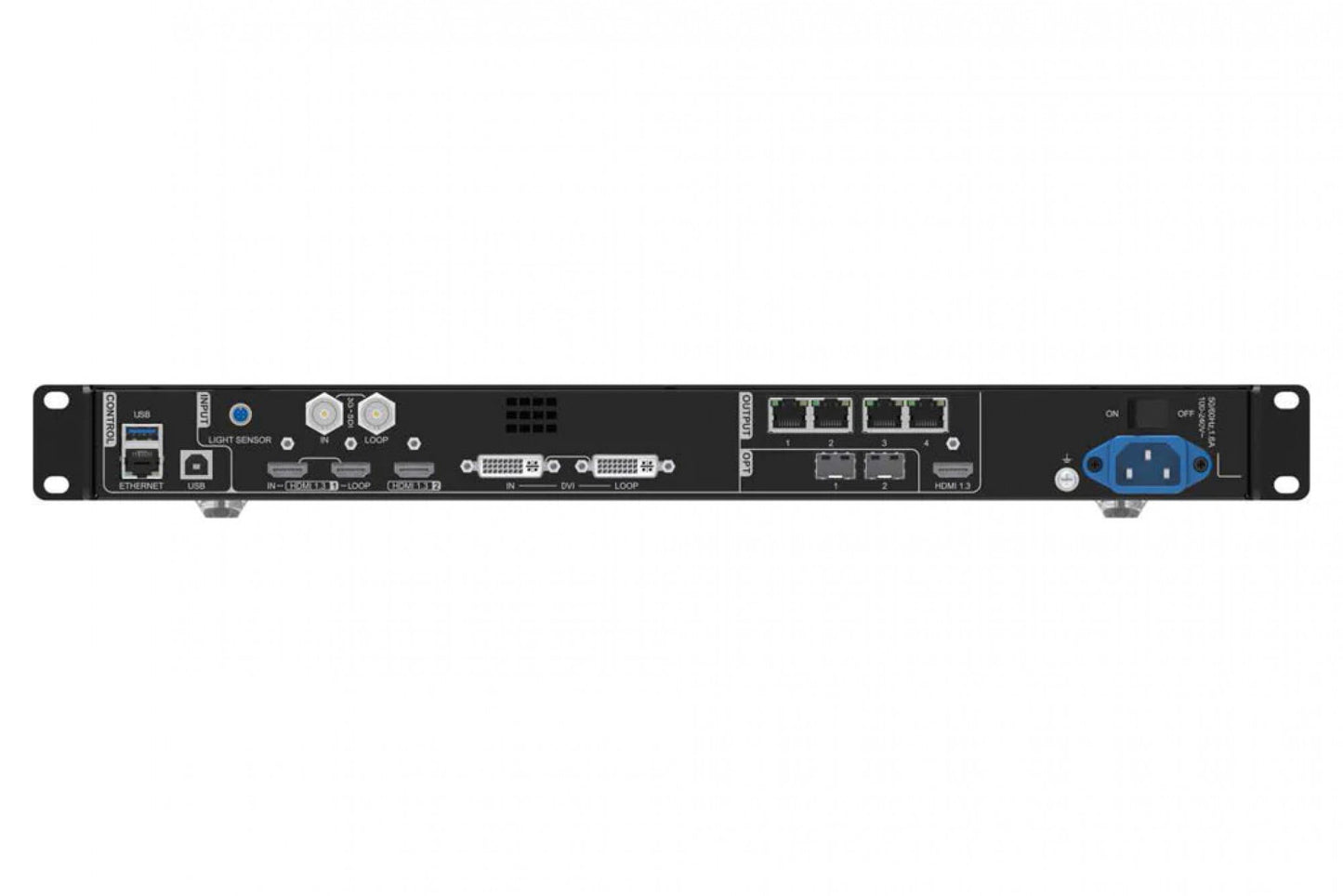

4x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |
| Presets | 10 | 10 | 10 |
| Control Connectors | 1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP) |
1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP) |
1x Ethernet Port 2x USB (input & output) 1x Light Sensor |
Specifications Download
Novastar VX400 All-in-One LED video Controller Specifications
