Description
The VX4S-N is a professional LED display controller developed by NovaStar. Besides the function of display control, it also features powerful image processing capabilities. With excellent image quality and flexible image control, the VX4S-N greatly meets the needs of the media industry. 4x Gigabit Ethernet outputs, capable of loading up to 2,300,000 pixels
Novastar VX4S-N HD LED Display Video All-in-One Video processor Features:
Quick screen configuration supported Computer software for system configuration is not necessary.
Seamless high-speed switching and fade effect supported, to present professional-quality images
Adjustable PIP position and size, free control at will
Nova G4 engine adopted, enabling exquisite image display with a good sense of depth, without flickering and scanning lines
White balance calibration and color gamut mapping based on different features of LEDs used by screens, to ensure the reproduction of true colors
Independent external audio output supported
High bit-depth video input: 10-bit and 8-bit
Multiple device units connected for image mosaic
NovaStar's new-generation pixel level calibration technology adopted, ensuring a fast and efficient calibration process
An innovative architecture adopted, allowing for smart screen configuration
The screen debugging can be completed within several minutes, which greatly shortens the preparation time on the stage.

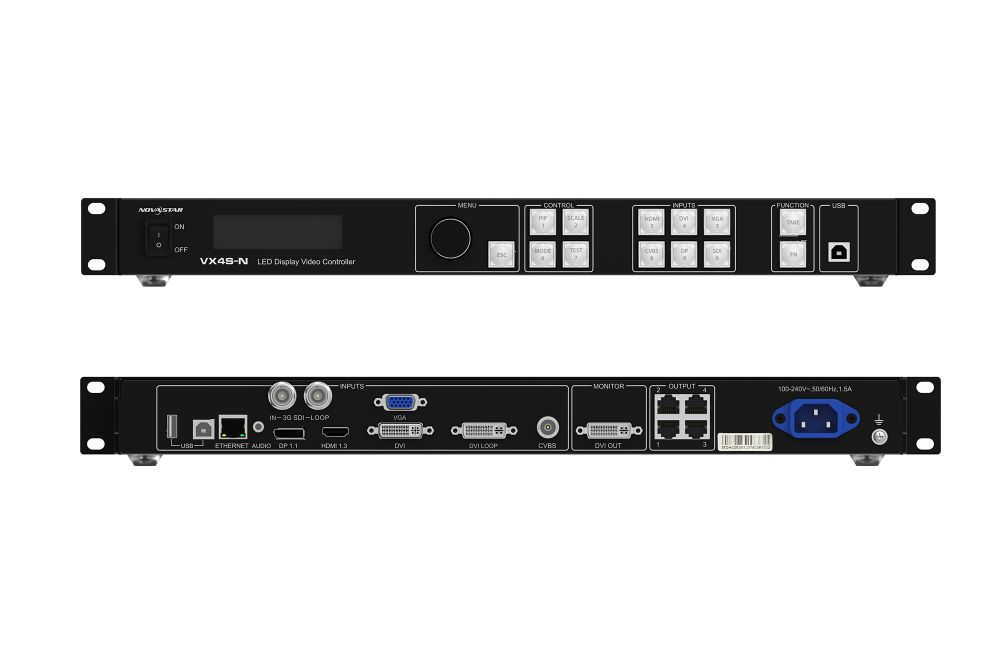

Industry-standard input connectors
1x CVBS
1x VGA
1x DVI (IN+LOOP) 1x HDMI 1.3
1x DP 1.1
1x 3G-SDI (IN+LOOP)
Novastar VX4S-N HD LED Display Video All-in-One Video processor Parameter
| INPUT | ||
| Connector | Qty | Description |
| 3G-SDI | 1 | Up to 1920×1080@60Hz input resolution |
| Support for progressive and interlaced signal inputs | ||
| Support for deinterlacing processing | ||
| Support for loop through | ||
| AUDIO | 1 | A connector for connecting the external audio |
| VGA | 1 | VESA standard, up to 1920×1200@60Hz input resolution |
| CVBS | 1 | A connector for accepting PAL/NTSC standard video inputs |
| DVI | 1 | VESA standard, up to 1920x1200@60Hz input resolution |
| Support for custom resolutions | ||
| Max. width: 3840 pixels (3840×652@60Hz) | ||
| Max. height: 1920 pixels (1246×1920@60Hz) | ||
| HDCP 1.4 compliant | ||
| Support for interlaced signal inputs | ||
| Support for loop through | ||
| HDMI1.3 | 1 | Up to 1920×1200@60Hz input resolution |
| Support for custom resolutions | ||
| Max. width: 3840 pixels (3840x652@60Hz) | ||
| Max. height: 1920 pixels (1246×1920@60Hz) | ||
| HDCP 1.4 compliant | ||
| Support for interlaced signal inputs | ||
| DP1.1 | 1 | Up to 1920×1200@60Hz input resolution |
| Support for custom resolutions | ||
| Max. width: 3840 pixels (3840x652@60Hz) | ||
| Max. height: 1920 pixels (1246×1920@60Hz) | ||
| HDCP 1.3 compliant | ||
| Support for interlaced signal inputs | ||
| OUTPUT | ||
| Ethernet port | 4 | 4 ports load up to 2,300,000 pixels. |
| Max. width: 3840 pixels | ||
| Max. height: 1920 pixels | ||
| Only Ethernet port 1 can be used for audio output. When the multifunction card is used for audio decoding, the card must be connected to the Ethernet port 1. | ||
| DVI Out | 1 | A connector for monitoring the output images |
| CONTROL | ||
| Ethernet | 1 | Connect to the control PC for communication. |
| Connect to the network. | ||
| USB (Type-B) | 1 | Connect to the control PC for device control. |
| Input connector to link another device | ||
| USB (Type-A) | 1 | Output connector to link another device |
