Description

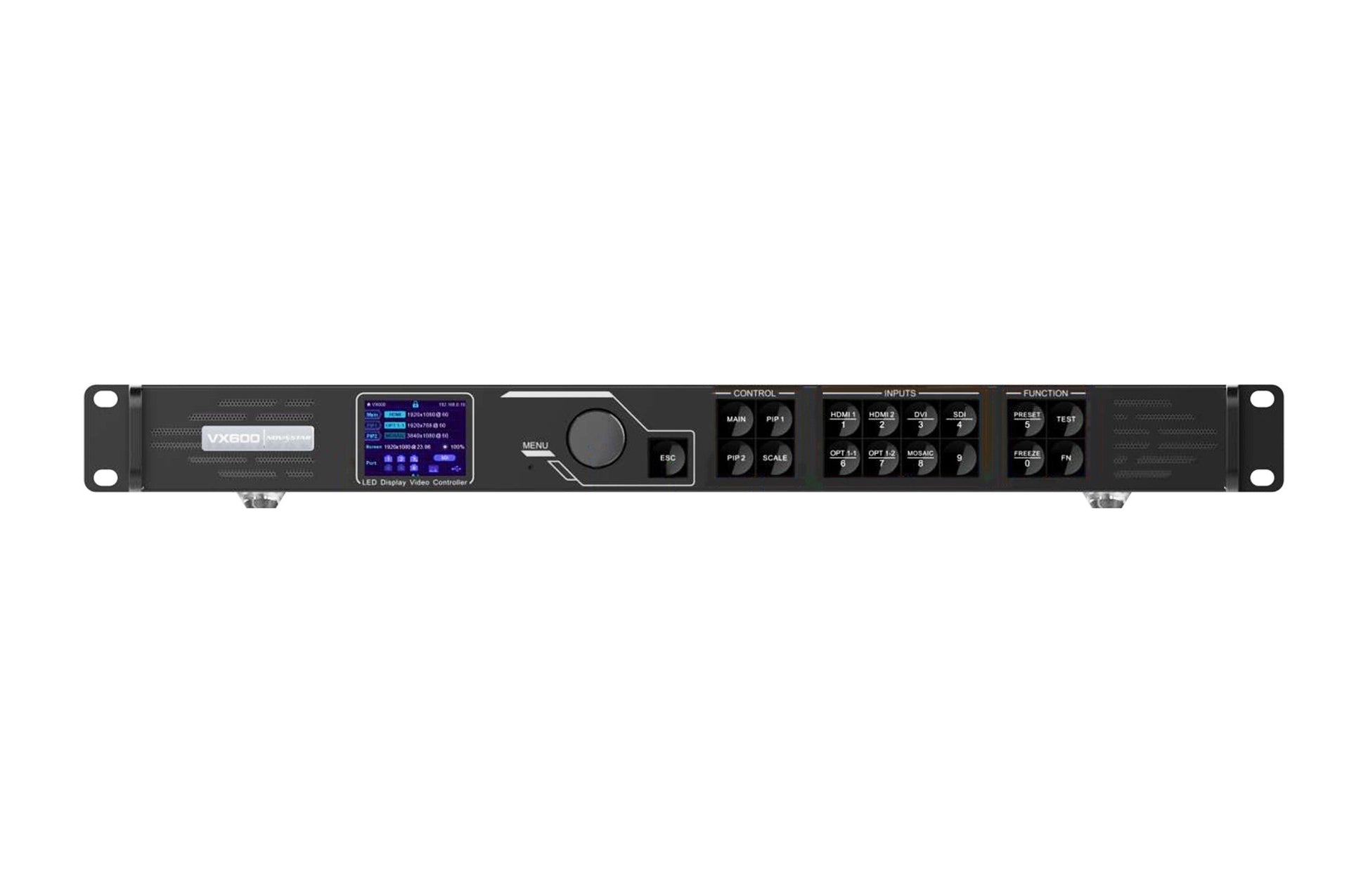

Novastar VX600 is NovaStar's new all-in-one controller that integrates video processing and video control into one box. It features 6 Ethernet ports and supports video controller, fiber converter and Bypass working modes.
A VX600 unit can drive up to 3.9 million pixels, with the maximum output width and height up to 10,240 pixels and 8192 pixels respectively, which is ideal for ultra-wide and ultra-high LED screens.
The VX600 is capable of receiving a variety of video signals and processing high-resolution images. In addition, the device features stepless output scaling, low latency, pixel-level brightness and chroma calibration and more, to present you with an excellent image display experience.
What's more, the VX600 can work with NovaStar's supreme software NovaLCT and V-Can to greatly facilitate your infield operations and control, such as screen configuration, Ethernet port backup settings, layer management, preset management and firmware update. Thanks to its powerful video processing and sending capabilities and other outstanding features, the VX600 can be widely used in applications such as medium and high-end rental, stage control systems and fine-pitch LED screens.
Features
·Input connectors
− 1x HDMI 1.3 (IN & LOOP)
− 1x HDMI 1.3
− 1x DVI (IN & LOOP)
− 1x 3G-SDI (IN & LOOP)
− 1x 10G optical fiber port (OPT1)

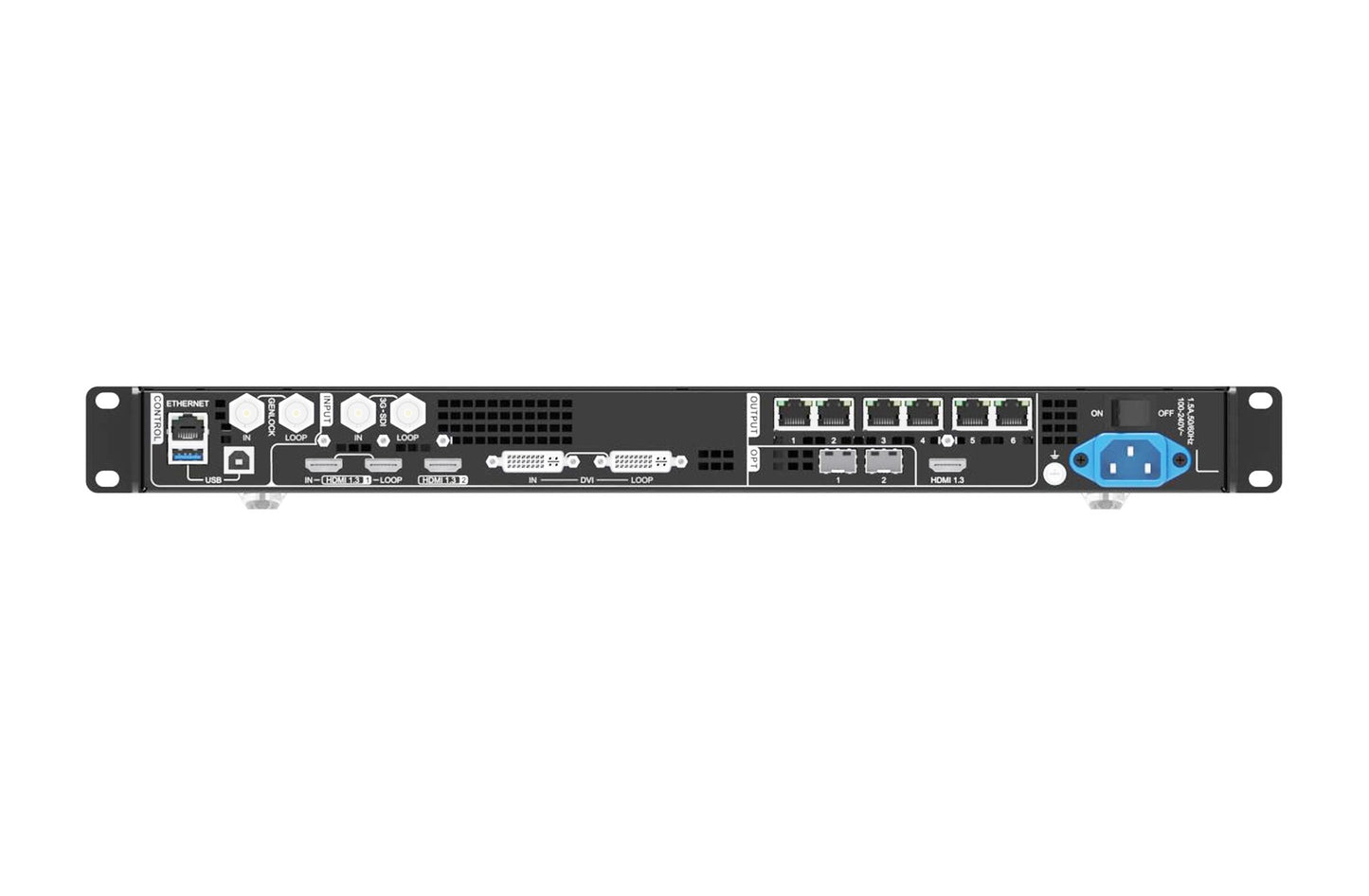

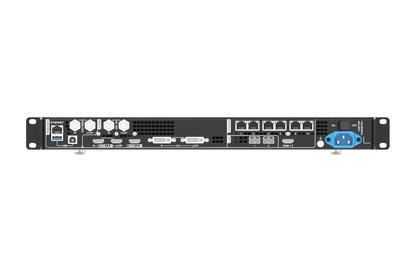

·Output connectors
− 6x Gigabit Ethernet ports
A single device unit drives up to 3.9 million pixels, with a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
− 2x Fiber outputs
OPT 1 copies the output on 6 Ethernet ports.
OPT 2 copies or backs up the output on 6 Ethernet ports.
− 1x HDMI 1.3
For monitoring or video output
·Self-adaptive OPT 1 for either video input or sending card output Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device.
·Audio input and output
− Audio input accompanied with HDMI input source
− Audio output via a multifunction card
− Output volume adjustment supported
·Low latency
Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled.
·3x layers
− Adjustable layer size and position
− Adjustable layer priority
·Output synchronization
An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync.
·Powerful video processing
− Based on SuperView III image quality
processing technologies to provide stepless
output scaling
− One-click full screen display
− Free input cropping
·Easy preset saving and loading
− Up to 10 user-defined presets supported
− Load a preset by simply pressing one button
·Multiple kinds of hot backup
− Backup between devices
− Backup between Ethernet ports
− Backup between input sources
·Mosaic input source supported
The mosaic source is composed of two sources
(2K×1K@60Hz) accessed to the OPT 1.
·Up to 4 units cascaded for image mosaic
·Three working modes
− Video Controller
− Fiber Converter
− Bypass
| Novastar VX1000/VX600/VX400 All in one video processor Comparison | |||
| Device Model | VX1000 | VX600 | VX400 |
| Loading Capacity | 6.5 million pixels | 3.9 million pixels | 2.6 million pixels |
| Max Width & Height | Max width: 10240 pixels Max height: 8192 pixels |
||
| Layers | 3x 4K×1K | 3x 2K×1K | 2x 2K×1K |
| Input Connectors | 1x 3G-SDI 2x HDMI 1.4 2x DVI（HDMI 1.4） 1x OPT1 |
1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1 |
1x 3G-SDI 2x HDMI 1.3 1x DVI 1x OPT1 |
| Output Connectors | 10x Ethernet Ports 1x HDMI1.3 1x HDMI1.4 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |
6x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |
4x Ethernet Ports 1x HDMI1.3 1x HDMI1.3 LOOP 1x DVI LOOP 1x 3G-SDI LOOP 2x OPT |
| Presets | 10 | 10 | 10 |
| Control Connectors | 1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP) |
1x Ethernet Port 2x USB (input & output) 1x GENLOCK (IN & LOOP) |
1x Ethernet Port 2x USB (input & output) 1x Light Sensor |
Novastar VX600 Specifications Download
VX600-All-in-One-Controller-Specifications-V1.1.01
