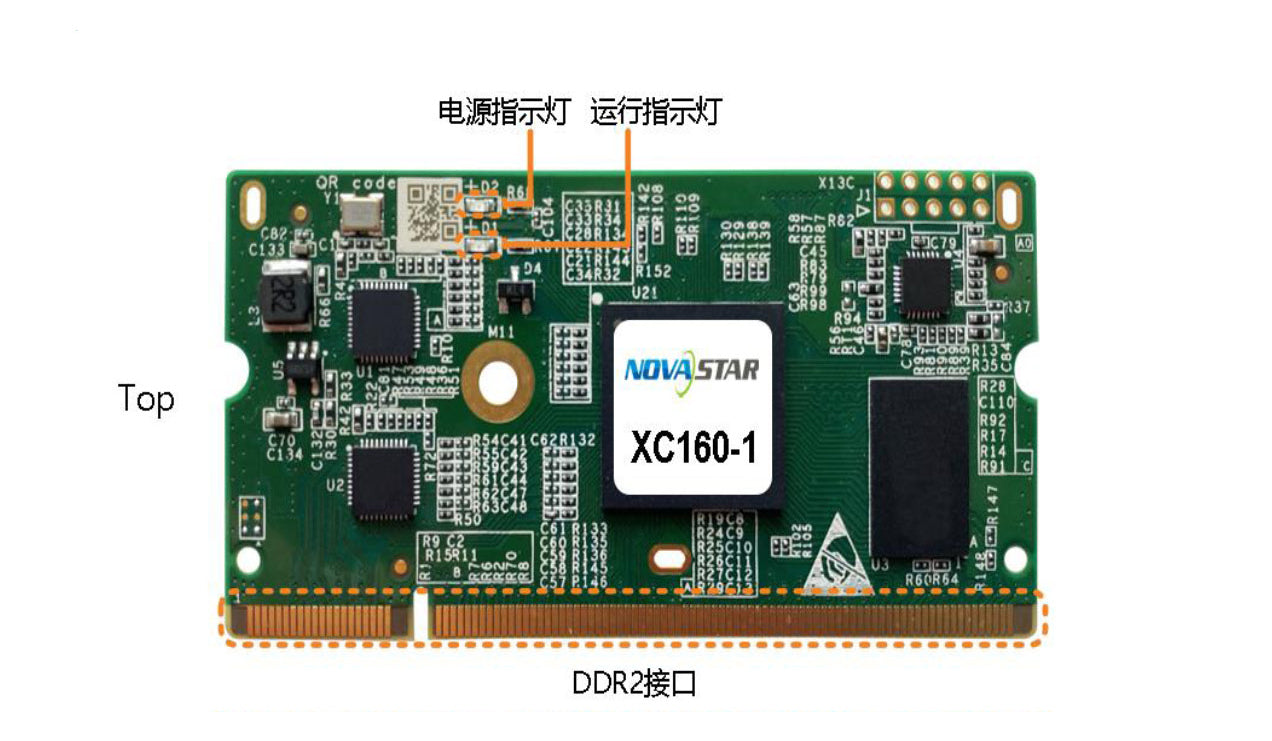

The XC160-1 is a small-form-factor, high-end receiver card. For PWM-type driver ICs, it supports a maximum single-card resolution of 512×384@60Hz; for general-purpose driver ICs, the maximum single-card resolution is 384×384@60Hz. It supports color management, 18-bit+, point-by-point luminance and chrominance correction, fast brightness and darkness adjustment, low latency, 3D, independent RGB gamma adjustment, and 90° screen rotation, improving image display and enhancing user experience.

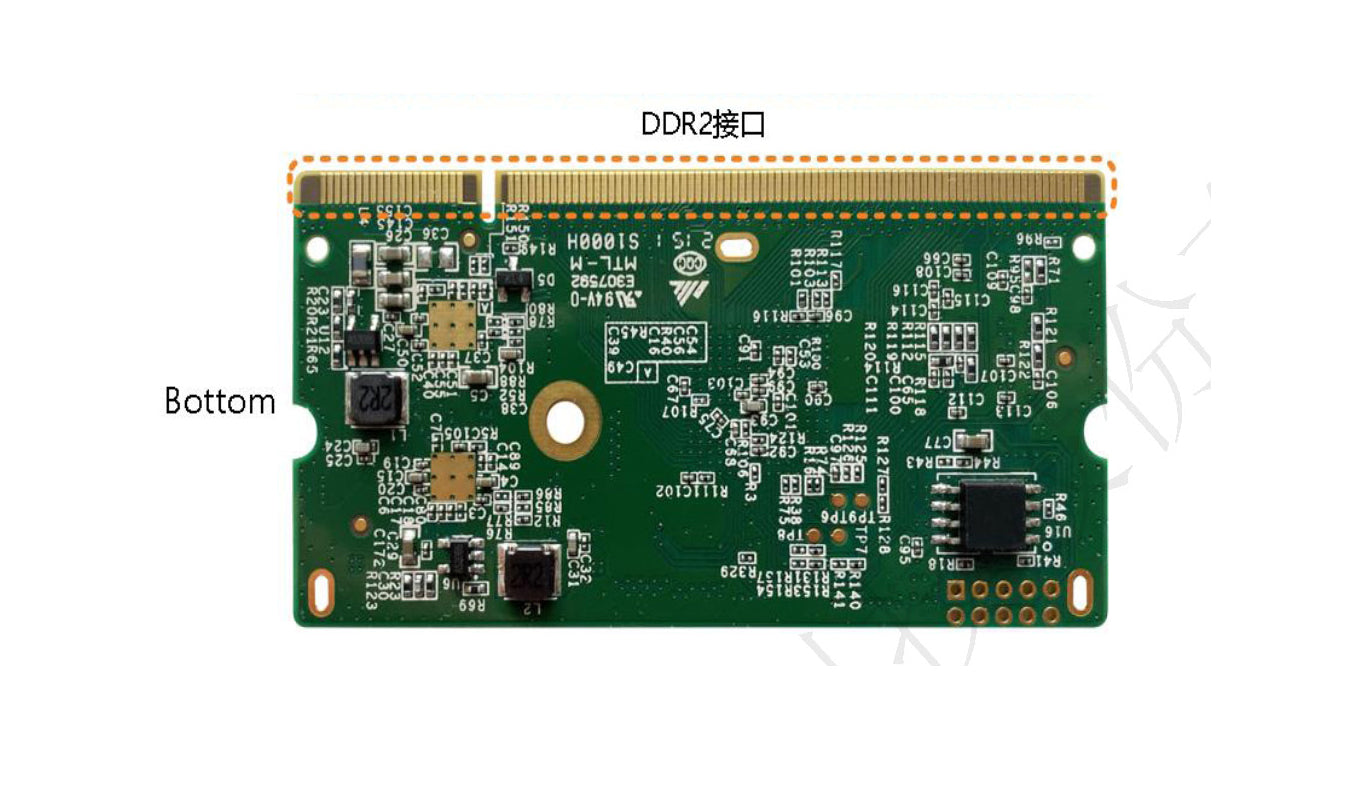

The XC160-1 uses a DDR2 interface for communication, offering good compatibility. It supports up to 32 groups of RGB parallel data or 64 groups of serial data, expandable to 128 groups of serial data. Reserved interfaces facilitate user-defined functions, making it suitable for various field environments.

Specification Download:
XC160-1 接收卡 规格书-V1.0.1
