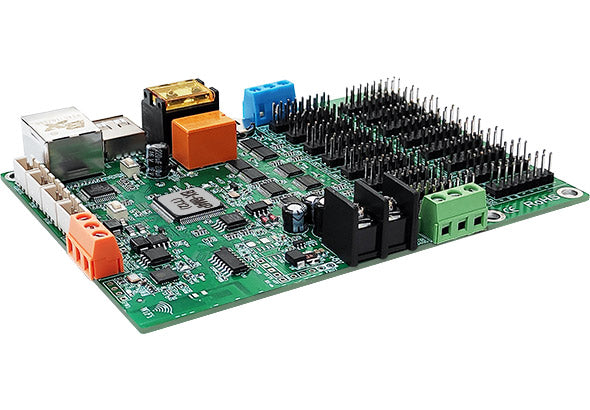

Description
BX-6M4P isolates invalid network data, adapts to busy complex network (including more cameras), and has more stable communication
Support Tri color screen ¦ Support smart scan ¦ Support Environmental monitor ¦Cross&T sharp screen¦Support monitor programs；
100M network+RS232+RS485 +USB on board;Optional WiFi ,support mobile app;
Onboard multiple sensor interface, relay switch, program selection interface;
Speically used for LED screen projects.
BX 6th generation products get a higher station on core technology compare with BX 5th generation products and the products on LED fields:
1.Improved functions and more complete series
⑴ Support tri-color; Support smart scan; Support all kinds of special modules and full color modules;
⑵ BX 6th YY series are integrated with voice chip, which support broadcasting of both Chinese & English;
⑶ Add 6S series Environment detecting controller;
Add 6X series MODBUS controller;
⑷Strong software. Support Mongolian, Hebrew and Arabic. Support vertical compose on horizontal screen.
⑸ BX 6th generation controllers support configuration and modify IP in system;
⑹ All BX-6 series can support USB upload program.
2. Improved display effect
⑴ Monokaryon construction and dikaryon performance;BX-6A/6U/6M/6W will replace the 5E/6E products in the middle length screens
⑵ Synchronous preview on editing;
⑶ Adjust moving speed of program, more smooth;
⑷ It’s very stable and no flashing when users update data of screen at real time by BX-6K series;
⑸Super long, high and big control zone of BX-6E series:
width≤8192 pixels, height≤1024 pixels, maximum pixels is 4096K. The moving speed can be 3 times than BX-5E series;
3.More interfaces and excellent technology
⑴ Brightness/temperature/temperature&humidity sensor and IR controller socket on board.
⑵ RS232+RS485+USB port standard match on BX-6A series; There are Ethernet+RS232+USB port on BX-6E series;
⑶ Most of BX 6th generation products adopt plastic package. Advantages: fire resistance, environmental protection, anti-static, high temperature resistance;
Advantages of BX 6th generation products
1. More convenient operations, more complete software functions;
2. More perfect products design, more detailed on quality;
3. More excellent technology, more outstanding performance;
4. More abundant products series, more perfect solutions;
| Technical parameters | |
|---|---|
| Product status | Launched into market in Oct 2020 |
| Control size |
Single color 128K,Dual color 96K,Tri color 64K; width：≤2048 pixels |
| Display mode | Single color :2048*64 1344*96 1024*128 672*192 512*256 |
| Storage | 4MByte |
| Program quantity | Support 128 programs |
| Area quantity | Each program maximum support 24 areas |
| Area type | Weather/Image&text//subtitle/animation /lunar/ time/dial/timer/sensor areas |
| Border | Program shine border /Area shine border |
| Clock | Lunar /Dial/ Chinese and English clock/timer (all support multi-groups) |
| Software function | group sending/multi-program edit/multi-area display/multi-language version； |
| Display effect | |
|---|---|
| Moving smoothness | No cross lines when moving to the left, and will not shake when lower the moving speed. the brightness will not be lower when move left in a long screen; |
| Program stability | Support adjusting moving speed; high refresh rate, stable running on screen; |
|
Best upload width |
≤1536 pixels |

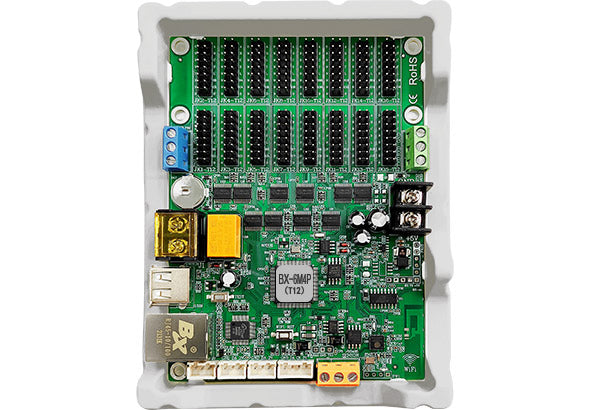

| Module compatibility | |
|---|---|
| Module | Support all kinds of single/dual/tri color modules |
| Column driver IC | Support 74HC595,SM16188,common constant current chip, double latch chip and other mainstream LED drive chip Not support all PWM chip |
| Row decoding IC | Support 74HC138 row decoding/none decoding module,not support other row decoding IC,infuture will support |
| Scan mode | Support smart scan,support any kinds of scan mode from static to 1/32 |
| Module empty spot | Support any empty spot |
| Interfaces | |
|---|---|

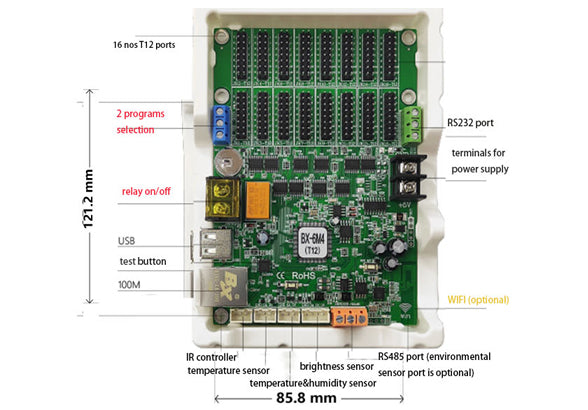

| Interface | 16 nos of T12 |
| Communication | 100M Ethernet+RS232+RS485+USB+WIFI ,RS232 communication distance ≤ 200m |
| Sensor | IR / brightness/temperaure/temp&humidity sensor socket on board |
| Program selection | Standard with 2 bits programs selection port.Support external signal to switch 4 programs; I/O more program switching requirements. |
| Remote switch | On board Relay. remote ON-OFF screen |
| Important functions | |
|---|---|
| Communication | Support LAN and internet communication, IP online configuration and group setting, auto checking MAC inflict and IP inflict.Support RS232 and RS485 serial communication; support USB download font library; optional WiFi to meet the wireless local area network application; |
| Network enhancement |
BX-6M4P isolates invalid network data, adapts to busy complex network (including more cameras), and has more stable communication |
| Group sending | Support adaptive release on different screen programs |
| Monitor program | Support monitor program |
| Program displaying |
Play in order, Play by timing and emergency notice.Standard with 2 bits programs selection port.Support external signal to switch 4 programs; I/O more program switching requirements |
| Timing switch | Support auto timing switch,software switch |
| Brightness adjust | 16 grade brightness, support manual /timing/auto adjust mode |
| Remote switch | Support auto timing switch,software switch |
| Normal sensor function | Support temp/humidity sensor connection and display.support brightness sensor connection. |
|
Environmental monitoring sensor |
Support wind speed, wind direction, air quality, noise, atmospheric pressure, light, and negative oxygen ions; Support radar speed measurement, water level, rainfall, etc |
| Weather report | Support China & overseas weather report |
| Voice broadcast function | Match with BX-YY to support Chinese and English voice broadcast. The display content can be broadcast simultaneously, or other content can be broadcast independently. |
| Parameter fast configuration |
Supports saving and reading back configuration parameters |
| Any layout | Support arbitrary typesetting rules in Mongolian, Hebrew, Arabic, etc, easy to make vertical font |
|
Secondary development |
Provide secondary development packages ,support windows / Linux / Android / IOS and other major systems, including various dynamic libraries, communication protocols, test routines, etc; |
| Cloud application and information safety | Support iLedCloud/iLEDSys platform and iLedCloud wechat mini program. Functions: real name authentication, different grade roles, edit/check/release program, self-adapt program, etc. Remotely manage LED displayes and monitor the status of LED displays. Create program report, online monitor informations on screen, and guarantee safety of informations. |
| System update and maintenance | |
|---|---|
| Platform update | iLEDCloud and iLEDSys update online； |
| Firmware update | Support firmware update online,cost efficient |
| Electricity parameters | |
|---|---|
| Working voltage | 5V（3.5V～5.5V wide working voltage ） |
| Max power | ≤2W |
| Environmental adaption | |
|---|---|
| Working temperature | -40℃～80℃ |
| Salt-spray resistant level |
There is no problem for the distance 500M from sea |
| Electromagnetism compatibility | |
|---|---|
| Wireless harass | Testing for power supply port, LAN and serial port, all reach the standard |
| Immunity of discharging static electricity |
Testing for LAN, serial, USB, sensor, I/O ports. Level 4, discharging 8KV. Reach the standard |
| Surge impact | Testing for power supply port and LAN port. Level 4, discharging voltage is 4KV. |
| Quality assurance | |
|---|---|
| Quality standard | 7*24 hours power-on, fault rate ≤0.3% |
| Construct protection |
Plastic bracket, inflaming retarding, insulation, antiseptic, environmental, anti-static, high temperature resistance |
| Apperance protection | UV three-protection glue for all types, national standard 85 protection level, dust prevention, dampproof, anti-static, salt-spray proof |
| Terminal management and auto control | |
|---|---|
| Network communication | Support LAN and internet |
| Manage device | PC,Android and IOS |
| Remote control | System parameters configuration, program playing controlling, update sending program, adjust brightness automatically, turn on/off screen by timing. |
| Group sending | Support adaptive release on different screen programs |
| Software |
LedshowTW（PC software）, Ledshow（ mobile phone APP） |
