Description

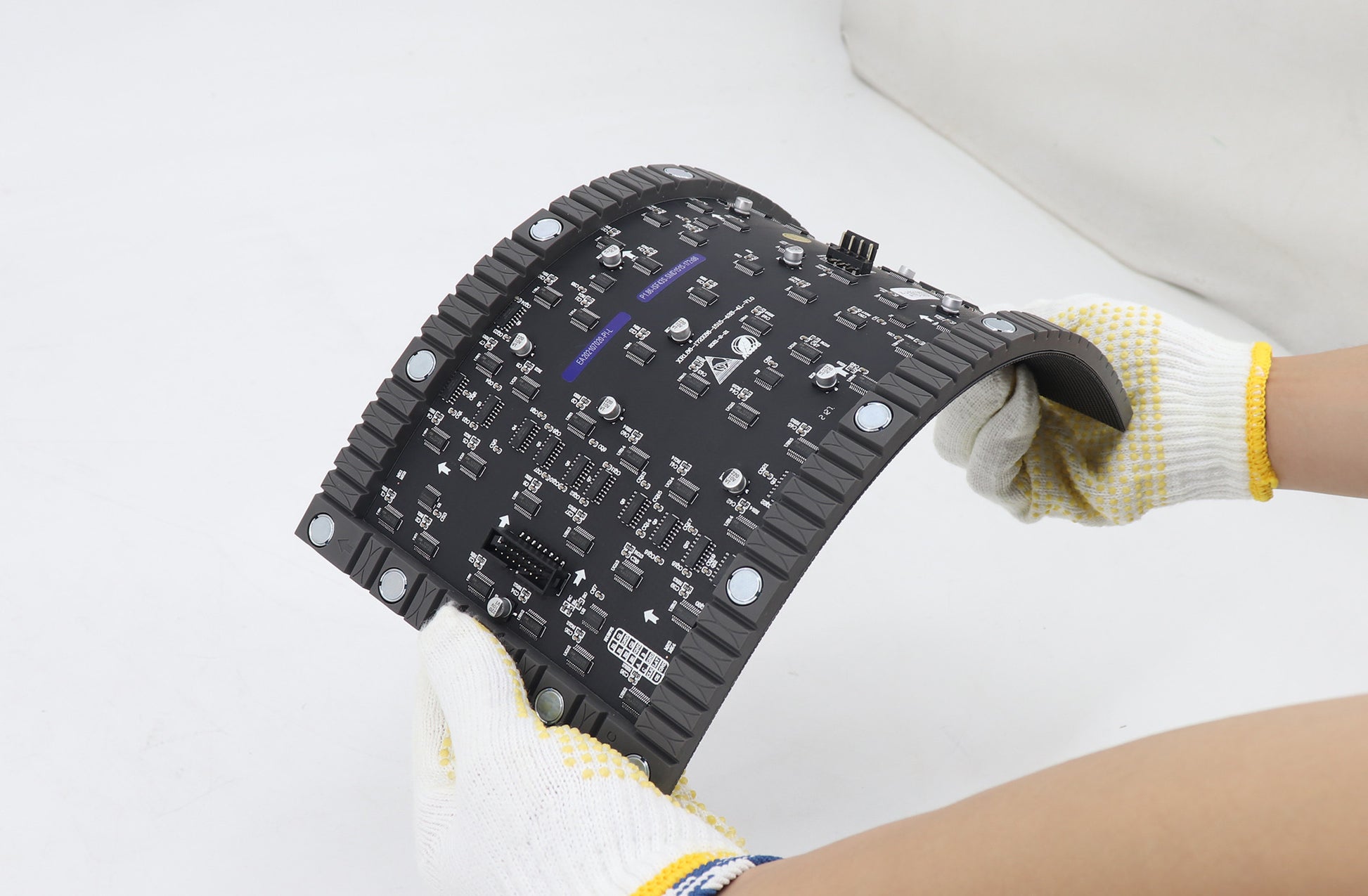

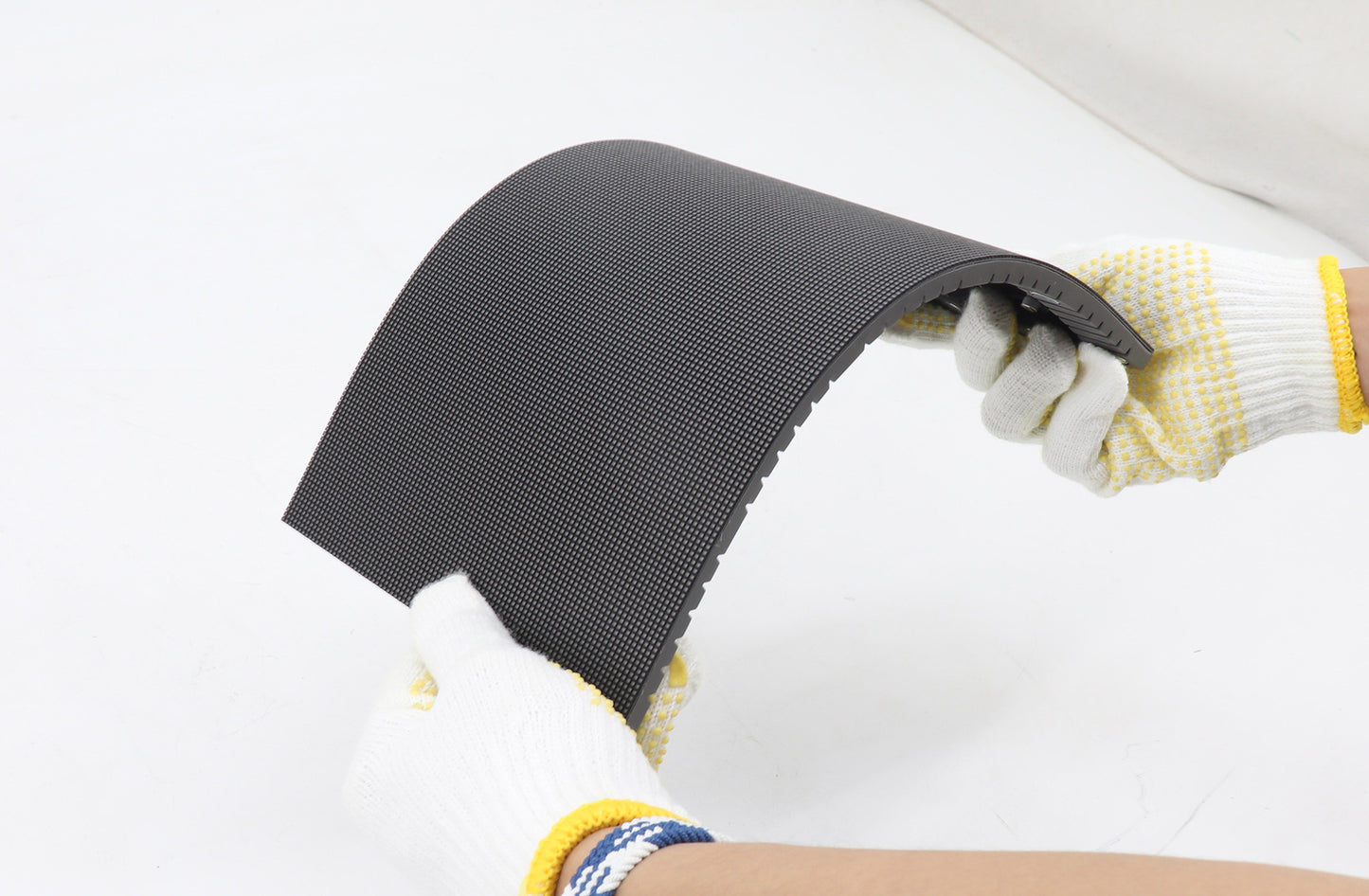

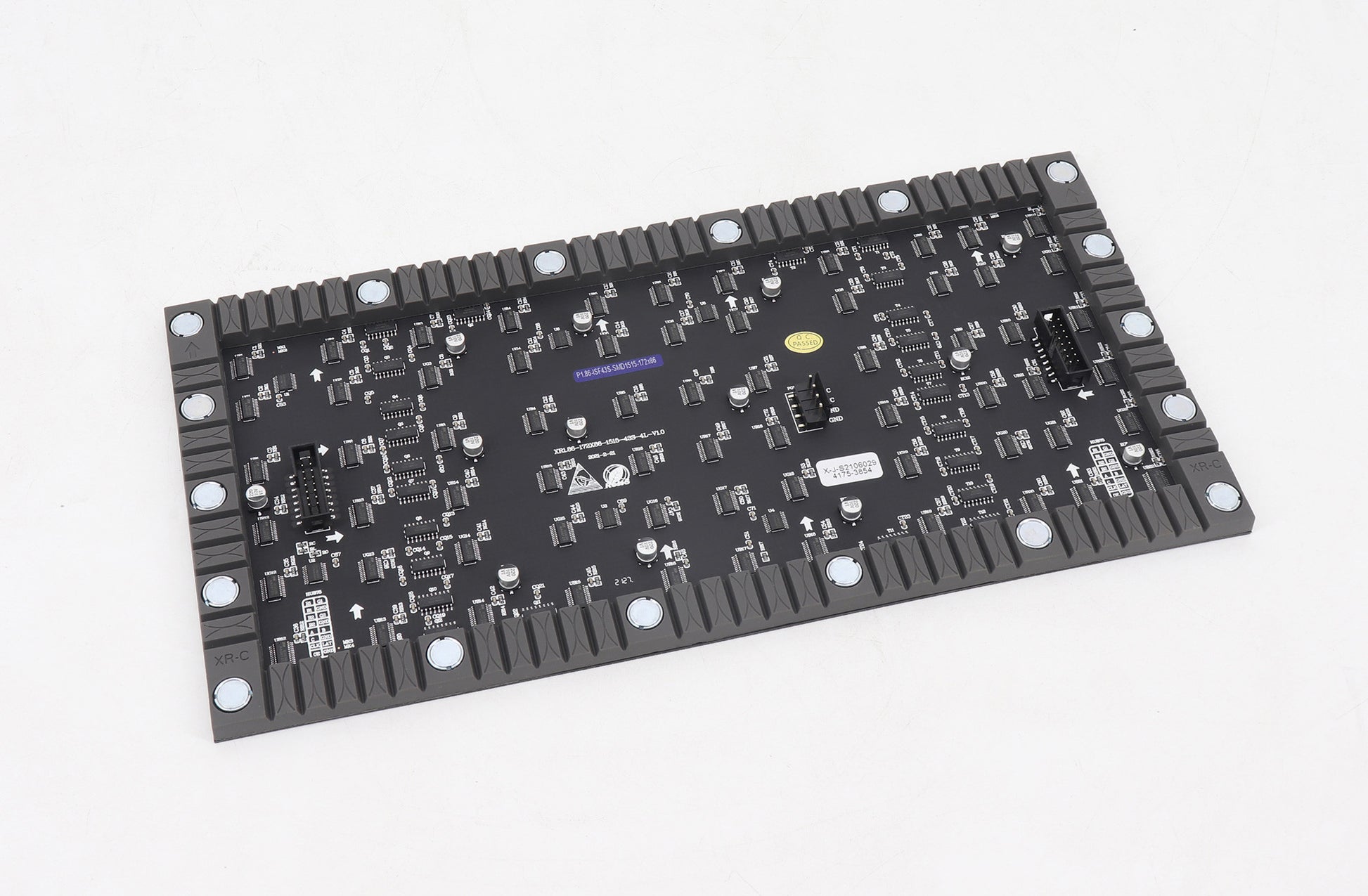

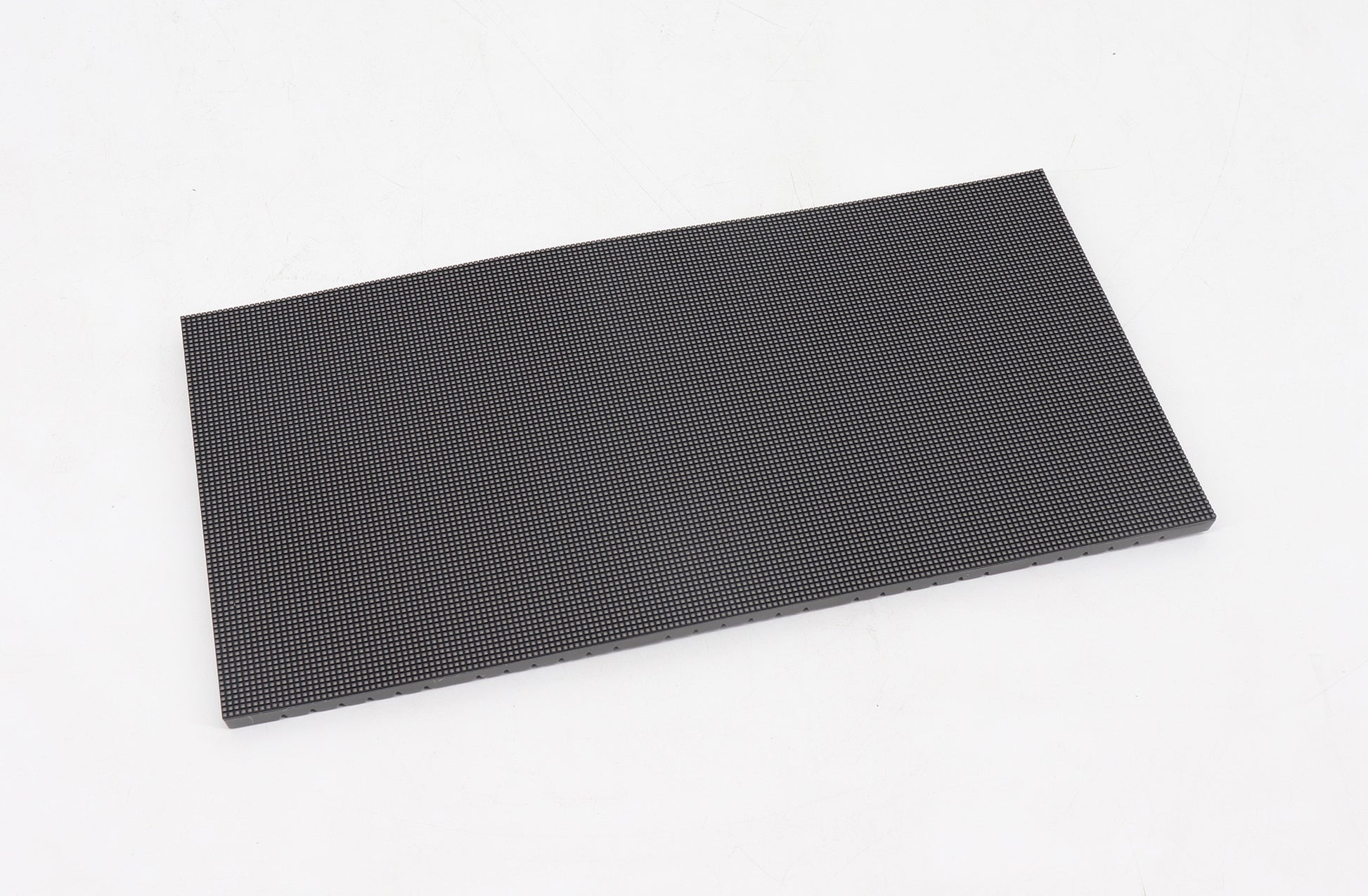

P1.86 SMD1515 Indoor HD 320x160mm Soft Flexible LED Module can be used for curved iron cabinets
P1.86 SMD1515 Indoor HD 320x160mm Soft Flexible LED Module Parameter:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red | SMD1515 | 38-50mcd | 120° | 618-623nm | 25℃,8mA | |
| Green | 150-195mcd | 120° | 519-523nm | 25℃,5mA | ||
| Blue | 19-25mcd | 120° | 467-471nm | 25℃,3mA | ||
| Module Parameter | ||||||
| Pixel Pitch | 1.86mm | |||||
| Pixel Configuration | SMD1515 | |||||
| Density | 288,906 pixels/㎡ | |||||
| Module Resolution | 172pixel(L) * 86pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 8.5mm(D) | |||||
| Driving Mode | Constant current, 1/43 duty | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥800 CD/㎡ | |||||
| Viewing Angle | 120°(Horizontal); 120°(Vertical) | |||||
| Best Viewing Distance | ≥2m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 21W | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥3,840Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100M (Ethernet cable); | |||||
| 20KM (Optical fiber cable) | ||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
