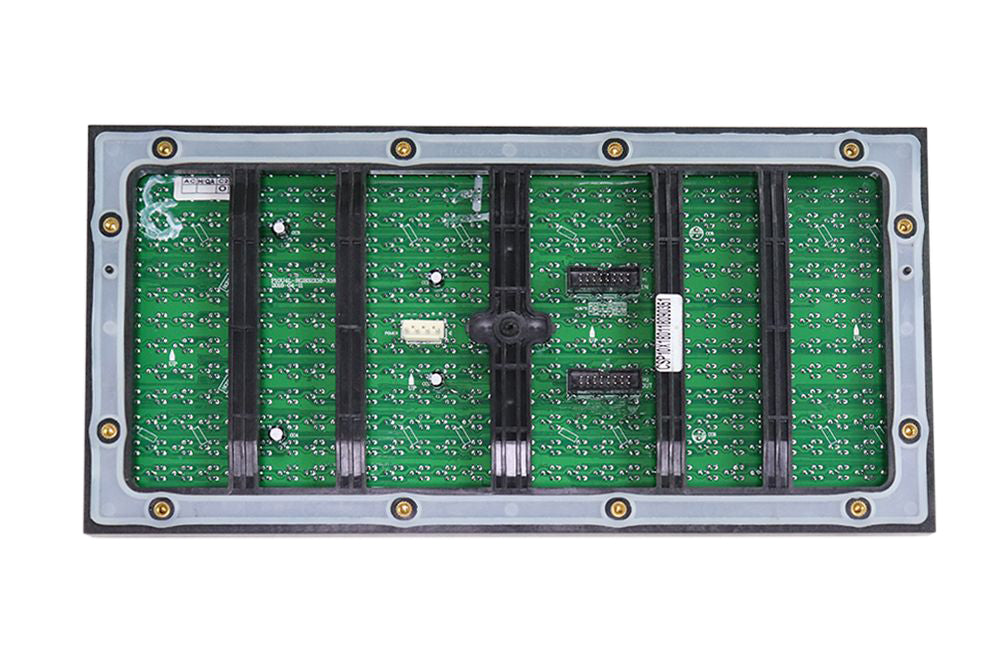

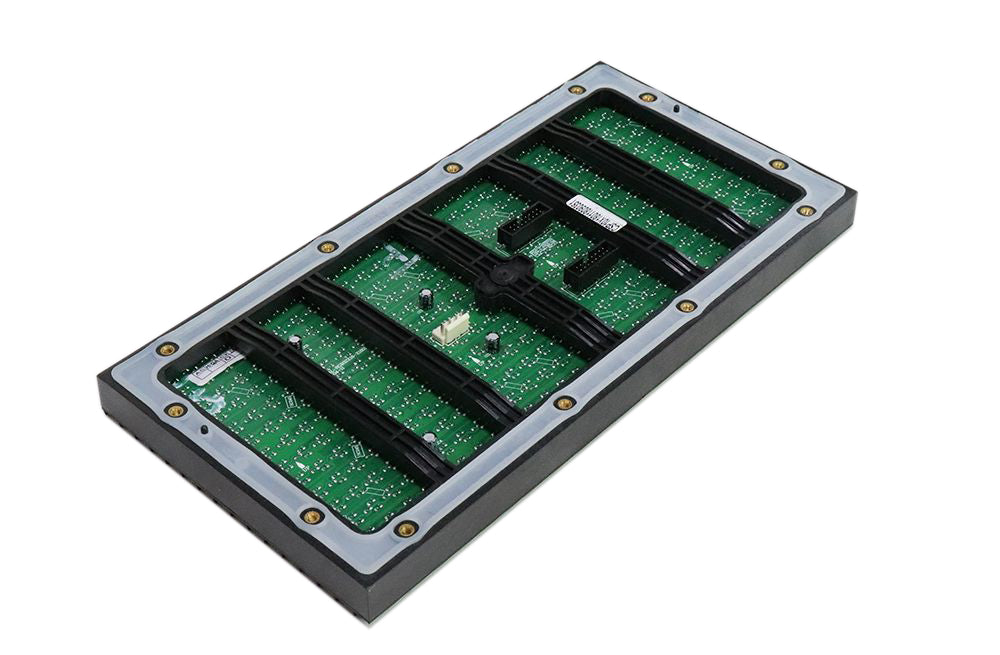

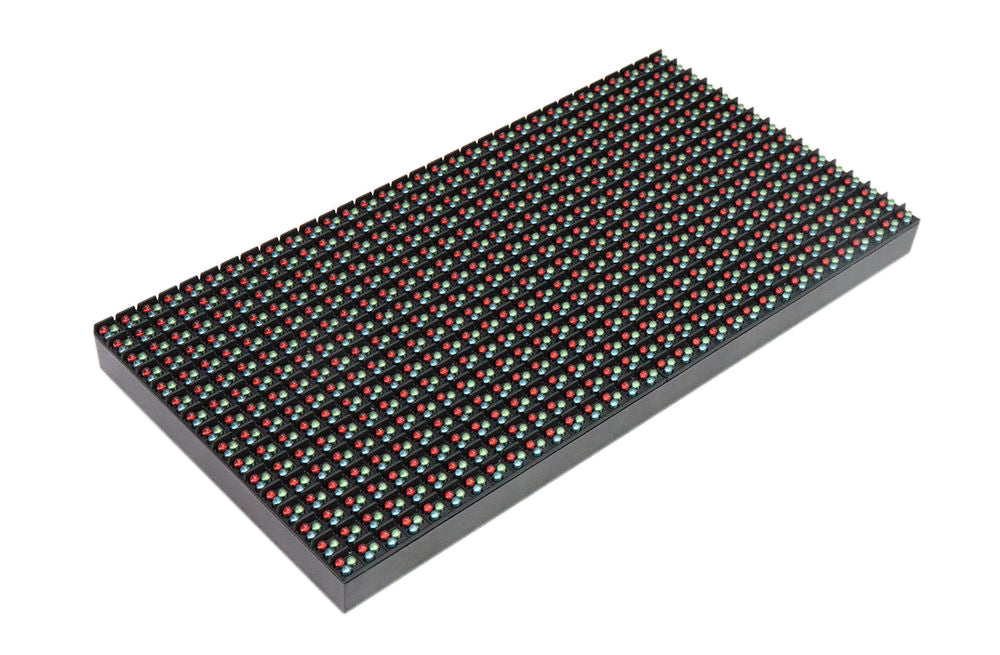

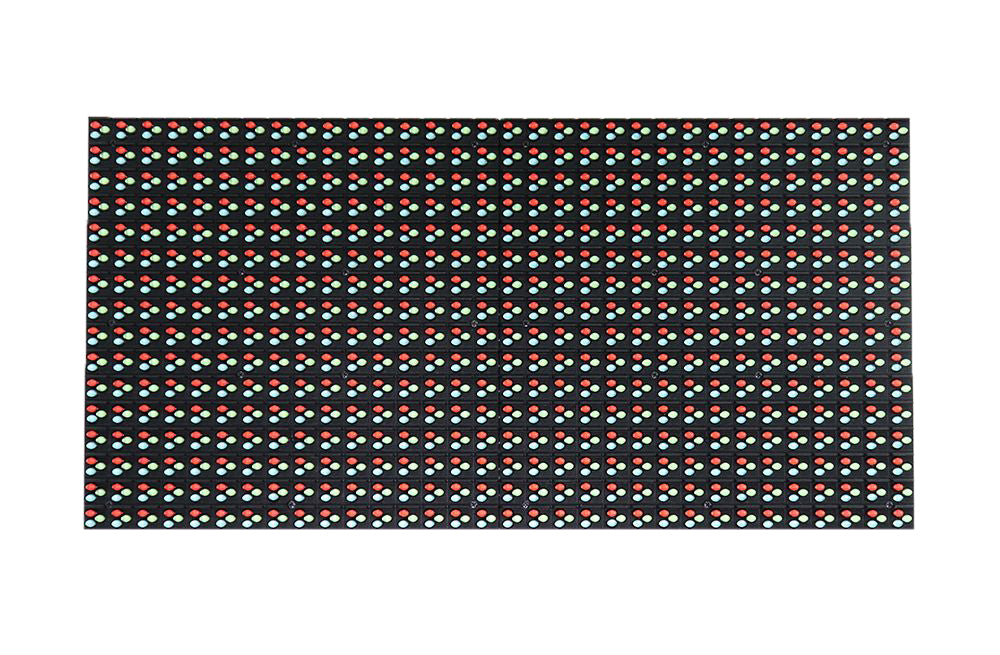

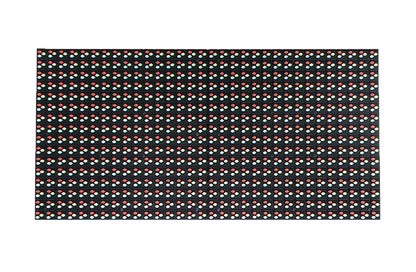

P10 Outdoor DIP346 320x160mm LED Display Screen Module Parameter:
| LED Lamp Specification | ||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | |
| Red | DIP346 | 800-1500mcd | 110°(H); 50°(V) | 618-628nm | 25℃,20mA | |
| Green | 1800-3000mcd | 518-528nm | 25℃,20mA | |||
| Blue | 400-600mcd | 465-475nm | 25℃,20mA | |||
| Module Parameter | ||||||
| Pixel Pitch | 10mm | |||||
| Pixel Configuration | DIP346 | |||||
| Density | 10,000 pixels/㎡ | |||||
| Module Resolution | 32pixel(L) * 16pixel(H) | |||||
| Module Dimension | 320mm(L) * 160mm(H) * 30mm(D) | |||||
| Driving Mode | Constant current, 1/4 duty | |||||
| Module Mask | Pure black mask---high contrast screen | |||||
| Electricity Parameter | ||||||
| Optical Ratings | ||||||
| Brightness | ≥7,500 cd/㎡ | |||||
| Viewing Angle | 110°(Horizontal); 50°(Vertical) | |||||
| Best Viewing Distance | ≥10m | |||||
| Gray Grade | 14 bit | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | |||||
| Max. Power Consumption | 40 W | |||||
| Control System | ||||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥1,920Hz | |||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | |||||
| Control Distance | 100m(Ethernet cable); | |||||
| 20KM(optical fiber cable) | ||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | |||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | |||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP65 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
