Description
- Flexible led display is suitable for shopping malls, bars, stage backgrounds, exhibition halls, planning exhibition halls, etc.
- Soft, thin and light, suitable for any bending effect Flexible,lightweight, easy to install and maintain

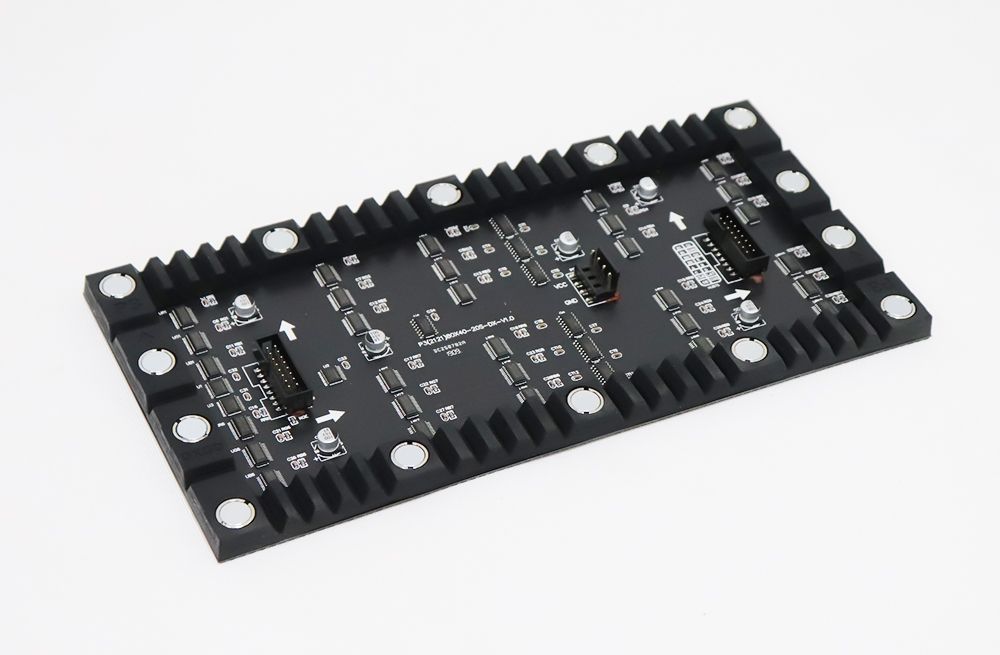

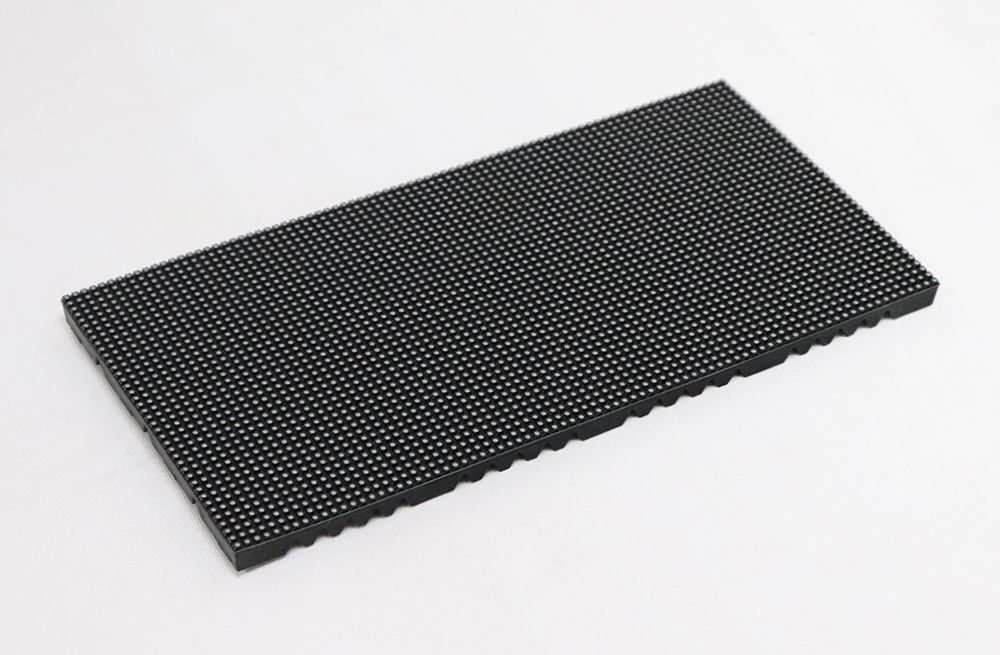

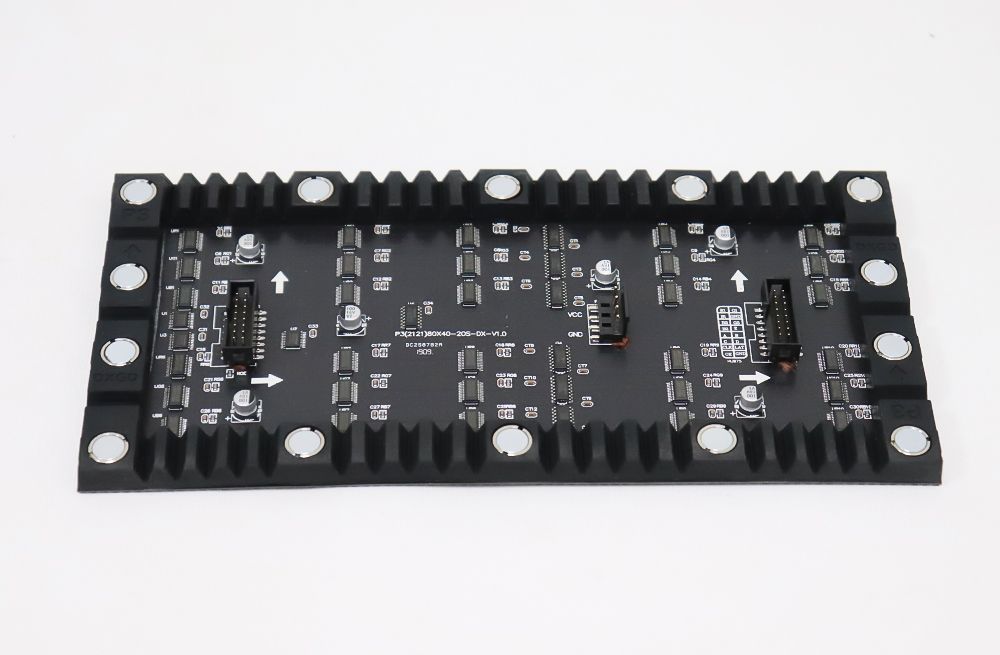

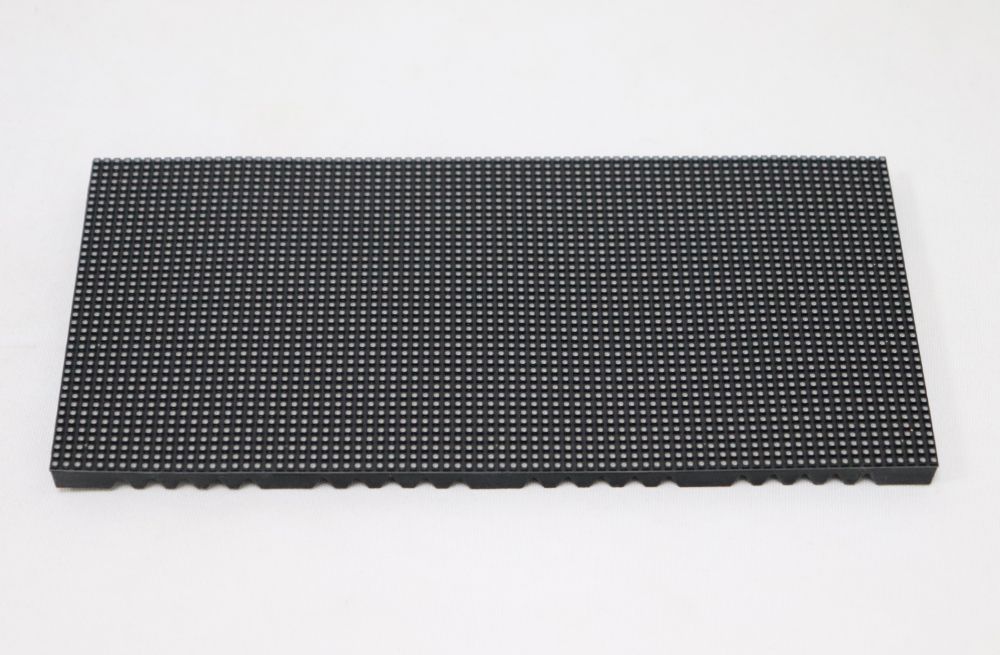

P3 Indoor 240x120mm LED Video Screen Soft Flexible LED Module Parameter:
| Module Parameter | |
| Pixel Pitch | 3mm |
| Pixel Configuration | SMD2121 |
| Density | 111,111 pixels/㎡ |
| Module Resolution | 80pixel(L) * 40pixel(H) |
| Module Dimension | 240mm(L) *120mm(H) * 9.5mm(D) |
| Driving Mode | Constant current, 1/20 duty |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥1,000 cd/㎡ |
| Viewing Angle | 120°(Horizontal); 120°(Vertical) |
| Best Viewing Distance | ≥3m |
| Gray Grade | 14 bits |
| Display Color | 4.4 trillion colors |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Max. Power Consumption | 10 W |
| Control System | |
| Frame Frequency | ≥60Hz |
| Refresh Frequency | ≥1920Hz |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); |
| 20KM(optical fiber cable) | |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Storage Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Operating Time | ≥72 hours |
| Protection Grade | IP31 |
| Out-of-Control Pixel Rate | ≤0.01% |
Indoor Flexible Soft LED Display Module Specification:
| Pixel Pitch | LED Type | Density（dot/㎡） | Module Pixel | Module Size（mm） | Driving Mode | Brightness(Nits) |
| 240*120mm Series soft flexible led display module | ||||||
| 1.25mm | SMD1010 | 640000 | 192*96 | 240*120mm | 1/64Scan | 700-900 |
| 1.5625mm | SMD1212 | 409600 | 128*96 | 200*150mm | 1/48Scan | 700-900 |
| 1.579mm | SMD1212 | 409600 | 152*76 | 240*120mm | 1/38Scan | 700-900 |
| 1.667mm | SMD1212 | 360000 | 144*72 | 240*120mm | 1/36Scan | 700-900 |
| 1.875mm | SMD1212 | 284444 | 128*64 | 240*120mm | 1/32Scan | 700-900 |
| 1.875mm | SMD1515 | 284444 | 128*64 | 240*120mm | 1/32Scan | 700-900 |
| 2mm | SMD1515 | 250000 | 120*60 | 240*120mm | 1/30Scan | 700-900 |
| 2.5mm | SMD1515 | 160000 | 96*48 | 240*120mm | 1/24Scan | 700-900 |
| 3mm | SMD2121 | 111111 | 80*40 | 240*120mm | 1/20Scan | 700-900 |
| 4mm | SMD2121 | 62500 | 60*30 | 240*120mm | 1/15Scan | 700-900 |
| 320*160mm Series flexible soft led display module | ||||||
| 1.86mm | SMD1212 | 288906 | 172*86 | 320*160mm | 1/43Scan | 700-900 |
| 2mm | SMD1515 | 250000 | 160*80 | 320*160mm | 1/40Scan | 700-900 |
| 2.5mm | SMD1515 | 160000 | 128*64 | 320*160mm | 1/32Scan | 700-900 |
| 3.076mm | SMD1515 | 105625 | 104*52 | 320*160mm | 1/26Scan | 700-900 |
| 5mm | SMD2121 | 40000 | 64*32 | 320*160mm | 1/16Scan | 700-900 |
| 256*128mm Series flexible soft led display panel | ||||||
| 2mm | SMD1515 | 250000 | 128*64 | 256*128mm | 1/32Scan | 700-900 |
| 4mm | SMD2121 | 62500 | 64*32 | 256*128mm | 1/16Scan | 700-900 |
