Description

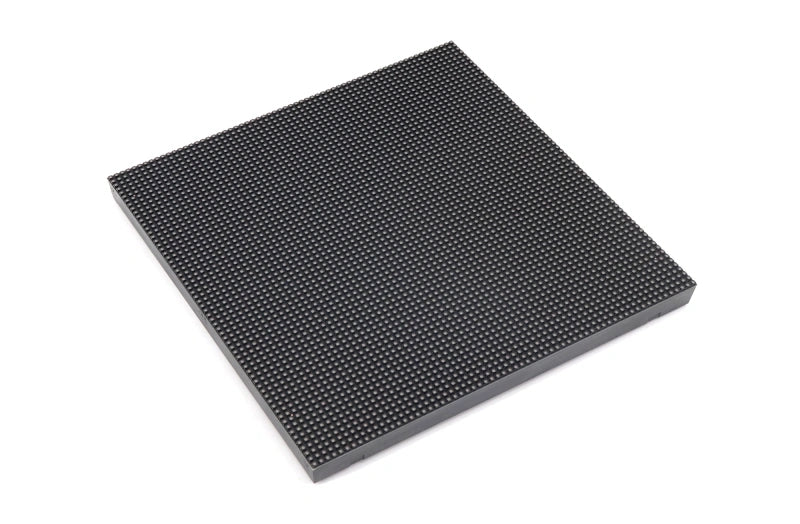

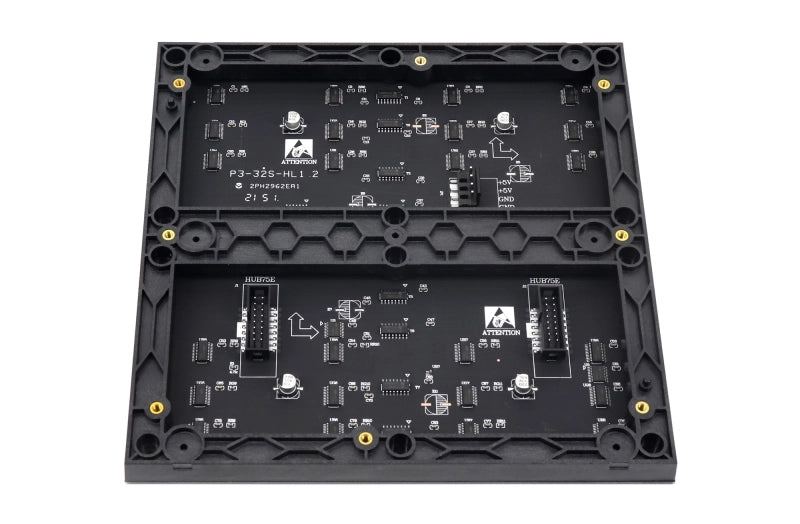

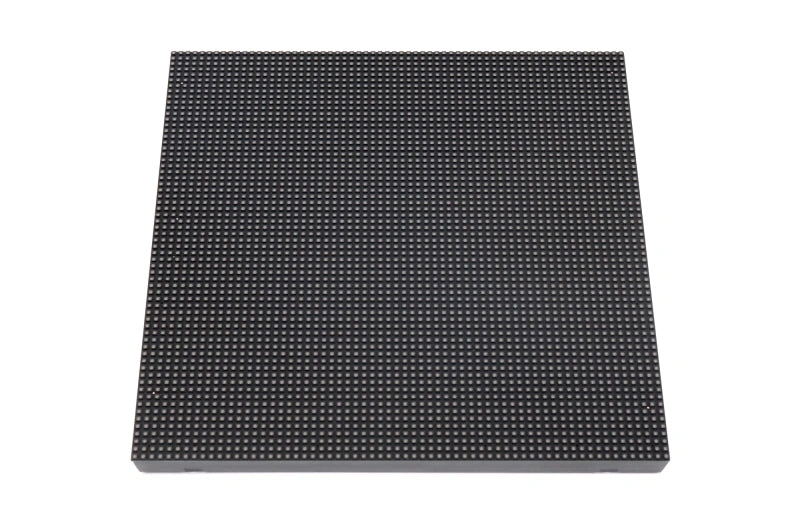

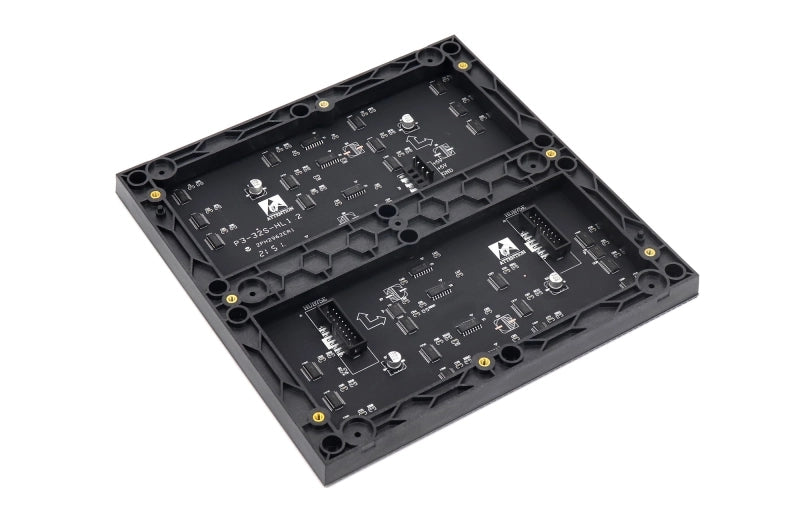

P3 Indoor1/32Scan 64x64dot 192X192mm LED Screen Module Specification:
|
LED Lamp Specification |
||||||
| Color | Package | Intensity | Viewing
Angle |
Wavelength | Testing
Conditions |
|
|
Red |
SMD2020 |
70-100 mcd |
120 °/120° |
620- 625nm |
25℃, 20mA |
|
|
Green |
SMD2020 |
120-200 mcd |
120 °/120° |
515- 530nm |
25℃, 10mA |
|
|
Blue |
SMD2020 |
30-40 mcd |
120 °/120° |
465- 475nm |
25℃, 5mA |
|
|
Module Parameter |
||||||
| Pixel Pitch | 3mm | |||||
| Pixel Configuration | SMD2020 | |||||
| Density | 111,111 pixels/㎡ | |||||
| Module Resolution | 64pixel(L) * 64pixel(H) | |||||
| Module Dimension | 192mm(L) * 192mm(H)
* 18mm(D) |
|||||
| Driving Mode | Constant current, 1/32 duty | |||||
|
Electricity Parameter |
||||||
| Optical Ratings | ||||||
| Brightness | ≥1,000 cd/㎡ | |||||
| Viewing Angle | 120°(Horizontal)；
120°(Vertical) |
|||||
| Best Viewing Distance | ≥3m | |||||
| Gray Grade | 14 bits | |||||
| Display Color | 4.4 trillion colors | |||||
| Brightness Adjustment | 100 grades by software or
automatically by sensor |
|||||
| Max. Power Consumption | 19 W | |||||
| Frame Frequency | ≥60Hz | |||||
| Refresh Frequency | ≥960Hz | |||||
| Input Signal | Composite Video, S-video,
DVI, HDMI, SDI, HD-SDI |
|||||
| Control Distance | 100m(Ethernet cable);
20KM(optical fiber cable) |
|||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024,
1600*1200 |
|||||
| Color Temperature | 5000—9300 adjustable | |||||
| Brightness Correction | Pixel by pixel, module by module,
cabinet by cabinet |
|||||
| Reliability | ||||||
| Working Temperature | -20～+60 ºC | |||||
| Storage Temperature | -30～+70 ºC | |||||
| Working Humidity | 10%～90% RH | |||||
| Lifetime | 100,000 hours | |||||
| MTBF | 5000 hours | |||||
| Continuous Operating Time | ≥72 hours | |||||
| Protection Grade | IP31 | |||||
| Out-of-Control Pixel Rate | ≤0.01% | |||||
