Description

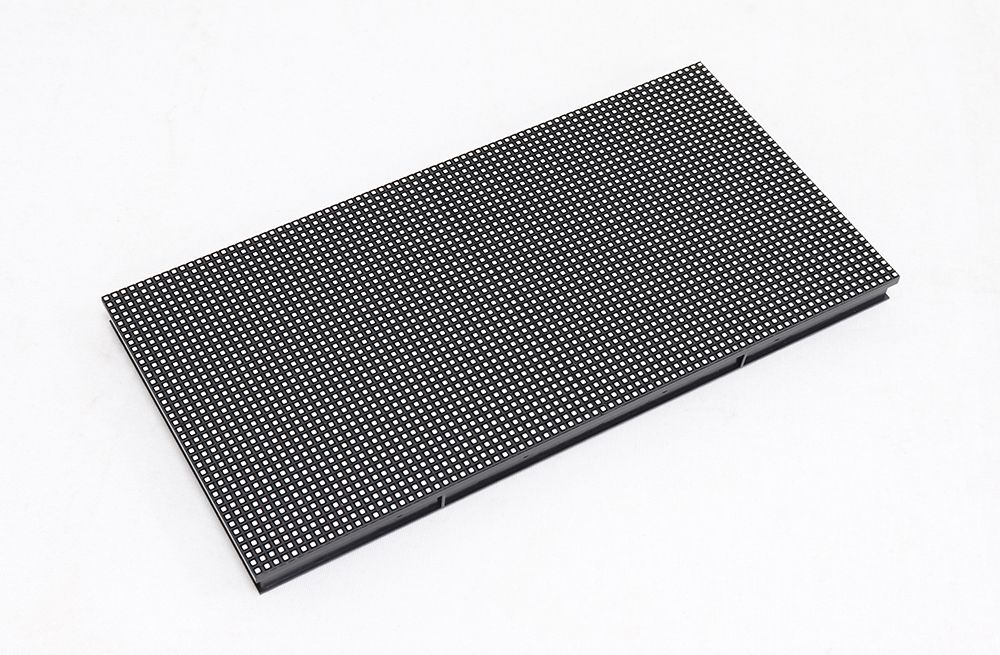

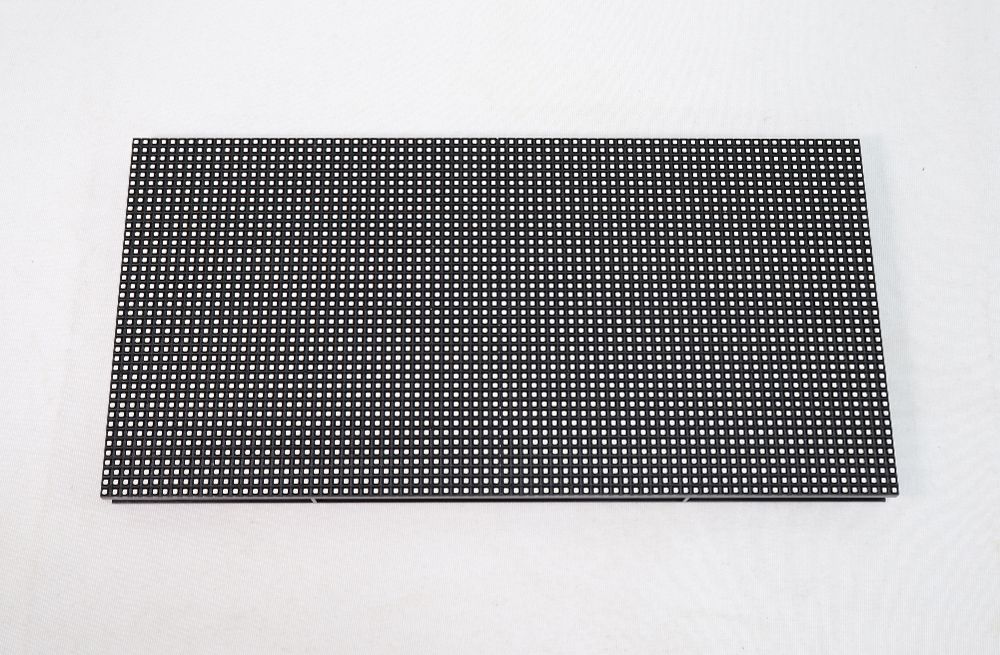

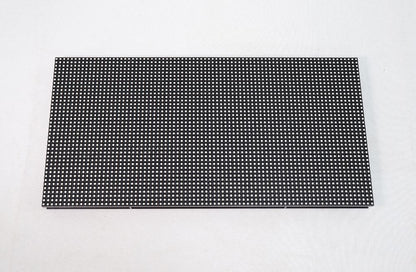

The P4 320x160mm Outdoor LED Wall Screen Module features a precise 4mm pixel pitch with SMD2525 LEDs, delivering a sharp and detailed display. With a high pixel density of 62,500 pixels per square meter, this module offers vivid image quality. Its resolution of 64 by 32 pixels and compact size—320mm by 160mm by 25mm—make it ideal for scalable outdoor LED walls. Designed with advanced LED technology, it ensures consistent performance and clarity under various conditions, suited for professional outdoor visual applications.
P4 320x160mm Outdoor LED Wall Screen Module Parameter:
| LED Lamp Specification | |||||||
| Color | Package | Intensity | Viewing Angle | Wavelength | Testing Conditions | ||
| Red | SMD2525 | 450-600mcd | 120° | 620-625nm | 25℃,20mA | ||
| Green | 1000-1400mcd | 120° | 516-530nm | 25℃,20mA | |||
| Blue | 200-400mcd | 120° | 465-475nm | 25℃,20mA | |||
| Module Parameter | |||||||
| Pixel Pitch | 4mm | ||||||
| Pixel Configuration | SMD2525 | ||||||
| Density | 62,500 pixels/㎡ | ||||||
| Module Resolution | 64pixel(L) * 32pixel(H) | ||||||
| Module Dimension | 320mm(L) * 160mm(H) * 25mm(D) | ||||||
| Driving Mode | Constant current, 1/10 duty | ||||||
| Module Mask | Pure black mask---high contrast screen | ||||||
| Electricity Parameter | |||||||
| Optical Ratings | |||||||
| Brightness | ≥5,500 cd/㎡ | ||||||
| Viewing Angle | 120°(Horizontal)； 120°(Vertical) | ||||||
| Best Viewing Distance | ≥4m | ||||||
| Gray Grade | 14 bit | ||||||
| Display Color | 4.4 trillion colors | ||||||
| Brightness Adjustment | 100 grades by software or automatically by sensor | ||||||
| Max. Power Consumption | 46W | ||||||
| Control System | |||||||
| Frame Frequency | 60Hz | ||||||
| Refresh Frequency | ≥1920Hz | ||||||
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI | ||||||
| Control Distance | 100m(Ethernet cable); | ||||||
| 20KM(optical fiber cable) | |||||||
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 | ||||||
| Color Temperature | 5000—9300 adjustable | ||||||
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet | ||||||
| Reliability | |||||||
| Working Temperature | -20～+60 ºC | ||||||
| Storage Temperature | -30～+70 ºC | ||||||
| Working Humidity | 10%～90% RH | ||||||
| Lifetime | 100,000 hours | ||||||
| MTBF | 5000 hours | ||||||
| Continuous Operating Time | ≥72 hours | ||||||
| Protection Grade | IP65 | ||||||
| Out-of-Control Pixel Rate | ≤0.01% | ||||||
