Description

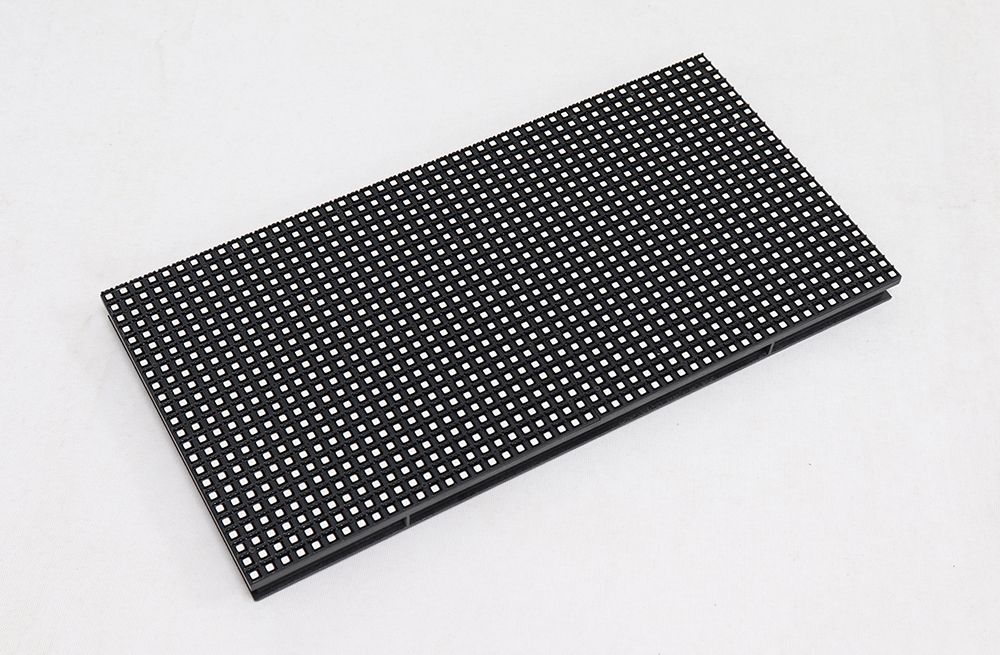

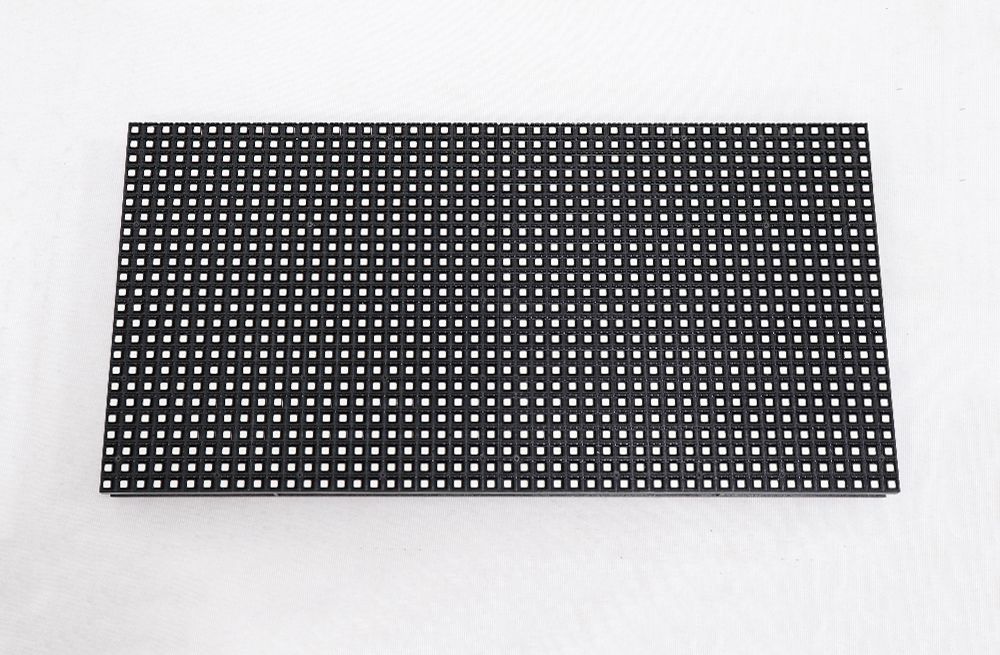

P6.67 Outdoor SMD LED display screen Module Features:
1) Small pixel pitch 6.67mm for SMD outdoor LED screen, good solution for outdoor Rental LED Screen and outdoor fixed installation LED display.
2) The module size is 320x160mm, which is of our standard 320x160 module series. It is convenient for clients to promote it. What is more,users can update their old LED screen made of our standard modules easily.
3) Top quality Kinglight SMD2525 LED lamps, ensuring the performance of the LED screen.

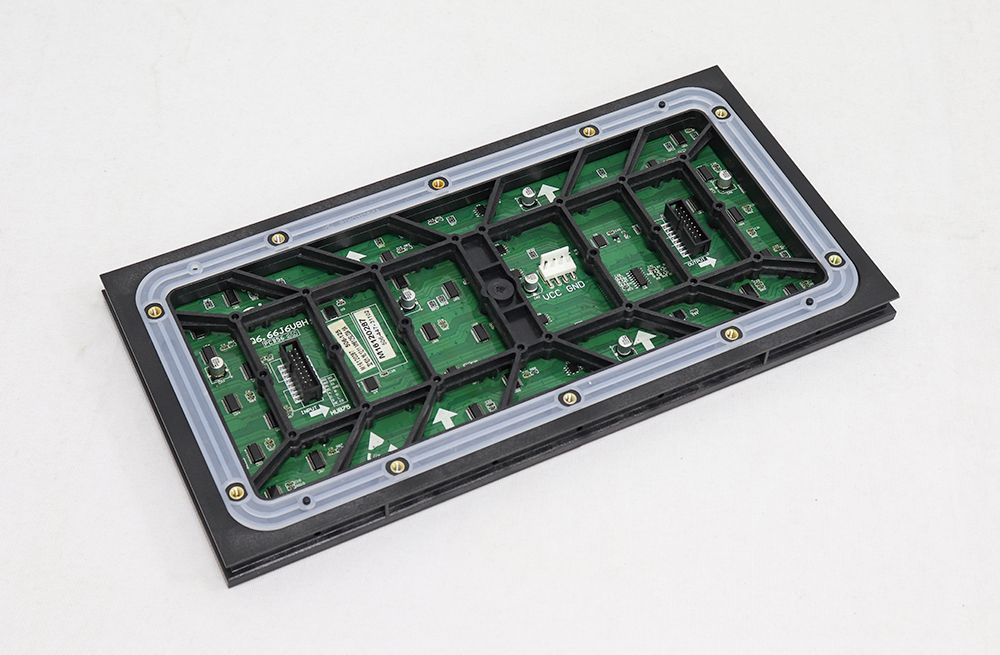

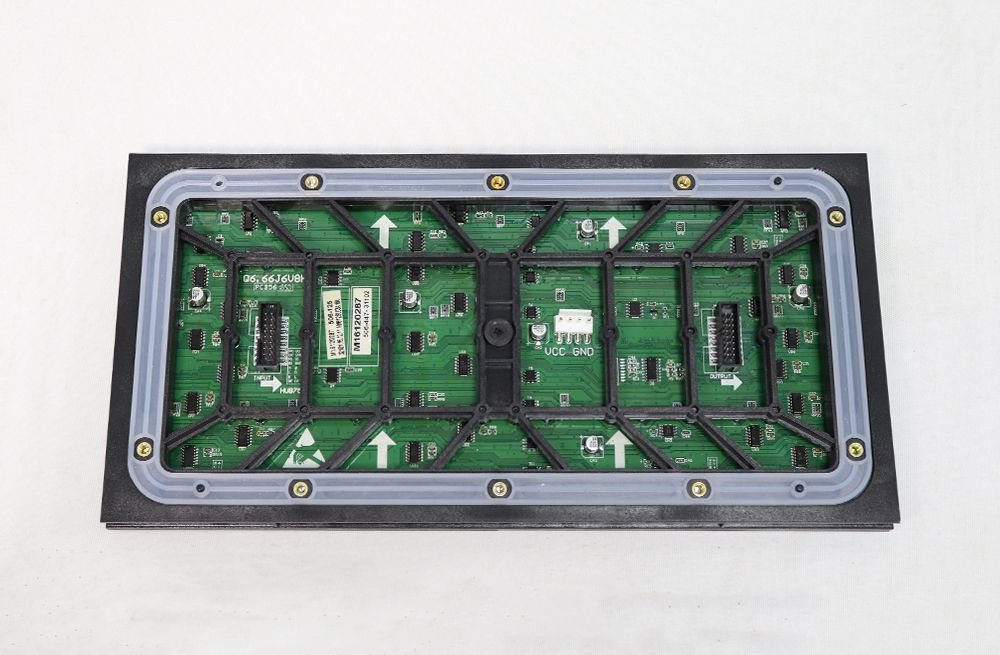

4) Reasonable PCB design with good heat radiation and achieve long life span.
P6.67 Outdoor SMD LED display screen Module Parameters:
|
Item |
Specification |
Remark |
|
LED type |
SMD2525 |
|
|
Pixel pitch |
6.67mm |
|
|
Pixel configuration |
1R1G1B |
|
|
Module Size |
320x160mm |
|
|
Module resolution |
48x24pixels |
|
|
Density |
22,497 pixels/㎡ |
|
|
Driving Mode |
1/6 duty |
|
|
Brightness |
≥5300CD/㎡ |
|
|
Viewing angle |
H:120°,V:120° |
|
|
Best view distance |
≥6.5m |
|
|
Driving IC |
General driver IC |
|
|
Working voltage |
5V |
|
|
Power consumption |
30W |
|
|
Weight |
0.6KG |
|
|
Protection grade |
Front: IP65 |
|
|
Working Temperature |
-20～60℃ |
|
|
HUB card |
HUB75 |
|
