Description
VSP 168HD is a 4 inputs seamless switcher and scaler. VSP 168HD supports all common video and graphic inputs, including CVBS, VGA, DVI, SDI (Option). VSP 168HD meets high end presentation requirement as its qualified image quality and advanced video processing ability, take multiple cascade mapping for example. VSP 168HD supports following main functions: max output resolution up to 2048×1152 or 2560×816, quick user config scale operation, seamless switching for the inputs, auto input detect, multiple cascade mapping. In addition, VSP 168HD use fiber and HDBaseT output interface, and connect to LED Display via extender, which is especially suitable for the applications that need high quality, long distance transmission and high resolution image. VSP 168HD supports RS232 control and USB port upgrade. And through embedded high quality image processing functions, and format conversion function, VSP 168HD provides the high stability of working hours.

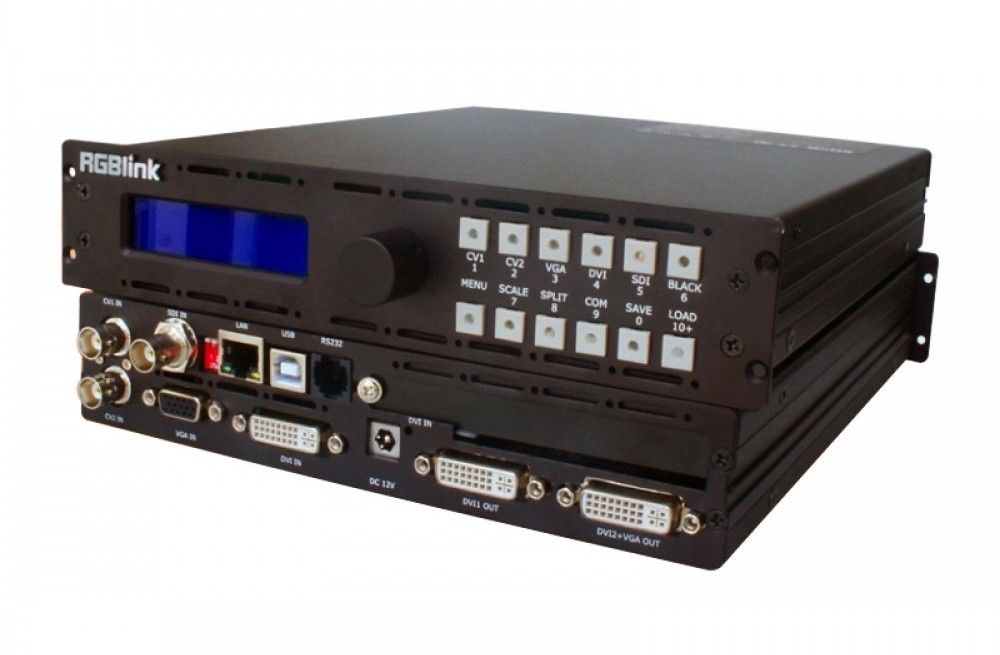

RGBLink VSP168HD LED Video Processor Parameters:
|
|
VSP 168S |
VSP 168HD |
|
Input |
1 x CVBS |
1 x CVBS |
|
1 x VGA (YPbPr compatible) |
1 x VGA (YPbPr compatible) |
|
|
1 x HDMI (DVI compatible) |
1 x HDMI (DVI compatible ) |
|
|
1 x SDI (3G-SDI, S module) |
1 x SDI (3G-SDI, S module) |
|
|
Output |
2 x DVI |
2 x DVI |
|
1 x VGA (Via DVI2+VGA OUT port) |
1 x VGA (Via DVI2+VGA OUT port) |
|
|
|
1 x SDI |
|
|
1 x Fiber |
||
|
1 x HDBaseT |
||
|
Operations |
Local front panel operation |
|
|
Remote RS232 control |
||
|
Net Size |
219mmx250mmx45mm |
|
|
Package size |
535mmx355mmx130mm(Two) |
|
|
Net weight |
1.4kg |
|
|
Package Weight |
2.9kg |
|
|
Work Temperature |
0°C~40°C |
|
|
Relative Humidity |
10%~85% |
|
