Description
Support bilingual menu of both English and Chinese
Support PIP display
Supports 12 seamless switching mode
Support image scaling and image coordinate shift functions
Support fade in/out and fading time is optional
Support self-test function
Support multi saving mode
Supported resolution range: 800x600x60 to1920x1080x60
Multi modes support 1 distribute to 4, horizontal 1 zoom to 2, vertical 1 zoom to 2, horizontal 1 zoom to 4 and so on.

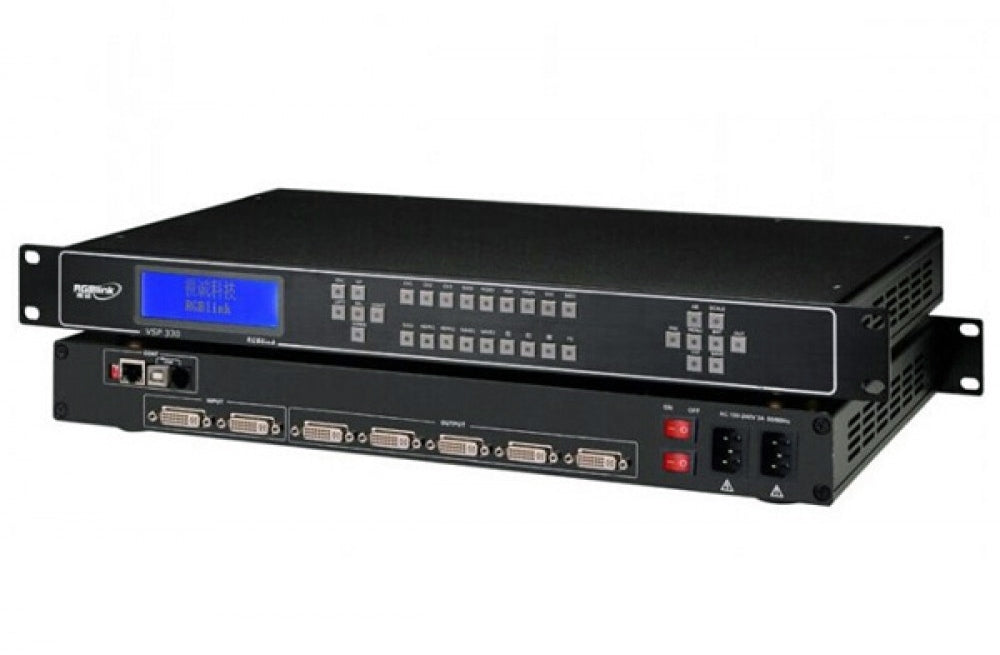

Specifications of RGBLink VSP330 HD LED Video Processor:
|
VIDEO INPUT |
|
|
Quantity/signal type |
2 Graphic DVI and HDTV DVI |
|
Connector |
2 DVI-I |
|
Nominal level |
TMDS level |
|
Standard |
HDMI 1.3 |
|
Impedance |
75ohm |
|
Horizontal Frequency |
auto detect 15kHz to 100kHz |
|
Vertical Frequency |
auto detect 50Hz to 120Hz |
|
Resolution Range |
auto detect 640×480 to 1600×1200 |
|
VIDEO PROCESSING |
|
|
Encoder (scan converted output) |
10 bit digital |
|
Digital sampling(program and preview outputs) |
30 bit;10 bits per color; 165MHZ standard |
|
Colors(program and preview outputs |
16.78 million |
|
Horizontal Filtering(scan converted output) |
3 levels |
|
Vertical Filtering(scan converted output) |
3 levels |
|
Encoder Filtering(scan converted output) |
3 levels |
|
VIDEO OUTPUT |
|
|
Quantity/signal type |
4 DVI,1 loop DVI output |
|
Connector |
5 DVI-I |
|
Nominal level |
TMDS level |
|
Impedance |
75 ohms |
|
CONTROL |
|
|
Front panel operation |
|
|
TCP/IP、USB、RS232 |
|
|
GENERAL |
|
|
Temperation |
0℃-40℃ |
|
Humidity |
10%-85% |
|
Enclosure Type |
1U Rackmount |
|
Enclosure Dimensions |
480mm*268mm*44mm |
