Sysolution Y12 supports -40℃ to 95℃ operation, comes with sixteen hub75 ports, no need to receive the card directly with the screen; supports access to the cloud platform release, easy to achieve the display off-site cluster control; hardware and software design fully consider the user deployment, operation and maintenance scenarios。

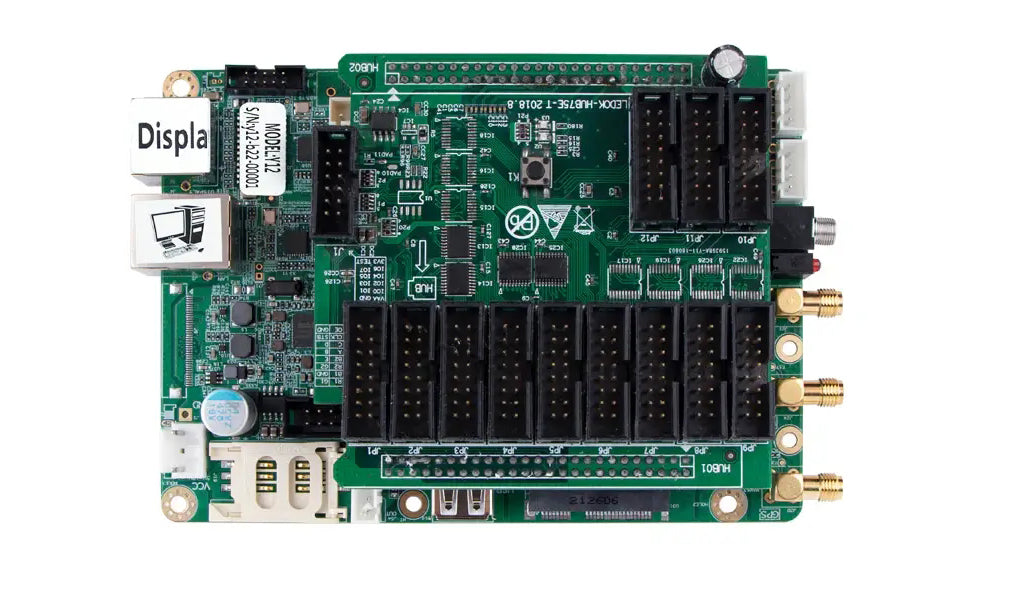

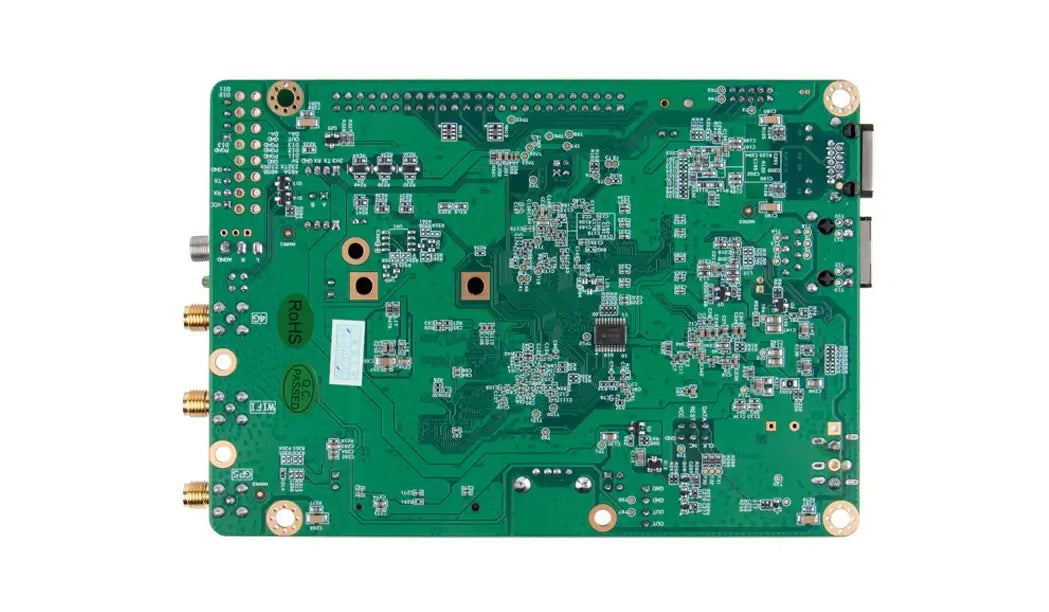

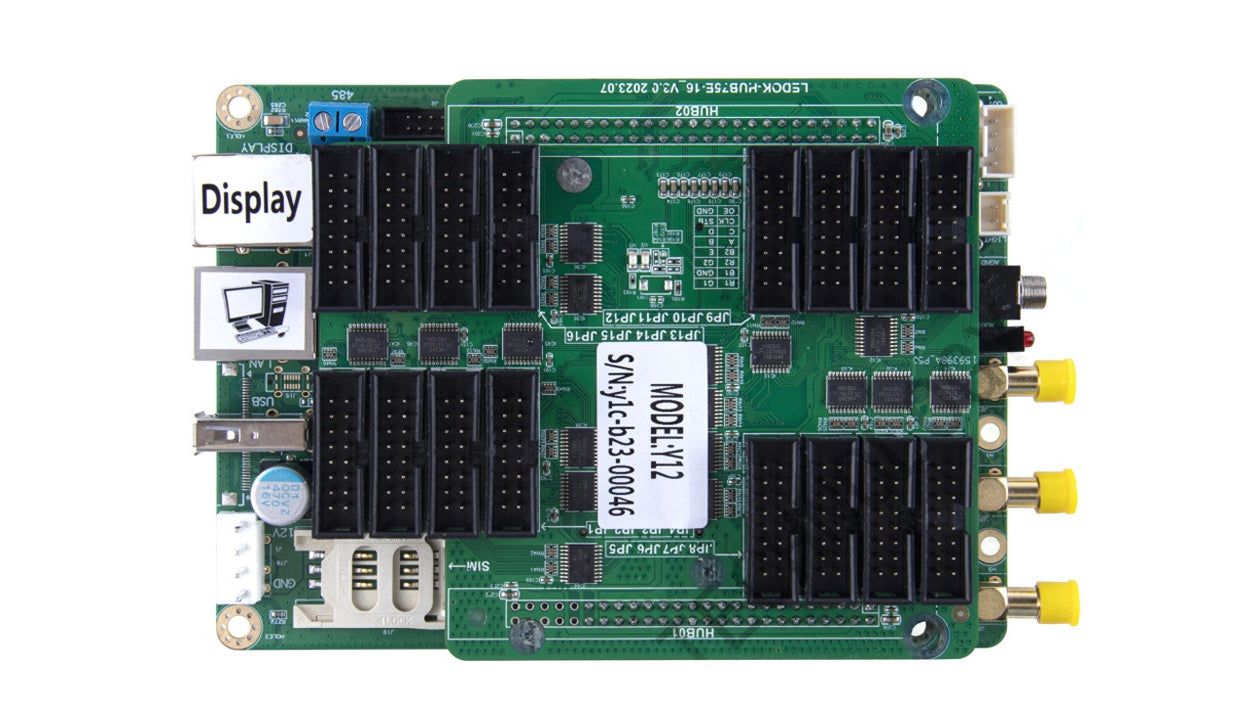

Sysolution Android Y12 LED Screen Control Card features:

1.12-16 hub75 ports direct output to ensure stability of picture transmission.

2. Support for external eight-element environmental sensor R68 via 485 interface to display environmental information without secondary development.

3. Support for external GPS positioning and timekeeping modules to ensure synchronisation of multi-screen picture playback.

4. Support for two remote power cuts, one to control the screen switch and one to control the street light switch.

5. Support optional 4G module, the module model varies from country to country, please provide the country of use for shipment.

6. On-board WiFi module for wireless communication.

7. Support for AP mode, Station mode.

8. Support for secondary development and remote cluster control on cloud platforms.

9. Built-in Web Sever, supporting local webpage production, programme distribution and display control for PC, mobile phones, pads and other user terminals, remote programme distribution and display control for clusters, remote monitoring of screen status for clusters.

10. Powerful processing performance with a 4-core processor at 1.5GHz, support for 1080P video hard decoding and 1GB of running memory.

11. 8 GB of internal storage space, with 4 GB available to the user.

12. The user terminal connects to the Y12's own WiFi hotspot, with the default SSID "SN .

13. number" and the default password "12345678".

14. Support for GPS timing/time alignment.

15. Automatic adjustment of the display brightness, which requires a matching brightness sensor.

16. Support for playing programme by way of programme lists.

17. Centralised setting of timer on/off, volume and brightness through the management system.

18. Support for USB cameras.

19. Support for NTP accurate automatic time calibration.

20. Supporting software: AIPS 4.0 cloud publishing platform, PC software LedOK Express, mobile APP: LedOK Kit.

Specification Download:

Sysolution Android Y12 LED Screen Control Card Specification
