Description
Support for FCC, CE certification.
On-board WiFi module for wireless communication; supports AP mode and Station mode.
Video hard decoding, supporting 1080p.
Support for secondary development and remote cluster control on cloud platforms.
Built-in Web Server, support for local web page production, support for computer, iphone, android mobile phone, tablet stand-alone program editor, cross-platform system compatibility
Supports full-color static to 32-sweep modules.
Conventional chips with high refresh, high brightness, and high grayscale; full chip support: full series of driver ICs from Jujik, Jichuang Beifang, Risun, and Ming Yang are supported.
Industrial-grade onboard Flash: 8GB; highly integrated.
Support USB camera

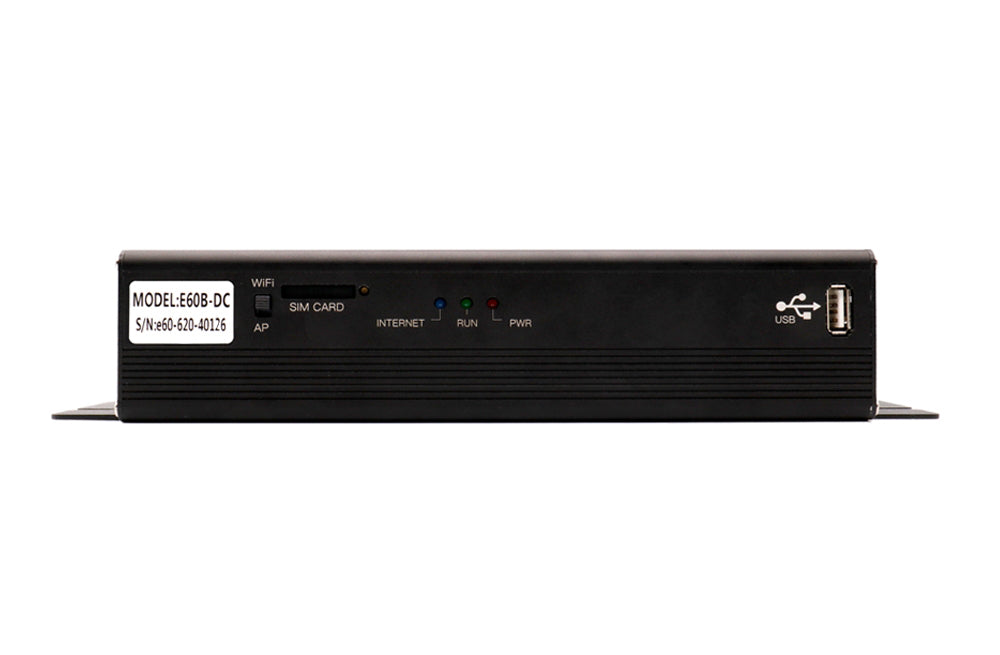

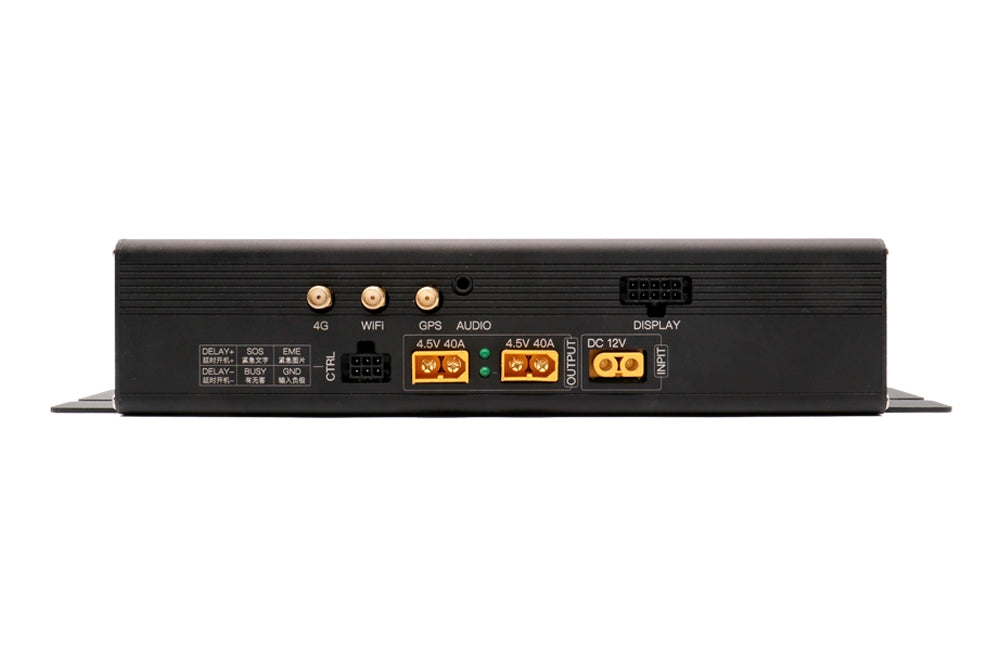

Sysolution E60B-DC 4G&Wi-Fi Internet LED Display Controller Parameter:
| Type | E60B-DC |
| Pixel | 1280*720 |
| Connect | Internet、4G、WiFi、U disk |
| CPU | Quad-core A7（32bit）4 Core1.1GHz |
| GPU | A307 409.6MHz |
| RAM | 8GB Emmc+1GB LPDDR3 |
| OS | Android 5.1 |
| WiFi | IEEE 802.11b/g/n 2.4G |
| GPS | GNSS GPS/Beidou/Glonass |
| Bluetooth | Bluetooth BT4.1 |
| 3G/4G Frequency band | -China（中国）FDD-LTE:B1/3、-LTE:B38/39/40/41、TDSCDMA:B34/39、:B1/8、CDMA 1X/EVDO:BC0、GSM:B3/5/8 |
| -North America（北美）、FDD-LTE:B2/4/5/7/12/13/17、WCDMA: B2/4/5 | |
| Eurasia（欧亚、中东）FDD-LTE:B1/3/5/7/8/20、TDD-LTE:B38/40/41、WCDMA:B1/5/8、GSM:B3/5/8 | |
| Latin America（拉美、澳洲、台湾）FDD-LTE:B1/3/5/7/8/28、TDD-LTE:B40、WCDMA:B1/2/5/8、GSM:B2/3/5/8 | |
| Audio | support |
| Camera | support |
| Weather forecast | support |
| Readback of display contents | support |
| Software | LedOK Express |
Specification Download:
Sysolution E60B-DC 4G&Wi-Fi Internet LED Display Controller Specification
