Description

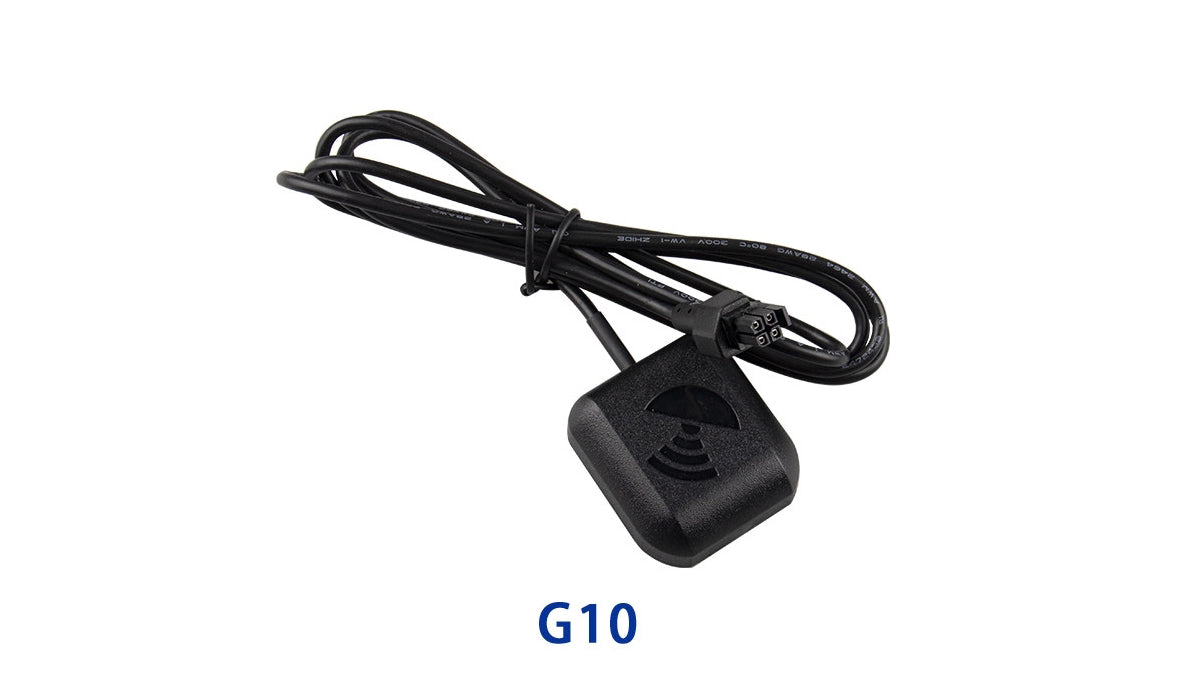

G10 is a complete GPS&GLONASS&Galileo&QZSS engine module that features super sensitivity, ultra low power and small form factor. The GPS&GLONASS&Galileo& QZSS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.
Its – 165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS&GLONASS&Galileo&QZSS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like DVR,UVA,Car trackers and PNDs.
| Type | Parameter | |||
| Main chip | MTK 3333 | |||
| Track sensitivity | -165dBm | |||
| Time to First Fix | Extremely fast at low signal level | |||
| Built in high LNA | YES | |||
| Power consumption | Max 40mA@3.3V | |||
| Protocol | NMEA-0183 compliant protocol or custom protocol | |||
| Operating temperature | -40 to 85C | |||
| Operating voltage | 3.0V to 5.0V | |||
| Module type | UART/TTL | |||
| Size | 45x38x13mm | |||
| Certification | RoHS compliant(Lead-free) | |||
| Power Supply | Supply voltage:3.0V~5.0V Typical : 3.3V | |||
| Power Consumption |
Acquisition:45mA @VCC=VBAT=3.3V Tracking:40mA @VCC=VBAT=3.3V Standby:2.0mA @VCC=VBAT=3.3V Backup:20uA @VBAT=3.3V |
|||
| Receiver Type | Code 66 search channels, 22 synchronous tracking channels GPS&&QZSS L1 1575.42MHz C/A,GLONASS L1OF 1602MHz,GALILEO E1B/C1, GLONASS L1OF 1602MHz, SBAS: WAAS, EGNOS, MSAS, GAGAN | |||
| Sensitivity |
Tracking: - 165d Bm Re-acquisition:- 156d Bm Acquisition:- 148d Bm |
|||
| TTFF (EASY enabled) |
Cold start :15s typ @- 130d Bm Warm start : 5s typ @- 130d Bm Hot start :1s typ @- 130d Bm |
|||
| TTFF (EASY disabled) |
Cold start(Autonomous):35s typ @- 130d Bm Warm start (Autonomous) :30s typ @- 130d Bm Hot start (Autonomous) :1styp @- 130d Bm |
|||
|
Horizontal Position Accuracy (Autonomous) |
<2.5m CEP @- 130 dBm | |||
| Max Update Rate | Up to 10Hz, 1Hz by fault | |||
| Accuracy of 1PPS Signal | not enabled | |||
| Acceleration Accuracy | Without aid: 0.1m/s2 | |||
| Dynamic Performance |
Maximum altitude: 18,000m Maximum velocity: 515m/s Acceleration: 4G |
|||
| UART Port |
UART Port : TXD and RXD Supports baud rate from 4800bps to 115200bps, 9600bps by default UART port is used for NMEA output, MTK proprietary commands input and firmware upgrade |
|||
| Temperature Range |
Normal operation: -40°C ~ +85°C Storage temperature: -45°C ~ +125°C |
|||
|
Physical Characteristics |
Size: 45±0.20 × 38±0.20 ×13±0.50mm Connecting line specifications:Molex 2*2Pin , L= 130CM Weight: Approx. 98g |
|||
