Description

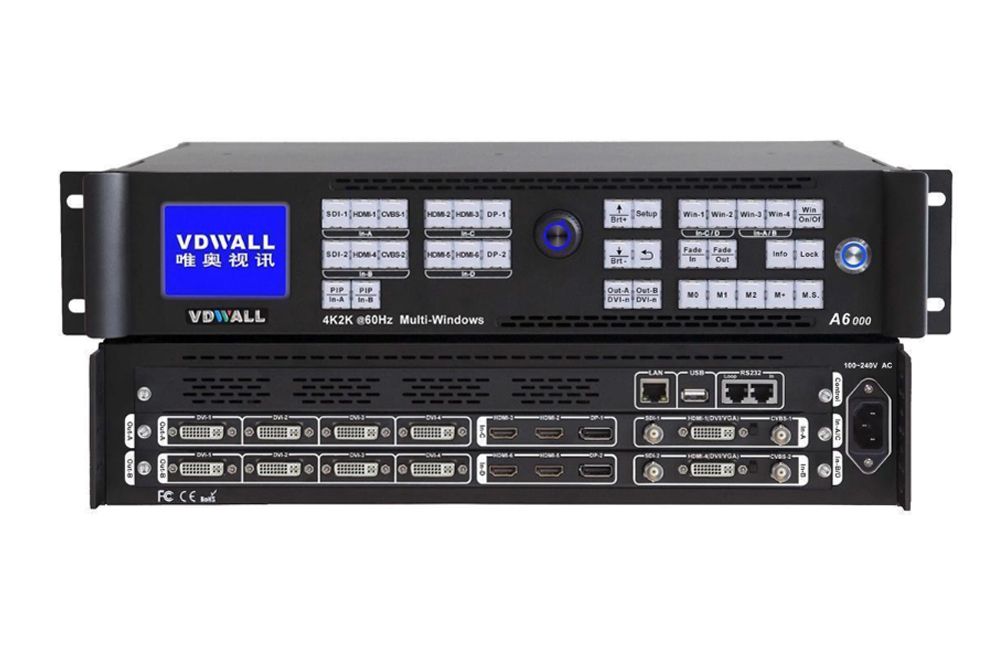

VDWall A6000 4K HD Multi-window Video Processor Inputs
- 12 input ports, support mixed SD(Standard Definition)、HD(High Definition)、UHD(Ultra High-Definition) input
- 6 UHD Inputs@ 4K2K_60Hz, maximum resolution up to 4096×2160@60Hz, including HDMI2.0 × 4 DP1.2 × 2
- Seamless switching between different inputs, no black, splash, jitters
VDWall A6000 4K HD Multi-window Video Processor Multi-window Processing
- 4k -4 windows 6 images display, random zoom in/out and overlay display
- 4K seamless switching and Fade-in / Fade-out switching
- Any in any out(AIAO) 4K image crop
- Accurate image quality adjustment
- Image frame function, clearly identify different layer
- 16 preset display modes, seamless mode switching without black screen or blurred screen
VDWall A6000 4K HD Multi-window Video Processor Outputs
- Maximum 8 DVI outputs, synchronized joint split, driving capability up to 8K*2K
- Any size and position of cropped image
- Accurate image quality adjustment realize uniform color of different screen batches
- 16 preset display modes, conveniently save/load
- Adaptive calculation aided splicing, auto calculate mosaic parameters according to the size and position of screen units
- User-defined output resolution, 8 Outputs reach to 17280 pixels in width or 12800 pixels in height. High efficient outputs utilization
VDWall A6000 4K HD Multi-window Video Processor Key Applications
- Real 4k display specialized for small pitches LED screen, LCD wall and projector splicing
- Designed for high-end occasions, such as stage performance, exhibition, convention hall, school auditorium, church, advertising, monitor and control center etc
Others
- Power on self test, convenient configuration data export and import
- Plug-in card design, customized input card and output card built in, convenient maintenance
- High stability and reliability, 7/24 operation
VDWall A6000 4K HD Multi-window Video Processor Parameter:
| Features of Input Signals | ||
| Quantity/Type | 4×HDMI 2.0（VESA/CEA-861） | |
| 2×DP1.2（VESA） | ||
| 2×CVBS | ||
|
2×DVI（VESA/CEA-861）compatible with HDMI1.3a/VGA |
||
| 2×SDI（SDI/HD-SDI/3G-SDI） | ||
| Composite Video Input SYS | PAL/NTSC | |
| Composite Video Amplitude Impedance | 1V（p_p）/ 75Ω | |
| VGA Format | PC（VESA） |
≤1920× 1200_60Hz |
| VGA Amplitude the impedance | R、G、B = 0.7 V（p_p）/ 75Ω | |
| DVI Format | PC（VESA） |
≤1920× 1200_60Hz |
| DMI Format（HDCP2.2） | PC（VESA） |
≤4096× 2160_60Hz |
|
HDMI2.0 （CEA-861） |
||
| DP Format（HDCP2.2） |
DisplayPort1.2 （VESA） |
≤4096× 2160_60Hz |
| SDI Format | SMPTE259M-C | 480i_60Hz |
| SMPTE 292M | 576i_50Hz | |
| SMPTE 274M/296M |
720p、 1080i、 1080p. |
|
| SMPTE 424M/425M | ||
| Input Interface | CVBS: BNC/ 75Ω | |
| DVI: 24+1 DVI_D | ||
|
HDMI： Type A-HDMI format |
||
| DP: DisplayPort1.2 | ||
| SDI: BNC/ 75Ω | ||
| Specification of Outputs | ||
| Quantity / Type | 8×DVI | |
| DVI Format |
1200x1600_60Hz、 1440x1440_60Hz、 |
|
|
1600x1344_60Hz、 1920×1080_60Hz、 2160x960_60Hz |
||
| Output Interface | DVI：24+1 DVI_D | |
| Others | ||
| Control Ports | RS232/USB/LAN | |
| Voltage of Input |
100-240VAC 50/60Hz |
|
| Max Power Consumption | 75W | |
| Ambient Temperature | 0-45℃ | |
|
Ambient Humidity |
15-85% | |
| Product Size | 482x465.5x89mm | |
| Package Size | 500x510x160mm | |
| Net Weight | 7.6KG | |
VDWall A6000 4K HD Multi-window Video Processor Key Applications - Real 4k display specialized for small pitches LED screen, LCD wall and projector splicing - Designed for high-end occasions, such as stage performance, exhibition, convention hall, school auditorium, church, advertising, monitor and control center etc.
Optinal modules: 4K input module(2xHDMI2.0, 1xDP1.2), 2K input module(1xCVBS, 1xDVI, 1xSDI), 4-DVI output module(4xDVI).
| Model |
Quantity of 4K input module |
Quantity of 2K input module |
Quantity of 4-DVI output module |
Remark |
| A6101 | 1 | 0 | 1 | 1image,4xDVI splicing |
| A6111 | 1 | 1 | 1 | 2 windows,3 images, 4xDVI splicing |
| A6121 | 1 | 2 | 1 | 3 windows,5 images, 4xDVI splicing |
| A6211 | 2 | 1 | 1 | 3 windwos,4 images, 4xDVI splicing |
| A6221 | 2 | 2 | 1 | 4 windows,6 images, 4xDVI splicing |
| A6122 | 1 | 2 | 2 | 3 windows,5 images, 8xDVI splicing |
| A6212 | 2 | 1 | 2 | 3 windows,4 images, 8xDVI splicing |
| A6222 | 2 | 2 | 2 | 4 windows,6 images, 8xDVI splicing |
