◆with 1 DVI input (compatible with HDMI_1.4b)
◆with CEA-861-D and VESA video specifications
◆with 4 RJ45 outputs, 2.03 million LED pixels loaded
output
◆1 channel stereo audio output
◆Seamless switching of input signals, no black screen, no screen flickering
video processing
◆Support Pa and Pb dual screen display
The Pa screen can be switched to display any input video
The Pb screen can switch to display any input video
Dual-picture PIP/POP, tiled and overlaid display at will, Pa / can be set arbitrarily within the resolution range Size and location of Pb
◆ Preset 8 ultra-wide and ultra-high output resolution formats
The maximum output width is 3296 points, or up to 1780 lines.
◆ Seamless switching of display scenes
16 sets of preset screen display scenes, seamless switching of display scenes
◆ Knob adjustment, quick setting
other
◆ USB to RS232 serial communication. Open protocol, supports host computer control



VDWALL LVP100M LED HD Processor Wiring diagram：

Download Specification：

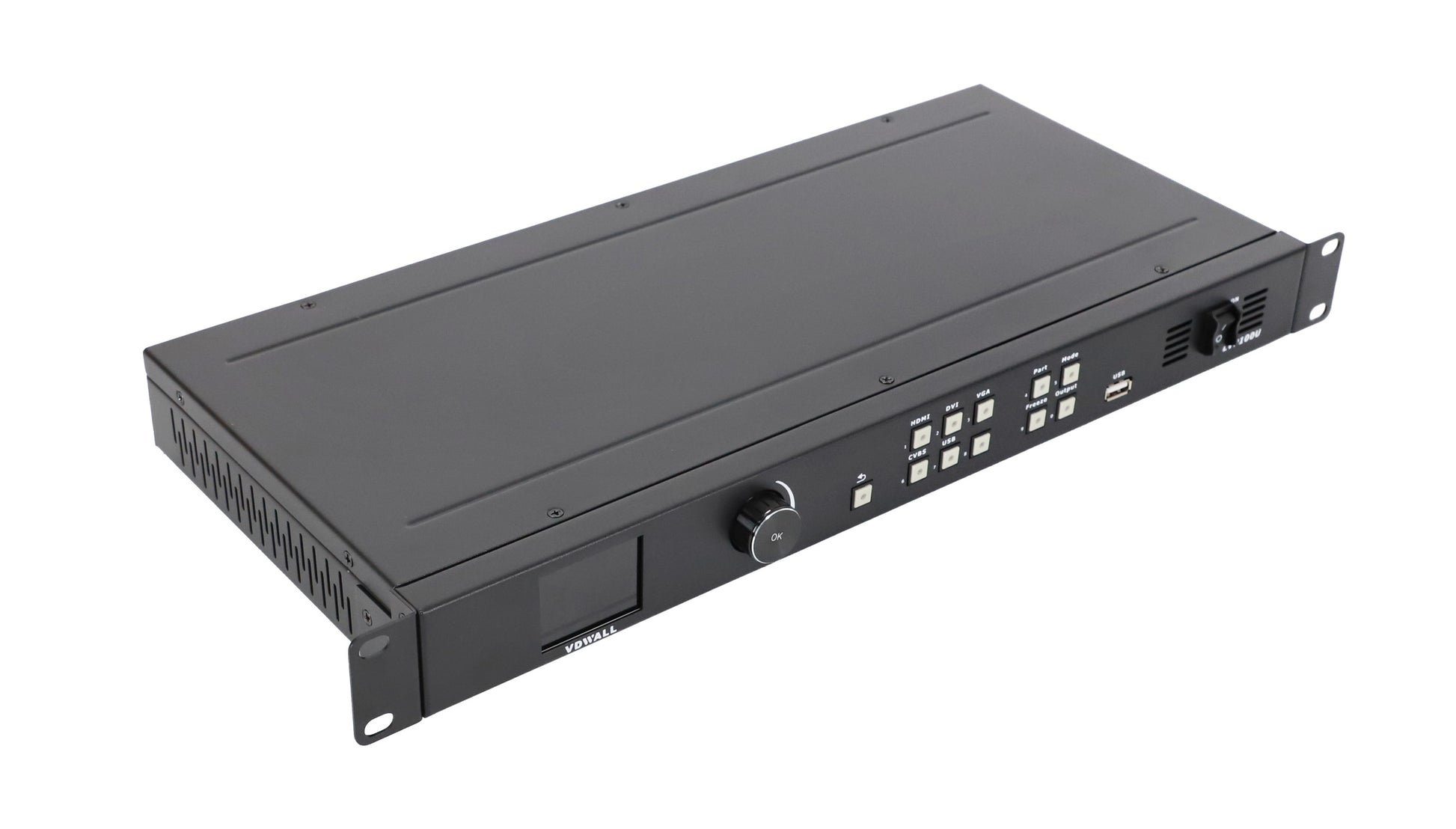

VDWall LVP100M LED Display Screen Processor
