Description
Support for secondary development:
LED Module Type: G30 Fullcolor;
LED Modules Interface Type: supports a variety of commonly used interface;
Maximum screen pixels: 80000;
Maximum pixels of hight: 256 pixels;
Communication interface: Supports Ethernet port, serial port communication (485);
The multi-window display: support, the biggest user can create 8 Independent window;
Program play type: support for single-line and multi-line text, pictures,flash;
Play effects; left, on the move, slide show mode;
Clock: support digital clock;
Timer playback: support;
Real-time playback: support;
Brightness adjustment: to support 0-10 of 11 brightness adjustment:
Timer switch screen: support;
Multi-console control: support

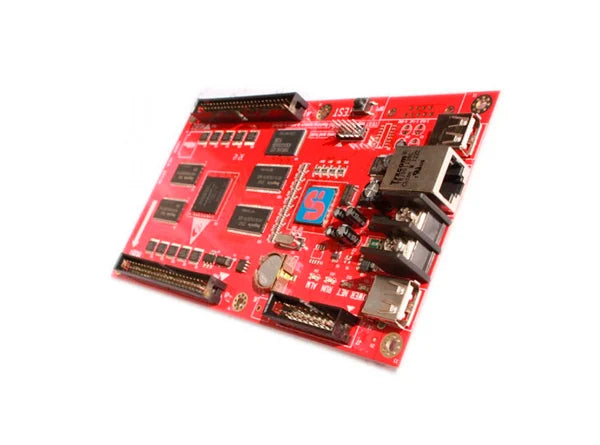

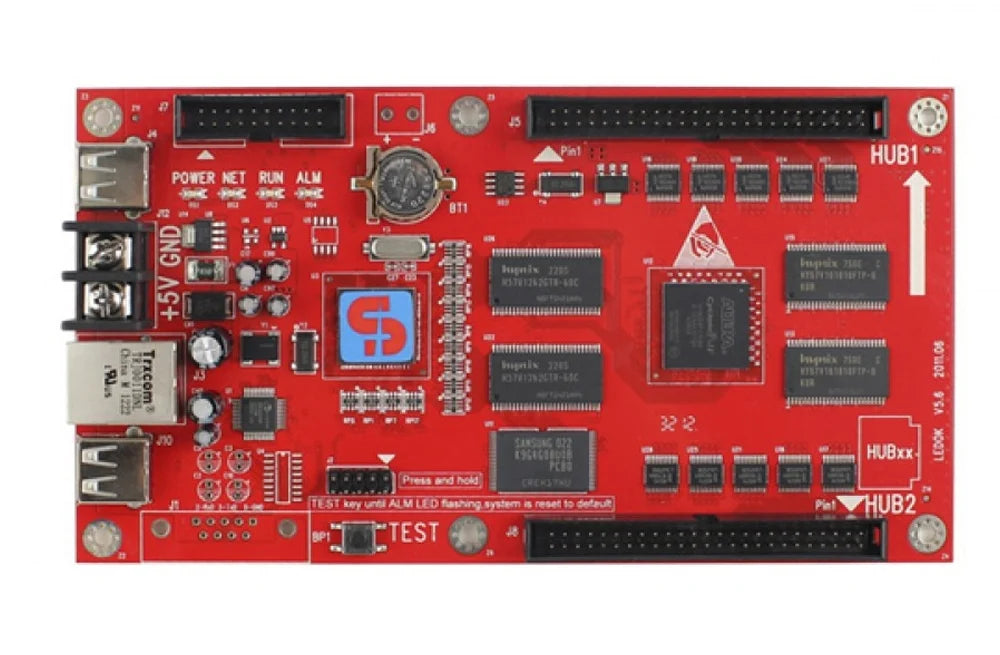

Specification of XIXUN G31 Asynchronous Engineering Full Color Controller:
|
CPU |
ARM9 |
|
Storage |
500MB |
|
Grey Level |
4096 |
|
G30 Pixels |
320×256 (Width x Height) |
|
Communication Interface |
serial port/network/U-disk |
|
Communication Type |
LAN/serial port (prepare to adding Internet, GPRS, 3G) |
|
LED module’s mode |
outdoor and indoor |
|
video format |
AVI,MP4,FLV,SWF (maximum resolution: 320×240) |
|
flash format |
GIF |
|
image format |
BMP,JPG,GIF,TIF |
|
display text |
single-line / multi-line |
|
sensor |
measure temperature and humidity, auto-measure brightness |
|
upgrade storage |
upgrade storage by U-disk |
|
Routine |
LED demo (VC,C#) |
|
Configuration software |
LEDset2.0 |
|
Stock |
in stock |
