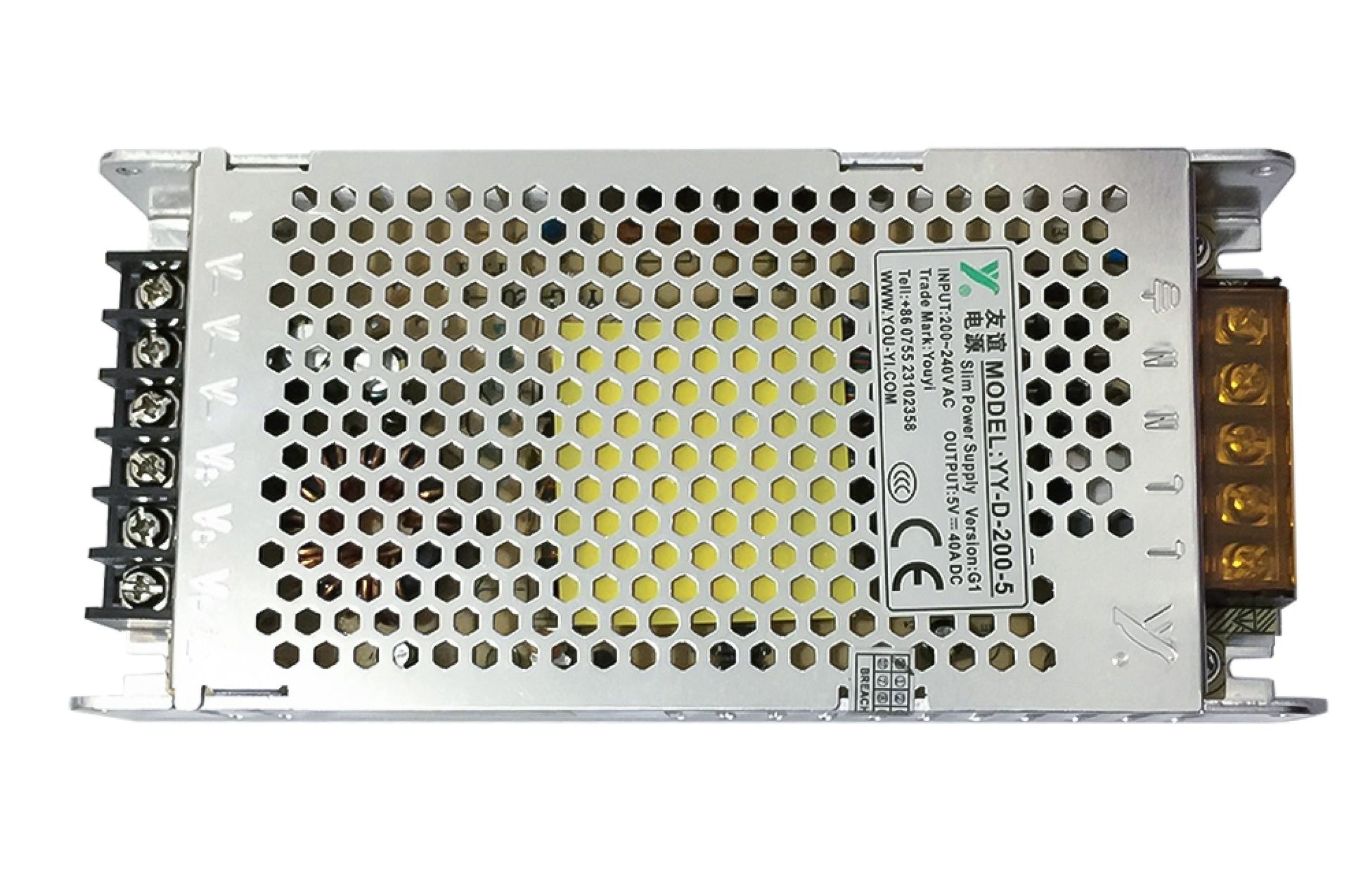

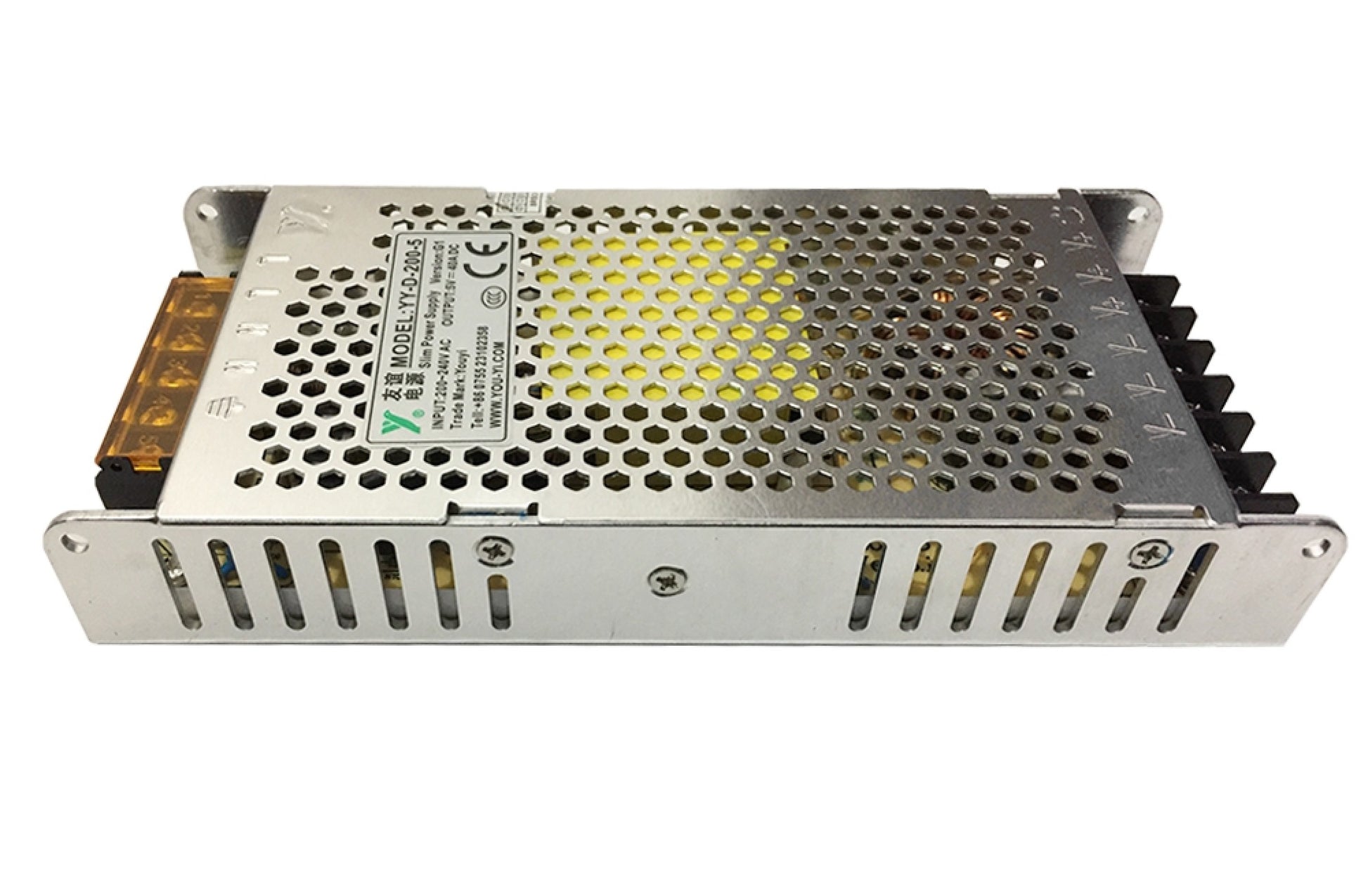

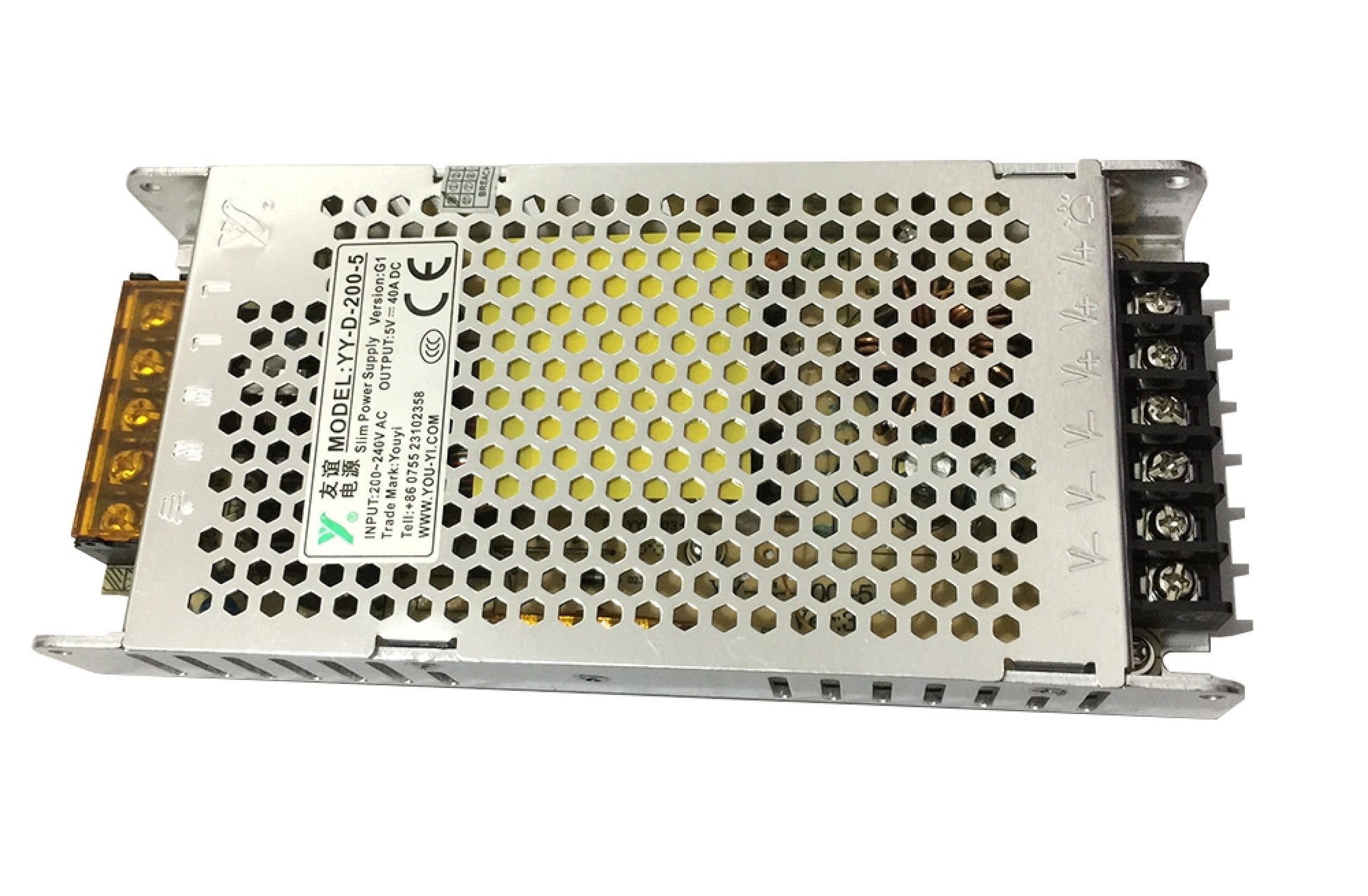

YOU-YI YY-D-200-5 LED Switch Power Supply

YOU-YI YY-D-200-5 LED Switch Power Supply

The power supply provide over voltage protection,over current protection,short circuit protection, overload protection.When the protection function is triggered, the power supply will be turned off automatically and after malfuction(cause the protection function) solved, the power supply will restart.

YOU-YI YY-D-200-5 LED Switch Power Supply Parameter:

MODEL

YY-D-200-5 V-G

OUTPUT

DC VOLTAGE

5V

RATED CURRENT

40A

CURRENT RANGE

0～40A

RATED POWER

200W

RIPPLE&NOISE

≤100mV

VOLTAE ADJ.RANGE

±1%

VOLTAGE TOLERANCE

±1%

LINE REGULATION

±0.5%

LOAD REGULATION

±2.0%

SET UP TIME

50mS

HOLD UP TIME

20mS

INPUT

VOLTAGE RANGE

200V～240V

FRE.RANGE

47Hz～63Hz

EFFICIENCY

88%

INRUSH CURRENT

≤40A

LEAKAGE CURRENT

≤2.0mA

PROTECTION

INPUT UNDERVOLTAGE

150V～170V

INPUT OVER VOLTAGE

270V～280V

INPUT OVER CURRENT

4A

OUTPUT OVER VOLTAGE

5.75V～7.5V(Re-start）

OUTPUT LIMIT CURRENT

61A～70A

OVER TEMPERATURE

105℃±5℃

THERMAL METHODS

Cooled by air

ENVIRONMENT

WORKING TEMP.

—30℃～+60℃

WORKING HUMIDITY

20～90%RH

STORAGE TEMP.,HUMDITY

—40℃～+80℃,10～95%RH

TEMP.COEFFICIENT

±0.03%/℃（0～50℃）

VIBRATION

10-300MHz,1G,10 min./1 cycle，

Period for 60min each axes.

SAFETY

SAFETY STANDARDS

GB4943、UL60950、EN60950

EMC STANDARDS

GB9254、EN55022A

WITHSTAND VOLTAGE

I/P-O/P:3KVAC/3mA/1min

I/P-FG:1.5KVAC/3mA/1min

O/P-FG:0.5KVAC/3mA/1min

ISOLATION RESISTANCE

I/P-O/P:100MΩmin/500VDC

CERTIFICATION

CQC/ CE/ CB/ ROHS/CCC

OTHERS

DIMENSION

210*62*31mm
$9.20 USD
$9.20 USD
Sale Sold out
Taxes included.

YOUYI-YY-D-200-5
View full details
